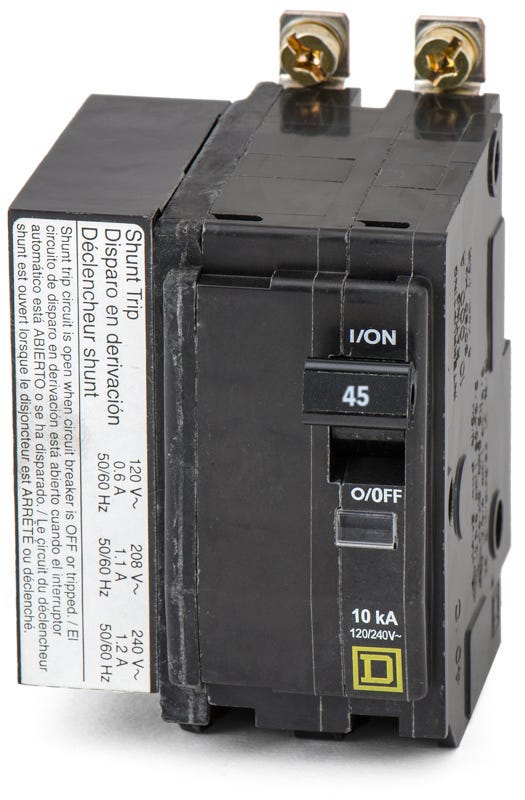

Square D QOB245-1021 2 Pole Circuit Breaker
Free Shipping Over $99

Square D QOB245-1021 QOB2451021 - 45A 2 Pole Miniature Circuit Breaker

  • 45A
  • 2 Pole
  • Bolt-On
Square D QOB245-1021
QOB2451021 - 45A 2 Pole Miniature Circuit Breaker
Brand Square D
SKU QOB245-1021
Select Item Condition
Earn 348 SuperPoints
  • 45A
  • 2 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Square D QOB245-1021 2 Pole Circuit Breaker

Square D QOB2451021 - 45A 2 Pole Miniature Circuit Breaker

New

$348.00 No Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 4.9 (212)

Description

Engineered for commercial and industrial applications, the Square D QOB245-1021 is a 2-pole miniature circuit breaker rated for 45 amps. It provides robust thermal-magnetic protection for electrical systems requiring remote tripping capabilities. This unit mounts into Square D NQ and NQOD panelboards, utilizing a secure bolt-on connection to ensure stable performance. Rated for 10 kAIC at 120/240VAC, this breaker features a factory-installed shunt trip and the signature Visi-Trip indicator.

Specifications

Key specifications
Brand Square D
Part Number QOB245-1021
Series QOB
Amperage 45A
Poles 2
Mounting Style Bolt-On
Voltage 120VAC, 120/240VAC, 48VDC
Phase 1
AIC Rating 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC
Fit and installation
Frame Type QOB
Terminal Type Box Lugs
For Use With NQ Panelboards, NQOD Panelboards
Wire Gauge 8-2 AWG (Al/Cu)
Max Wire 2 AWG
Min Wire 8 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Standards and features
Available Options Auxiliary Switch, Alarm Switch
Accessories Shunt Trip (Factory Installed), Load Side Lugs Included
Standards CSA C22.2 No. 5, UL 489, HACR
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Visual Trip Indicator

Product FAQs

5 answers
What does the 1021 suffix indicate on the QOB245-1021 breaker?

The 1021 suffix indicates that this breaker includes a factory-installed 120/240V AC shunt trip. This accessory allows the breaker to be opened remotely using a push-button, switch, or other pilot control device.

Which panelboards are compatible with the QOB245-1021?

This bolt-on circuit breaker is designed specifically for use in Square D NQ and NQOD series panelboards. It cannot be installed in standard QO load centers, which require plug-on style breakers.

How does the bolt-on mounting of the QOB245-1021 differ from standard QO breakers?

Unlike standard QO breakers that snap onto the busbar, the QOB245-1021 physically bolts directly to the panelboard bus. This provides a highly secure, vibration-resistant connection typically required in commercial and industrial applications.

What wire sizes are accepted by the terminals on the QOB245-1021?

The box lugs on this 45A breaker are designed to accept 8 AWG to 2 AWG copper or aluminum conductors. Ensure proper torque specifications are followed during installation.

Does the QOB245-1021 feature a tripped circuit indicator?

Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle moves to a center position and a bright red flag appears in the window for quick identification.
