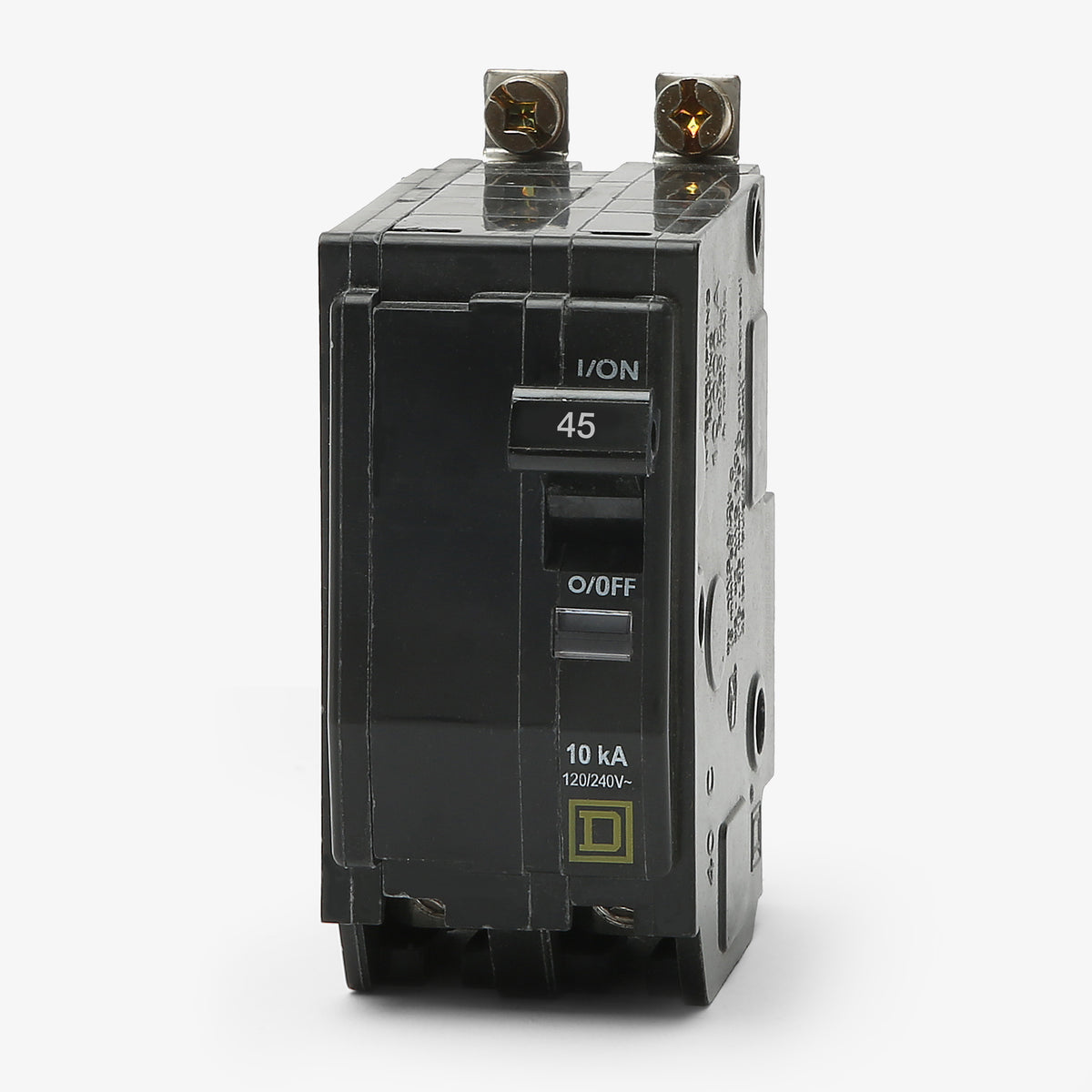

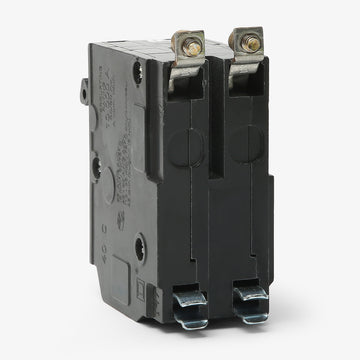

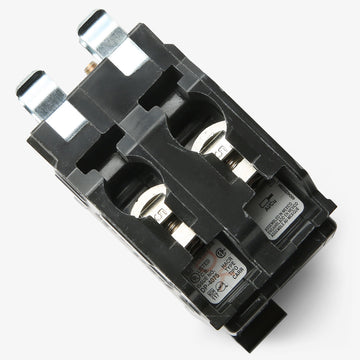

Square D QOB245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Square D
QOB245
Miniature Circuit Breaker
Brand
Square D
SKU
QOB245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB245 |
| Series | QOB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOB245 - 45A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB245-R |
| Series | QOB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
50A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Designed for commercial power distribution, the Square D QOB245 is a 45A, 2-pole miniature circuit breaker. It delivers reliable thermal-magnetic trip functions to safeguard circuits. This HACR-rated breaker installs into NQ and NQOD panelboards using a dependable bolt-on mounting style. The box lugs accept 8-2 AWG aluminum or copper wiring. Rated at 10 kAIC at 120/240VAC, it features a built-in Visi-Trip indicator to clearly flag tripped circuits and minimize downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB245 |
| Series | QOB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersCan I install the QOB245 in a standard residential QO load center?
No. The QOB245 features a bolt-on connection intended exclusively for commercial NQ and NQOD panelboards. Standard QO residential load centers require plug-on breakers.
Can I use the QO245 as a direct replacement for the QOB245?
No. While both breakers share similar thermal-magnetic protection and electrical ratings, the QO245 is a plug-on breaker. The QOB245 is specifically designed with a bolt-on connection for securing to the bus in commercial panelboards.
Is the QOB245 circuit breaker rated for use with HVAC equipment?
Yes. This breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require this specific classification.

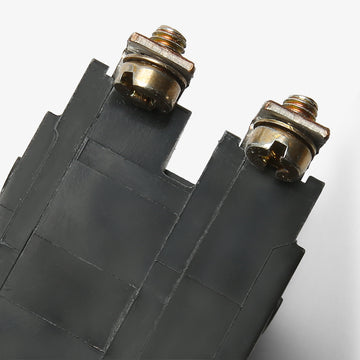

What is the recommended tightening torque for the wire terminals on the QOB245?
The recommended tightening torque for the box lugs is 44.3 lb-in (5 N.m) when securing 8 to 2 AWG copper or aluminum wiring.
How can I visually verify if the QOB245 has tripped?
This breaker is equipped with a Visi-Trip indicator. When the breaker trips, a bright red flag appears in the indicator window to easily identify the faulted circuit.
How much physical space does the QOB245 require in a panelboard?
Because the QOB series uses a compact footprint, this 2-pole breaker requires two standard 3/4-inch panel spaces.
What is an alternate catalog number for the Square D QOB245?
This circuit breaker is also recognized by the industrial distributor cross-reference number 2DM72.
