Square D QOB250GFI GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Square D
QOB250GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB250GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

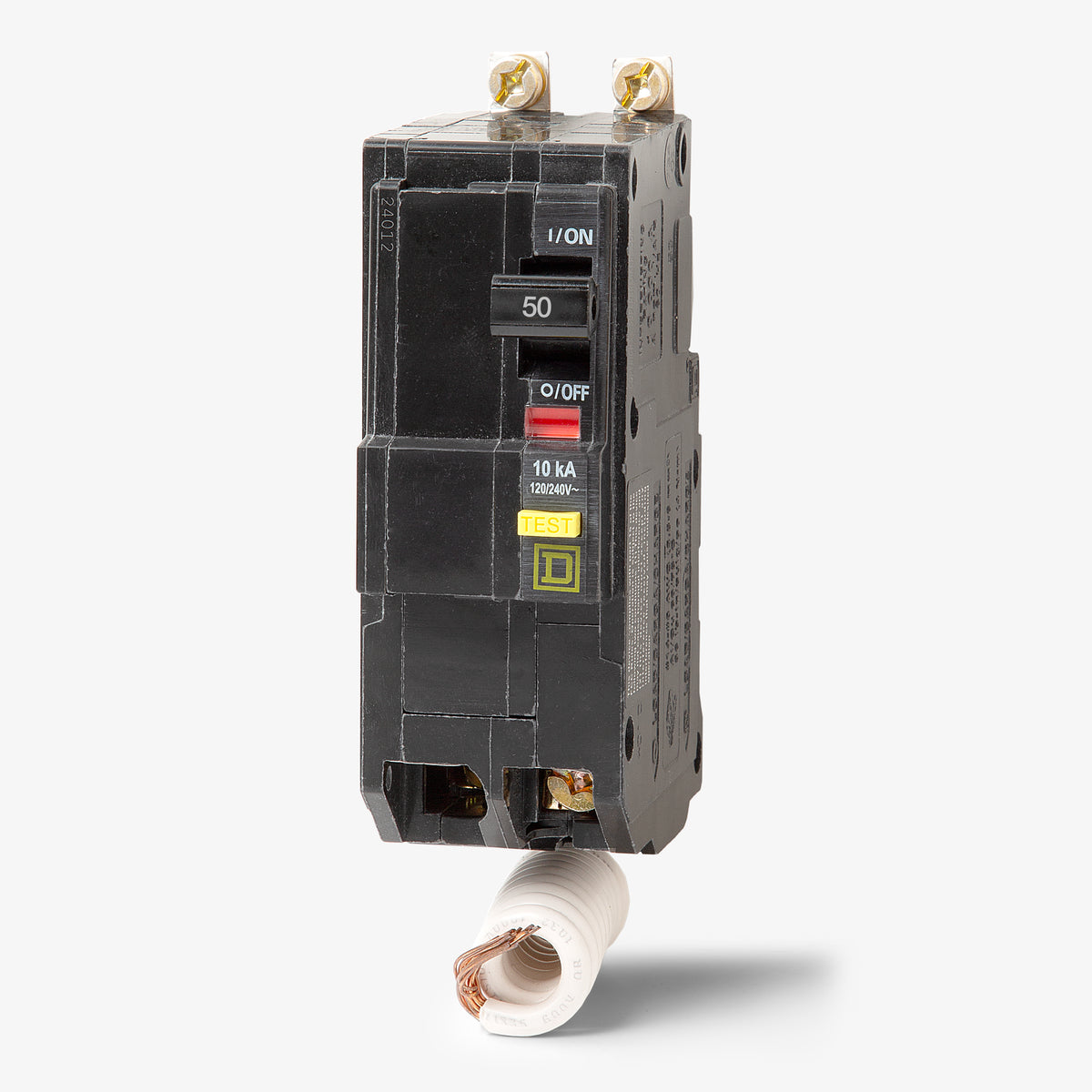

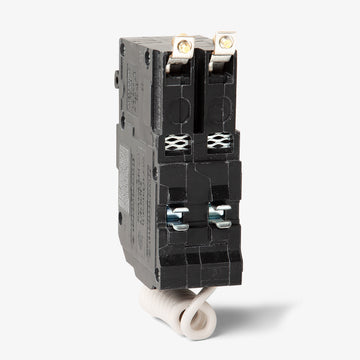

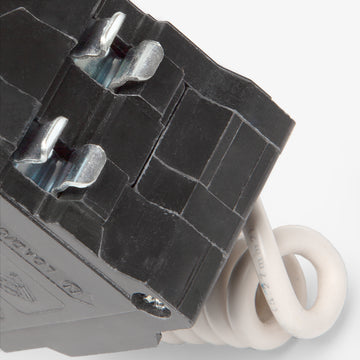

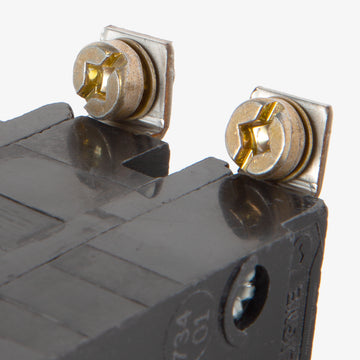

Square D QOB250GFI - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
I - 60A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Part of the QO family, this 50A two-pole breaker delivers Class A 6mA ground fault protection for commercial and industrial environments. It operates at 120/240VAC with a 10kAIC interrupting capacity, utilizing reliable thermal-magnetic trip technology. Designed specifically for Square D NQ and NQOD panelboards, it utilizes a bolt-on mounting style for secure installation. It accepts 14-6 AWG copper or 12-4 AWG aluminum wiring via standard box lugs.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersCan I install the QOB250GFI in a standard residential QO load center?
No. The QOB250GFI features a bolt-on mounting configuration designed specifically for NQ and NQOD panelboards. Standard residential QO load centers require plug-on style circuit breakers.
How do I wire this breaker for a straight 240V load that does not use a neutral wire?
You can supply a straight 240V load by terminating the two hot wires on the breaker and leaving the load neutral terminal empty. However, the breaker's white pigtail wire must still be connected to the panel neutral bus bar to power the internal GFCI circuitry.
Where does the attached white pigtail wire connect during installation?
The coiled white pigtail wire must be routed and connected directly to the neutral bus bar within the panelboard. This connection is mandatory for the GFCI sensor and the push-to-test functions to operate correctly.
How many panel spaces are required to mount this breaker?
The QOB250GFI is a 2-pole circuit breaker that requires two standard 3/4-inch spaces on the panelboard bus.
What is the ground-fault trip sensitivity of this breaker?
This breaker provides Class A ground-fault protection. It is designed to trip when it detects a ground-fault current between 4 and 6 milliamps, which is the standard threshold for personnel protection against electric shock.
Does the QOB250GFI provide combined AFCI and GFCI protection?
No. This unit is a dedicated Ground Fault Circuit Interrupter (GFCI). It provides standard thermal-magnetic overcurrent protection and ground-fault protection, but it does not include Arc Fault Circuit Interrupter (AFCI) functionality.
