Square D QOB260GF I - 60A GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Square D
QOB260GF
I - 60A GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB260GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB260GFI - 60A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB260GFI - 60A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB260GF |
| Series | QOB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOB260GFI - 60A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB260GF-R |
| Series | QOB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
50A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description

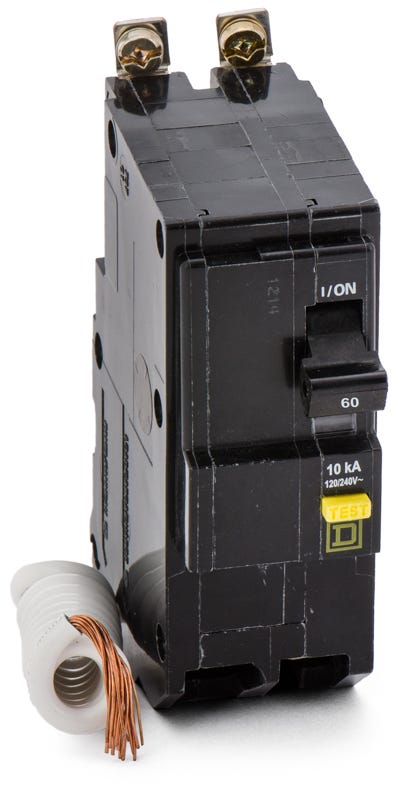

Built for commercial applications, the Square D QOB260GF is a 2-pole, 60A miniature circuit breaker with ground fault protection. It operates at 120/240VAC and includes a pigtail neutral. This unit mounts securely into Square D NQ and NQOD panelboards, accepting 14-6 AWG copper wire via box lugs. Rated for 10kAIC, it features a Visi-Trip indicator to clearly show tripped status. It provides 6mA ground fault protection to meet NEC requirements for wet locations.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB260GF |
| Series | QOB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QOB260GF?
This bolt-on circuit breaker is designed exclusively for Square D NQ and NQOD panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
What level of ground fault protection does this breaker provide?
The QOB260GF delivers Class A ground fault protection. It is designed to trip when it detects a ground fault current of 4 to 6 milliamps, providing personnel protection against electrical shock.
How is the neutral connection established for the GFCI function?
This breaker includes a factory-installed pigtail neutral wire. The pigtail must be routed and secured to the neutral bar in the panelboard to power the internal ground fault circuitry.
Are QOB260GF and QOB260GFI the exact same breaker?
Yes. The I at the end of QOB260GFI simply stands for Interrupter. Both part numbers refer to the same 60A bolt-on GFCI breaker.
How many panel spaces does the QOB260GF occupy?
As a 2-pole miniature circuit breaker, it requires two standard spaces in an NQ or NQOD panelboard.
Does this breaker include a tripped circuit indicator?
Yes, it features the standard Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or ground fault, a red indicator appears in the window for fast identification.
