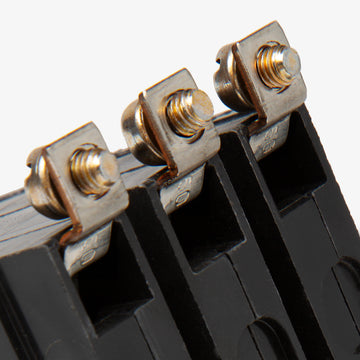

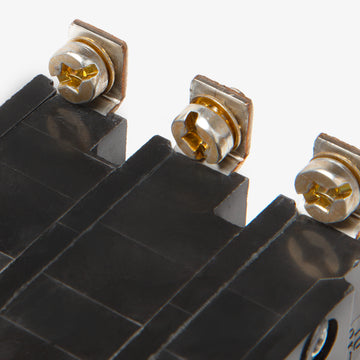

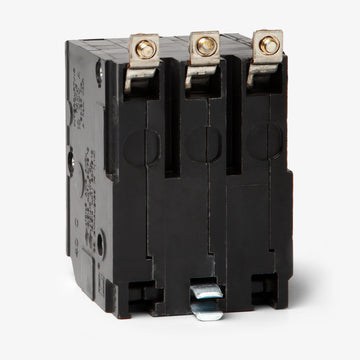

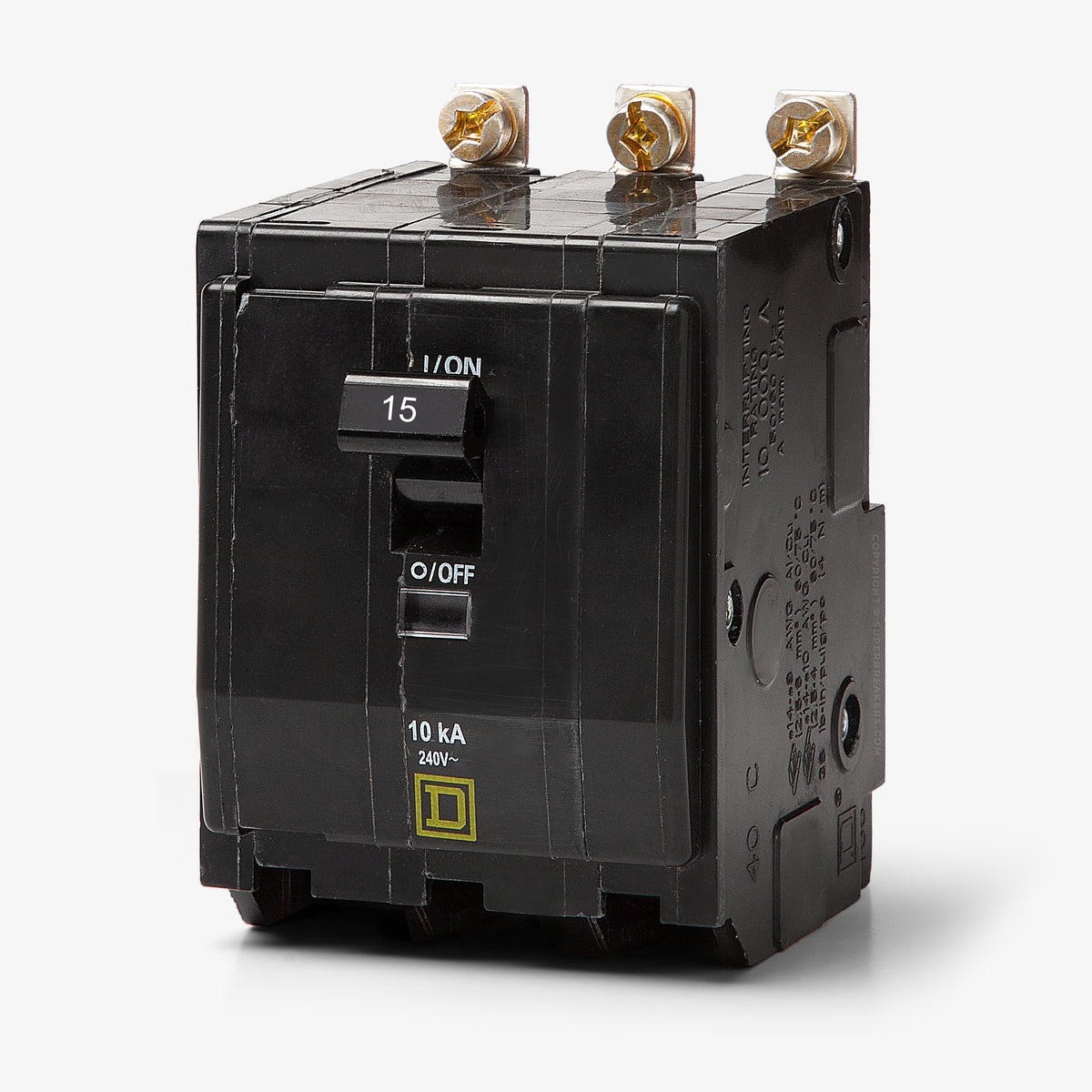

Square D QOB315 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
QOB315
Miniature Circuit Breaker
Brand
Square D
SKU
QOB315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB315 |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, REACh, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Mercury Free, RoHS Compliant |
Quantity
Square D QOB315 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB315-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, REACh, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Mercury Free, RoHS Compliant |
Similar Items
15A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Built for reliable branch circuit protection, the Square D QOB315 is a three-pole miniature circuit breaker suitable for commercial environments. It utilizes thermal-magnetic technology to safeguard systems against overloads and short circuits. This 15-amp device bolts securely into Square D NQ and NQOD panelboards. It requires three panel spaces and accepts 14 to 8 AWG wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB315 |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, REACh, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Mercury Free, RoHS Compliant |
Product FAQs
5 answersCan I install the QOB315 in a standard Square D QO residential load center?
No. The QOB315 is a bolt-on circuit breaker designed exclusively for Square D NQ and NQOD commercial panelboards. Standard QO load centers require plug-on QO breakers, not bolt-on QOB models.
Are there higher interrupting rating alternatives to the standard QOB315?
Yes. If your panel requires a higher short-circuit current rating than 10 kAIC at 120/240VAC, you can upgrade to the QOB315VH for a 22 kAIC rating or the QHB315 for a 65 kAIC rating. Both share the same physical dimensions and bolt-on mounting style.
Does this breaker feature the Square D Visi-Trip indicator?
Yes, the QOB315 includes the Visi-Trip feature. When a fault causes the breaker to trip, the handle snaps to a midpoint position and reveals a bright red visual indicator for rapid identification in a crowded panelboard.
Is the QOB315 circuit breaker suitable for HVAC equipment?
Yes. This 15-amp miniature circuit breaker is HACR rated, meaning it is certified for use with compatible heating, air conditioning, and refrigeration equipment.
How does the QOB315 connect to the panelboard bus?
It uses a bolt-on mounting configuration. The breaker physically bolts directly to the bus bars of an NQ or NQOD panelboard to ensure a secure, vibration-resistant connection in commercial and industrial environments.
