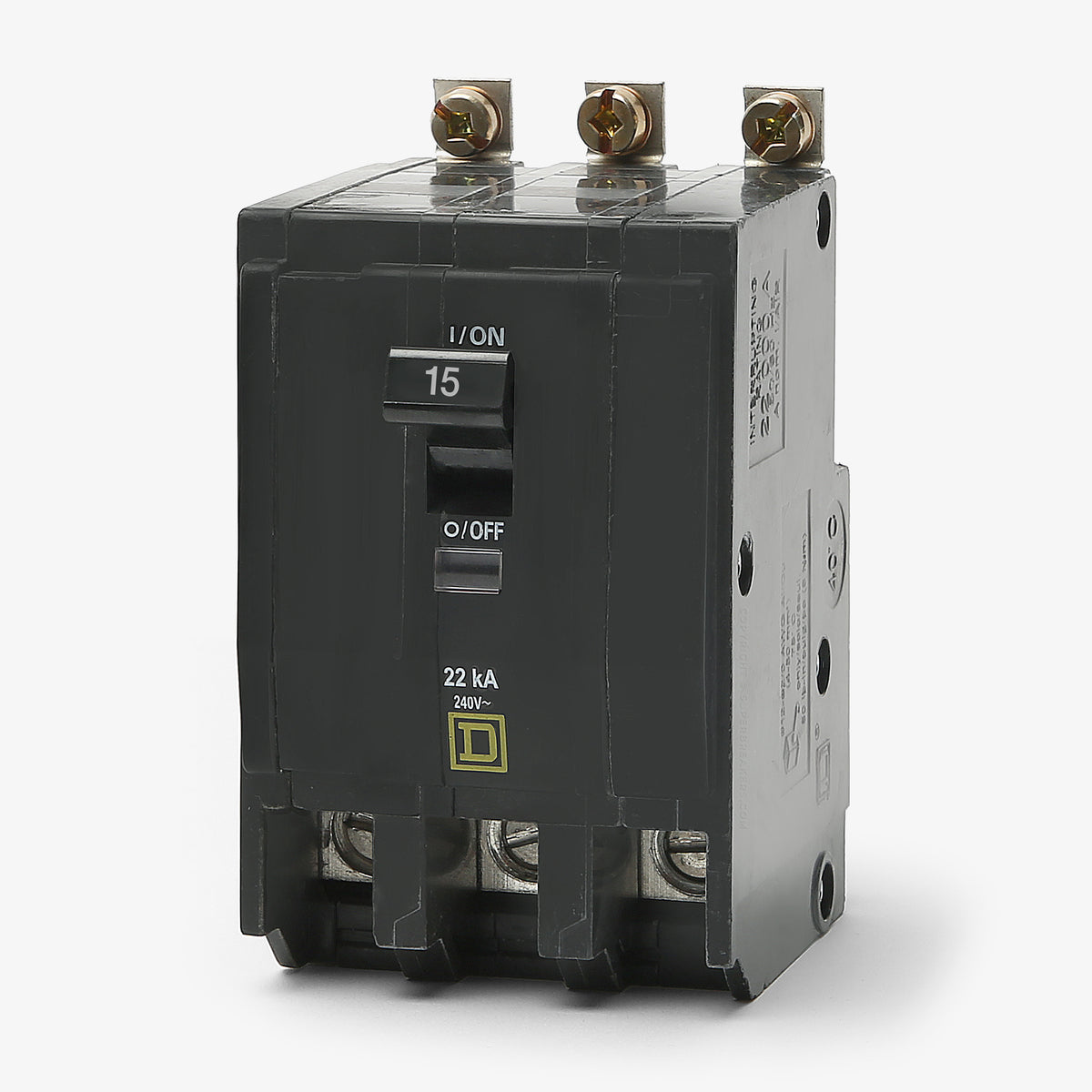

Square D QOB315VH Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
QOB315VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB315VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB315VH - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB315VH - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB315VH |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Sold out
Quantity
Square D QOB315VH - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB315VH-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Similar Items
30A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
QOB340VH1021 - 40A 3 Pole Miniature Circuit Breaker
Description
Delivering enhanced protection, the Square D QOB315VH is a 15A, three-pole miniature circuit breaker. It is engineered for commercial applications requiring robust performance. This bolt-on breaker installs into Square D NQ and NQOD panelboards. It is equipped with pressure plate terminals that accommodate 14-8 AWG wiring. As a "VH" series model, it boasts a high interrupting rating of 22 kAIC at 120/240VAC. It is HACR rated and features the Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB315VH |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
6 answersCan I install the QOB315VH in a standard QO load center?
No. The QOB315VH features a bolt-on connection designed specifically for Square D NQ and NQOD panelboards. Standard QO load centers require plug-on QO breakers.
What does the "VH" suffix indicate on the QOB315VH?
The "VH" designates a very high interrupting rating. While standard QOB breakers provide a 10 kAIC rating, this VH version delivers a 22 kAIC rating at 120/240VAC.
How many panel spaces does the QOB315VH require?
This 3-pole breaker requires three standard 3/4-inch pole spaces in a compatible NQ or NQOD panelboard.
Does the QOB315VH provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
Can the QOB315VH replace a standard QOB315?
Yes, it can physically replace a standard QOB315. It offers an upgraded 22 kAIC interrupting rating compared to the standard 10 kAIC rating of the QOB315.
Does the QOB315VH include a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears in a small window on the face of the breaker to help quickly identify the tripped circuit.
