Square D QOB315GFI GFCI Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Square D
QOB315GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB315GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

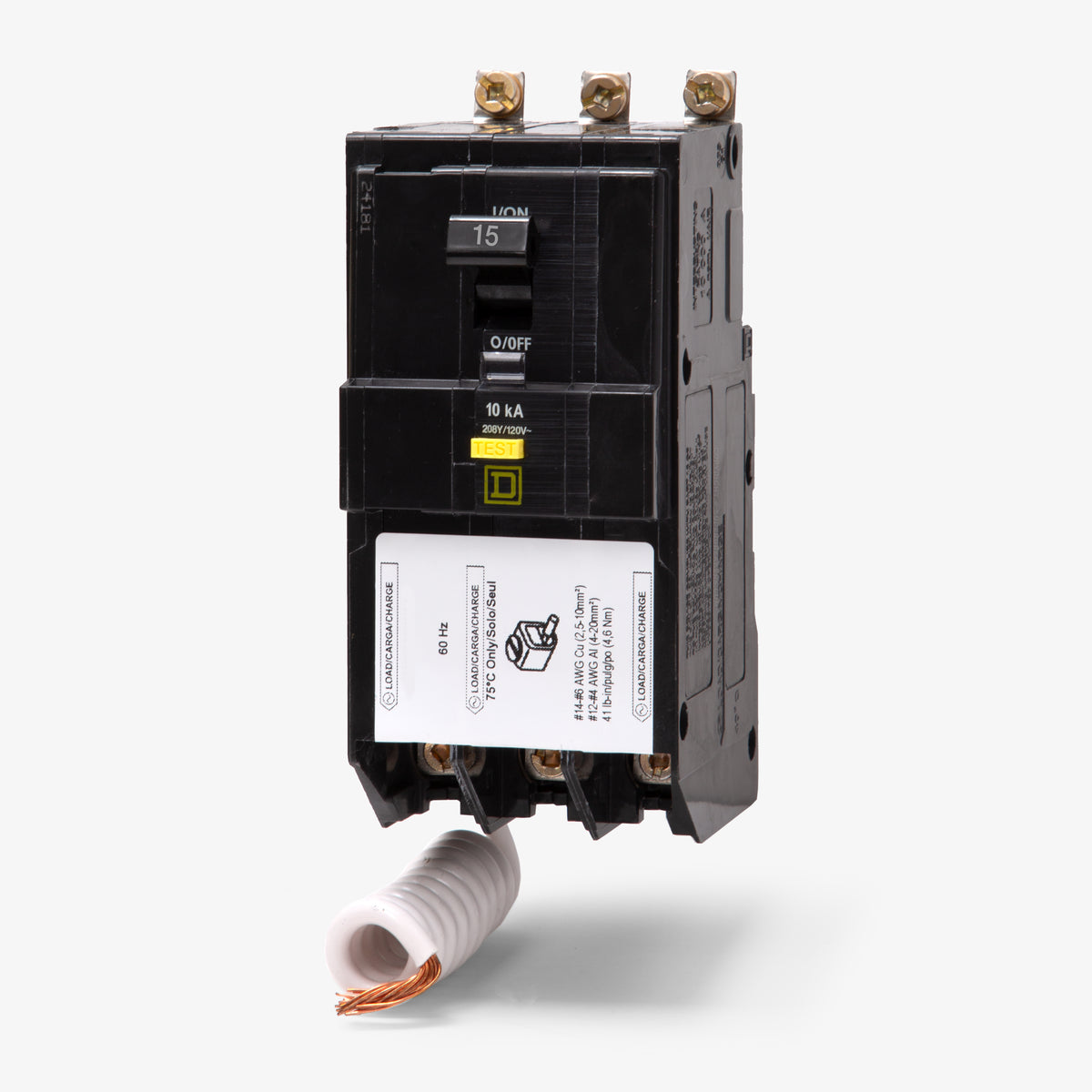

Square D QOB315GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
Description
Securing into NQ and NQOD panelboards via bolt-on mounting, this 15-amp three-pole breaker ensures robust connections in commercial and industrial environments. It supplies Class A 6mA ground-fault protection for 208Y/120V three-phase systems requiring strict NEC compliance. The unit includes a pigtail neutral wire and features the Visi-Trip visual indicator to quickly spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB315GFI |
| Series | QOB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral, Load Side Lugs Included |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
5 answersDoes the QOB315GFI require a load neutral connection?
No. Square D 3-pole QOB-GFI breakers do not have a load neutral terminal. They are designed for 3-wire, 208Y/120VAC loads. The included pigtail neutral must still be connected to the panel neutral bus to power the internal GFCI electronics.
What is the ground fault trip threshold for this breaker?
The QOB315GFI provides Class A ground fault protection, which is designed to trip when a ground fault of 4 to 6 milliamps (mA) is detected.
Can I install the QOB315GFI in a standard QO load center?
No. The QOB315GFI features a bolt-on mounting design intended for Square D NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
What is the plug-on equivalent for the QOB315GFI?
The plug-on equivalent is the Square D QO315GFI. It shares the same 15A, 3-pole, and GFCI specifications but features a plug-on mounting design for QO load centers.
Can this breaker be used on a 240V delta system?
No. The QOB315GFI is specifically rated for 208Y/120VAC solid-grounded wye systems. It is not suitable for 240V delta, high-leg delta, or 480V systems.
