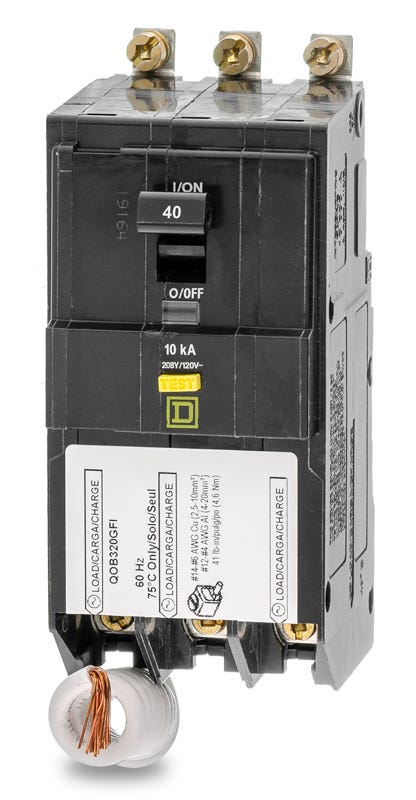

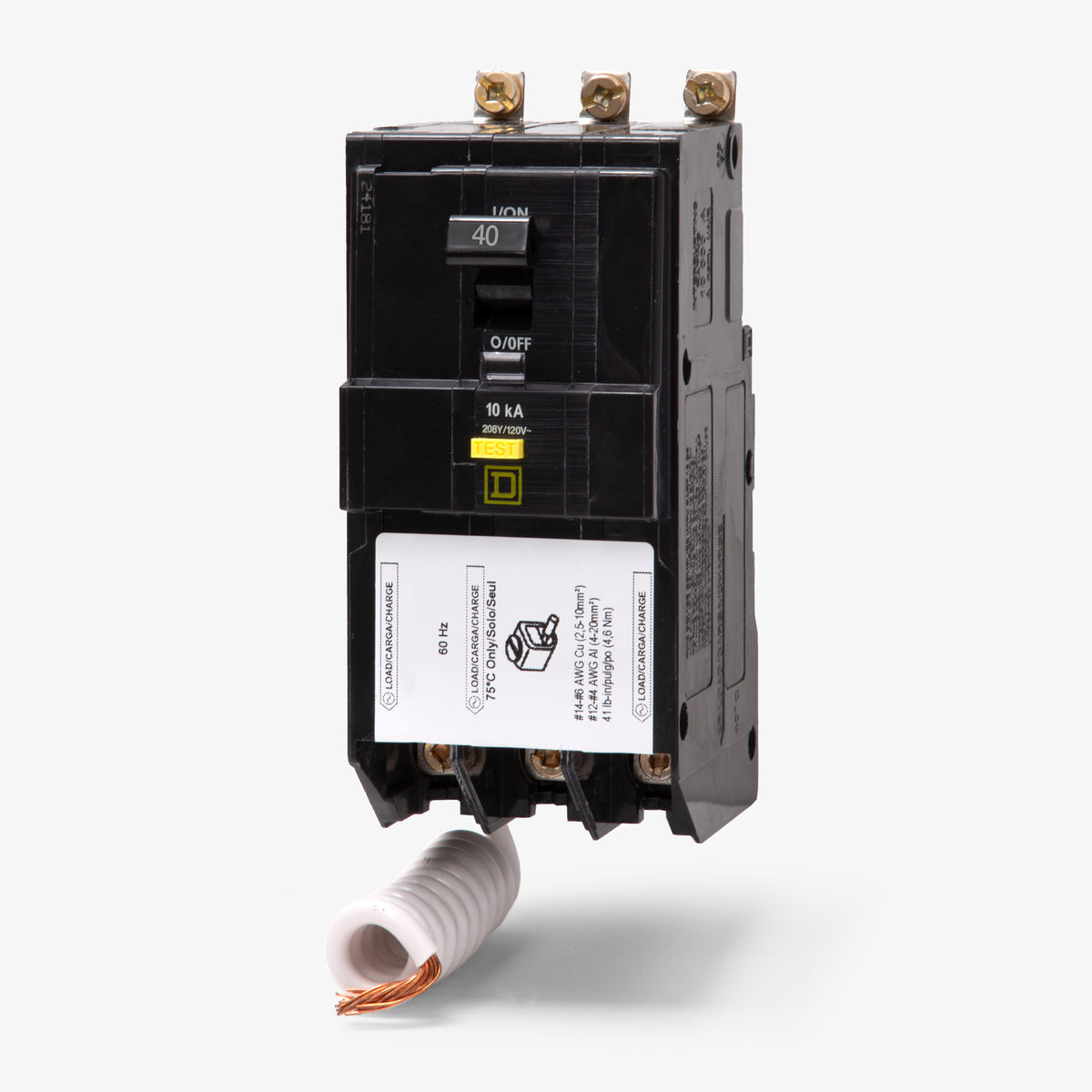

Square D QOB340GFI GFCI Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Square D
QOB340GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB340GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB340GFI - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description

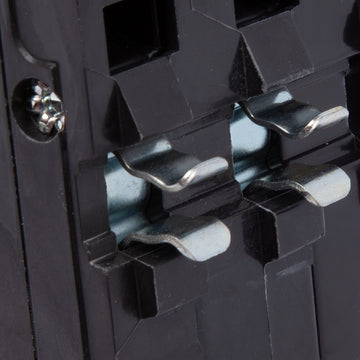

Part of the renowned QO series, this 40-amp, three-pole GFCI breaker provides essential 6mA ground fault protection for commercial electrical systems. Rated for 10kAIC at 208Y/120VAC, the Square D QOB340GFI features a robust bolt-on mounting style that ensures a secure mechanical and electrical connection in NQ and NQOD panelboards. It comes equipped with a pigtail neutral and a Visi-Trip visual indicator to help electricians rapidly locate faults during routine maintenance or outages.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB340GFI |
| Series | QOB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |

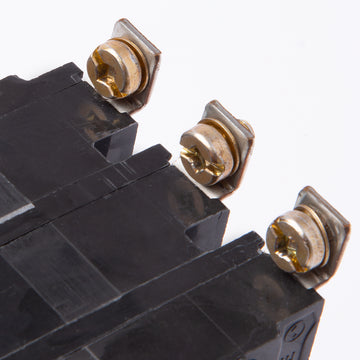

| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, RoHS, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWill the QOB340GFI bolt-on breaker fit in a standard Square D QO load center?
No. While it shares the same internal mechanism as the QO series, this QOB breaker features bolt-on brackets specifically designed for NQ and legacy NQOD commercial panelboards. Standard residential QO load centers require plug-on style breakers.
Is the QOB340GFI rated for equipment protection or personnel protection?
It provides Class A personnel protection. The ground-fault circuitry is designed to trip when leakage current reaches the 4 to 6 milliamp range, unlike equipment protection devices (EPD) which typically trip at a much higher 30 milliamp threshold.
How does the pigtail neutral on the QOB340GFI connect during installation?
The coiled white pigtail wire must be routed and secured directly to the panelboard neutral bar. This connection provides the return path necessary to power the breaker's internal ground-fault monitoring electronics.
Can the QOB340GFI be used on a straight 240V or delta 3-phase system?
No. This GFCI breaker is rated strictly for 208Y/120V AC wye systems. Its internal ground-fault sensors require a solidly grounded 120V reference to function correctly, rendering it incompatible with ungrounded or corner-grounded delta configurations.
Can I substitute the QO340GFI for this breaker if they share the same electrical ratings?
Only if your panelboard bus accepts plug-on connections. The QO340GFI is a plug-on variant, whereas the QOB340GFI requires bolt-on mounting. They cannot be interchanged between bolt-on NQ panelboards and plug-on QO load centers.
Does the QOB340GFI feature a visual trip indicator?
Yes. It includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or ground-fault condition, the handle moves to a midpoint position and a highly visible red indicator appears in the window, making it easy to identify the tripped circuit in a busy panel.
