Square D QOB3251021 Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Square D
QOB3251021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB3251021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

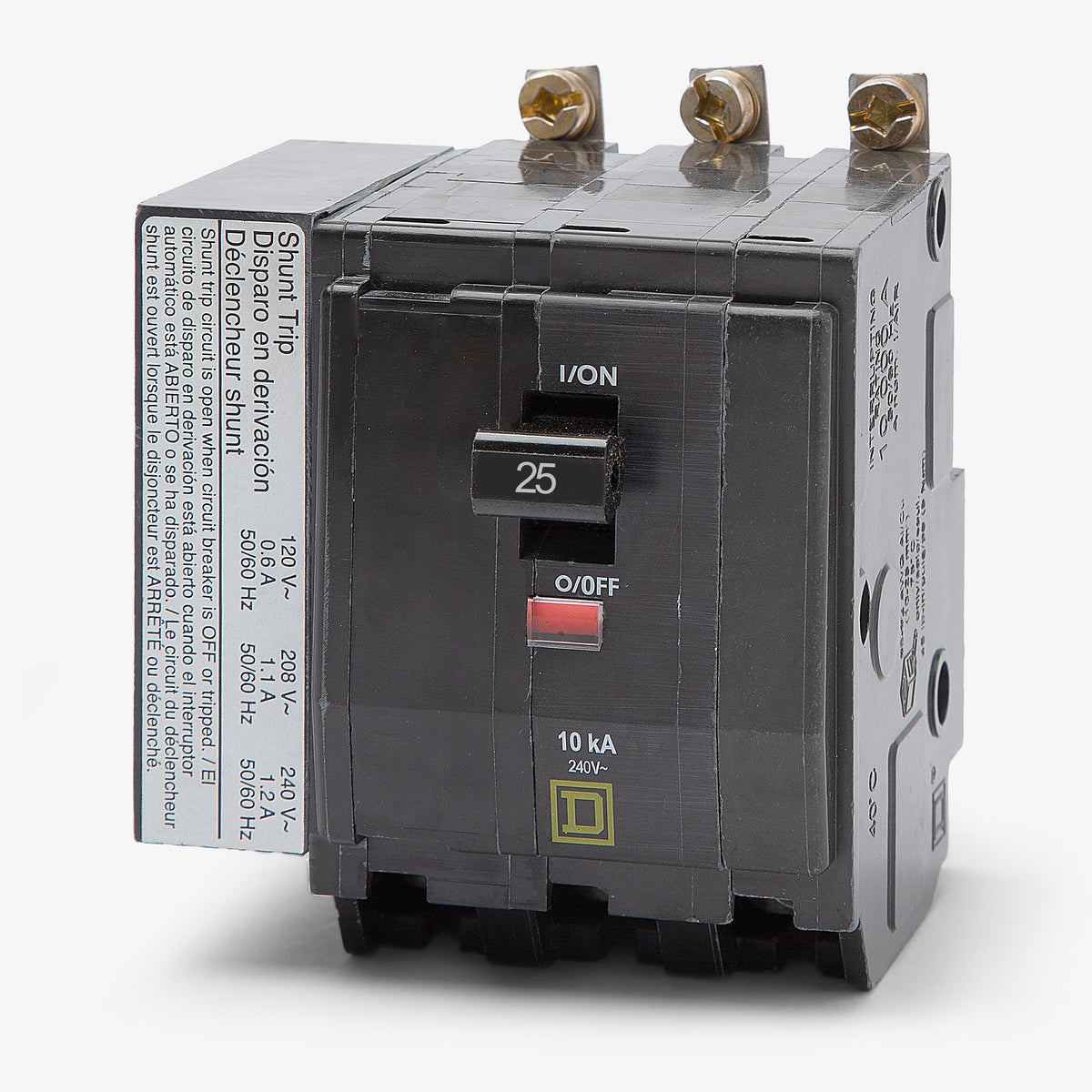

Square D QOB3251021 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the QOB3251021 provides thermal-magnetic protection alongside remote-trip capabilities. The factory-installed shunt trip operates on 120/240VAC control voltage, allowing facility managers to disconnect power from a distance during emergencies. It mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. Rated for 10kAIC at 120/240VAC, this three-pole breaker features the signature Visi-Trip indicator for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120/208/240VAC) |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QOB3251021?
This bolt-on miniature circuit breaker is designed for use in Square D NQ and NQOD panelboards.
What does the 1021 suffix mean on this breaker?
The 1021 suffix indicates that this breaker includes a factory-installed AC shunt trip. This allows the breaker to be tripped remotely using a 120V to 240V AC control signal, which is commonly used for emergency stop applications.

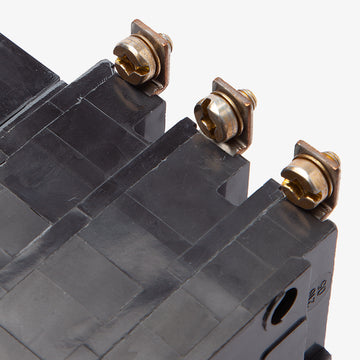

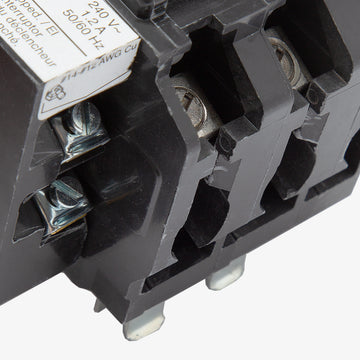

What type of wire connections does the QOB3251021 accept?
It features pressure plate terminals that accept 14 AWG to 8 AWG aluminum or copper wire.

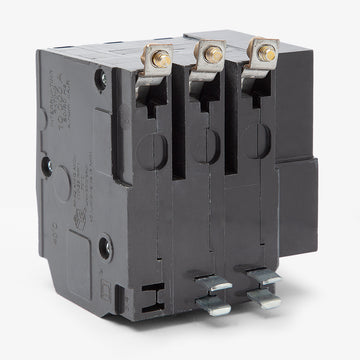

How is this breaker mounted into the panel?
The QOB3251021 uses a bolt-on connection, securing directly to the busbar of compatible NQ or NQOD panelboards for a reliable, vibration-resistant installation.
Does this breaker provide a visual indication when it trips?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears, allowing for rapid fault identification in the panelboard.
Can I use a QO3251021 instead of the QOB3251021?
No. While they share the same electrical ratings and shunt trip feature, the QO3251021 is a plug-on breaker for QO load centers, whereas the QOB3251021 is a bolt-on breaker specifically for NQ and NQOD panelboards. They are not interchangeable.
