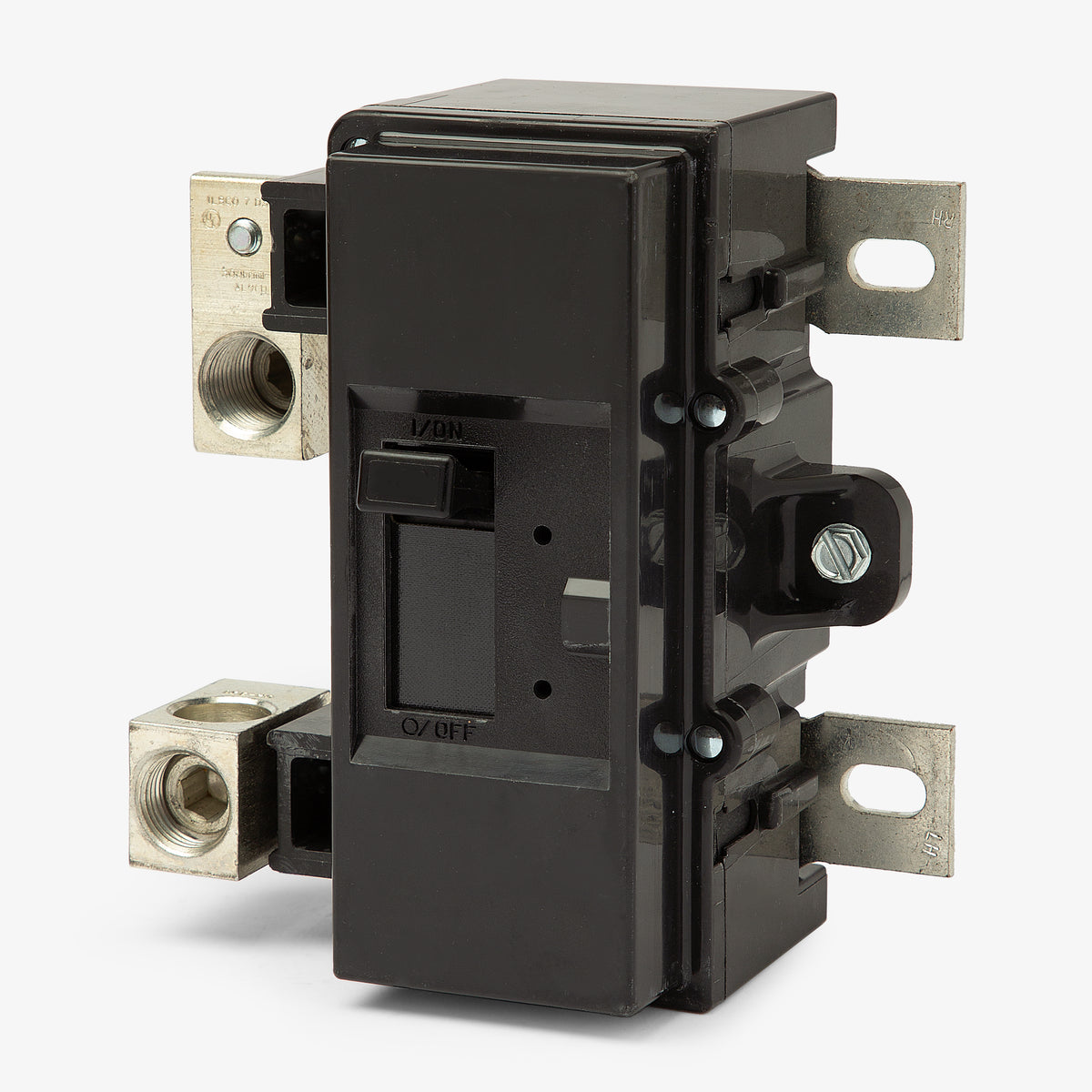

Square D QOM2150MM Miniature Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Square D
QOM2150MM
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2150MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2150MM - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
175A 2 Pole Miniature Circuit Breaker
175A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Square D QOM2150MM serves as a primary main breaker. This 150-amp, two-pole miniature circuit breaker features a bolt-on mounting style for a secure, vibration-resistant connection. It is equipped with Visi-Trip technology, providing a clear visual indicator when the breaker has tripped. Designed for compatibility, it mounts into MP Meter-Pak meter centers and QO load centers, delivering 10 kAIC of reliable thermal-magnetic protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2150MM |
| Series | QOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | MP Meter-Pak Meter Centers, QO Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Tenant Main |
Product FAQs
5 answersWhich load centers and metering equipment are compatible with the QOM2150MM?
This QOM2 frame main breaker is designed for use in Square D QO and Homeline convertible load centers, as well as MP Meter-Pak meter centers that accept 150A main breakers.
What is the difference between the QOM2150MM and the QOM2150VH?
The primary difference is the interrupting rating. The QOM2150MM is rated for 10kAIC at 120/240VAC, while the QOM2150VH is rated for 22kAIC. Both share the same physical QOM2 frame size and 150A rating.
What is the recommended lug torque for the QOM2150MM main breaker?
The main wire lugs should be torqued to 250 lb-in for 4 AWG to 300 kcmil aluminum or copper conductors. Always verify the exact torque specifications printed on the breaker label before installation.
Does the QOM2150MM require a specific mounting hardware kit?
No additional hardware kit is required. This bolt-on main breaker installs directly onto the busbar of compatible QO or Homeline load centers using the mounting screws provided with the breaker.
Does the QOM2150MM feature a Visi-Trip indicator?
Yes, like many Square D breakers, it includes a Visi-Trip indicator. When the breaker trips due to an overcurrent or short-circuit condition, the handle snaps to a center position and a highly visible red indicator appears, allowing for quick identification of the tripped circuit.
