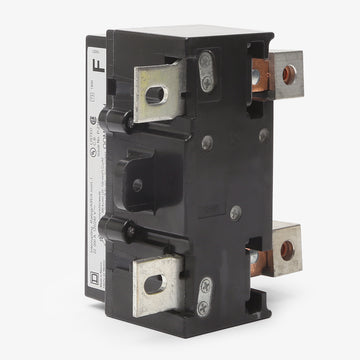

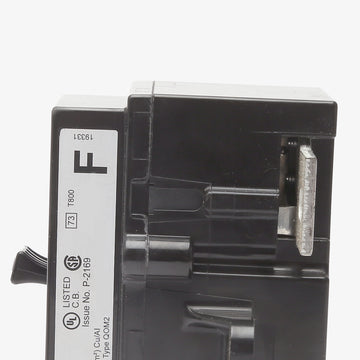

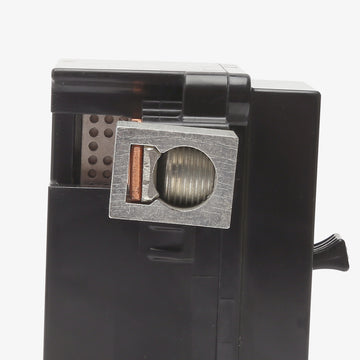

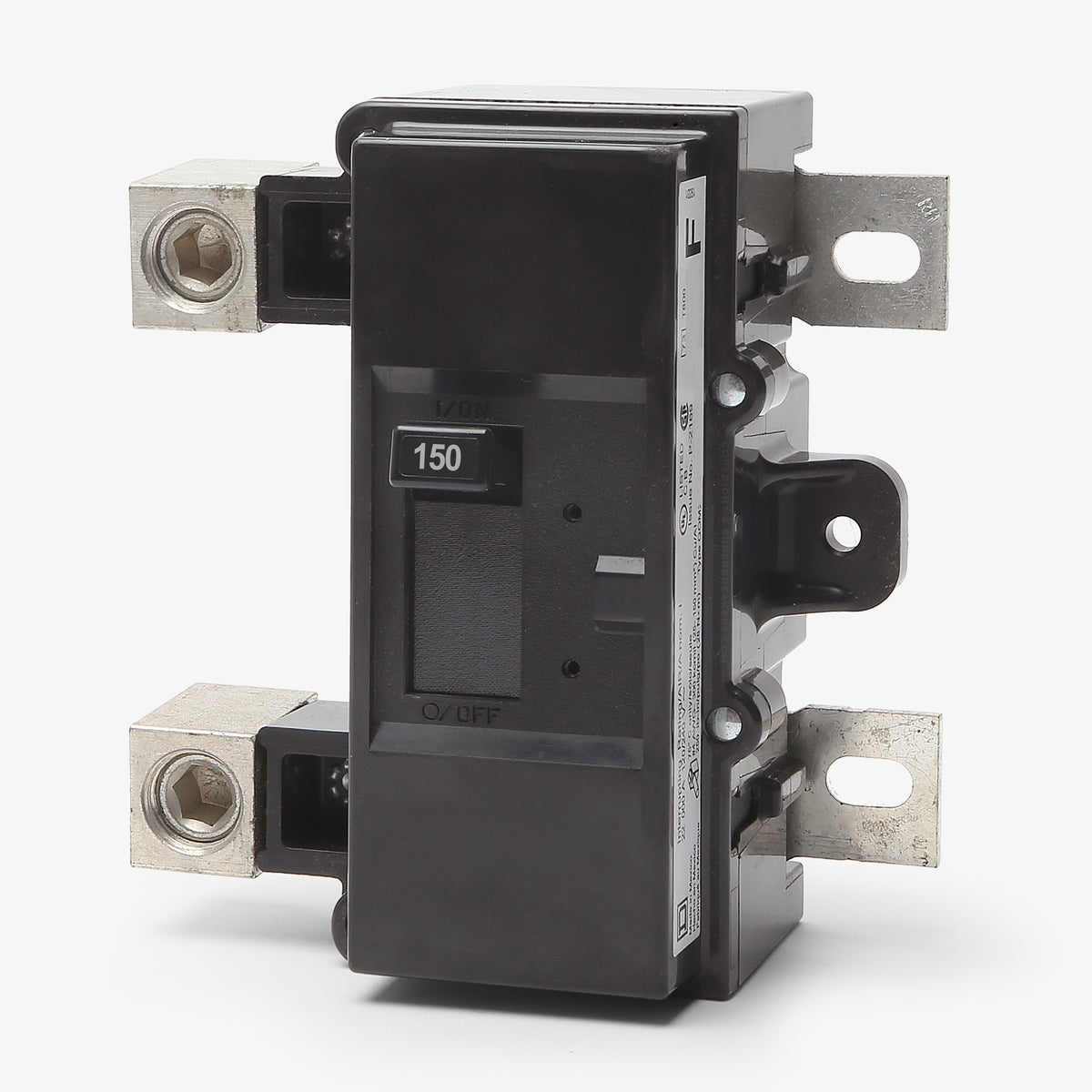

Square D QOM2150VH Miniature Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Square D
QOM2150VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2150VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2150VH - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM2150VH - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2150VH |
| Series | QOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Quantity
Square D QOM2150VH - 150A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2150VH-R |
| Series | QOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Similar Items
125A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
200A 2 Pole Miniature Circuit Breaker
Description
Engineered for primary panel protection, the Square D QOM2150VH is a 150-amp, two-pole main breaker. It delivers reliable thermal-magnetic protection with long-time and instantaneous trip functions. The unit includes the Visi-Trip visual indicator, which clearly flags a tripped circuit to streamline maintenance. This bolt-on miniature circuit breaker installs into QO and Homeline load centers. Rated for 22 kAIC at 120/240VAC, it provides high interrupting capacity and is also HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2150VH |
| Series | QOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Main Breaker |
Product FAQs
6 answersWhich load centers are compatible with the QOM2150VH main breaker?
This QOM2 frame main breaker is designed exclusively for Square D QO and Homeline load centers, as well as compatible CSED devices, that are rated for 150 to 225 amps and configured to accept a QOM2 main breaker.
Can I use the QOM2150VH to replace a standard QOM2150?
Yes, the QOM2150VH is a direct physical replacement for the QOM2150. The VH designation simply indicates a higher interrupting rating of 22 kAIC, whereas the standard QOM2150 is rated for 10 kAIC.
Is it permissible to install this 150A main breaker in a 200A or 225A load center?
Yes. You can install a lower amperage main breaker in a load center with a higher bus rating, such as placing this 150A breaker into a 200A or 225A QO or Homeline panel, as long as the panel accepts QOM2 frame breakers. You cannot, however, install a main breaker that exceeds the maximum rating of the panel.
How does this main breaker mount inside the load center?
The QOM2150VH is a field-installable, bolt-on main breaker. It secures directly to the interior bus assembly of the load center using mounting screws, rather than plugging onto the bus bars like a standard branch breaker.
Can the QOM2150VH be used as a branch breaker or back-fed device?
No. The QOM2 frame is specifically engineered to function as a dedicated main circuit breaker in convertible main lug panels or as a replacement main breaker. It is not designed to be mounted or back-fed in standard branch breaker spaces.
Does installing this 22 kAIC main breaker increase the short-circuit rating of my panel?
When installed ahead of standard 10 kAIC QO or Homeline branch breakers, this 22 kAIC main breaker can provide a UL listed series-connected short-circuit current rating of 22,000 amperes for the entire panel, depending on the specific branch breakers used.
