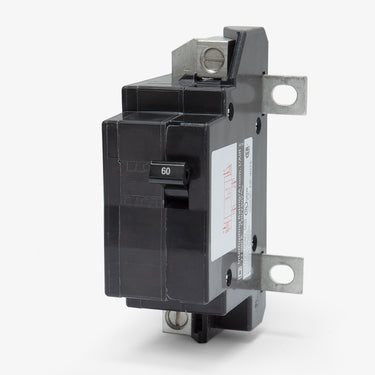

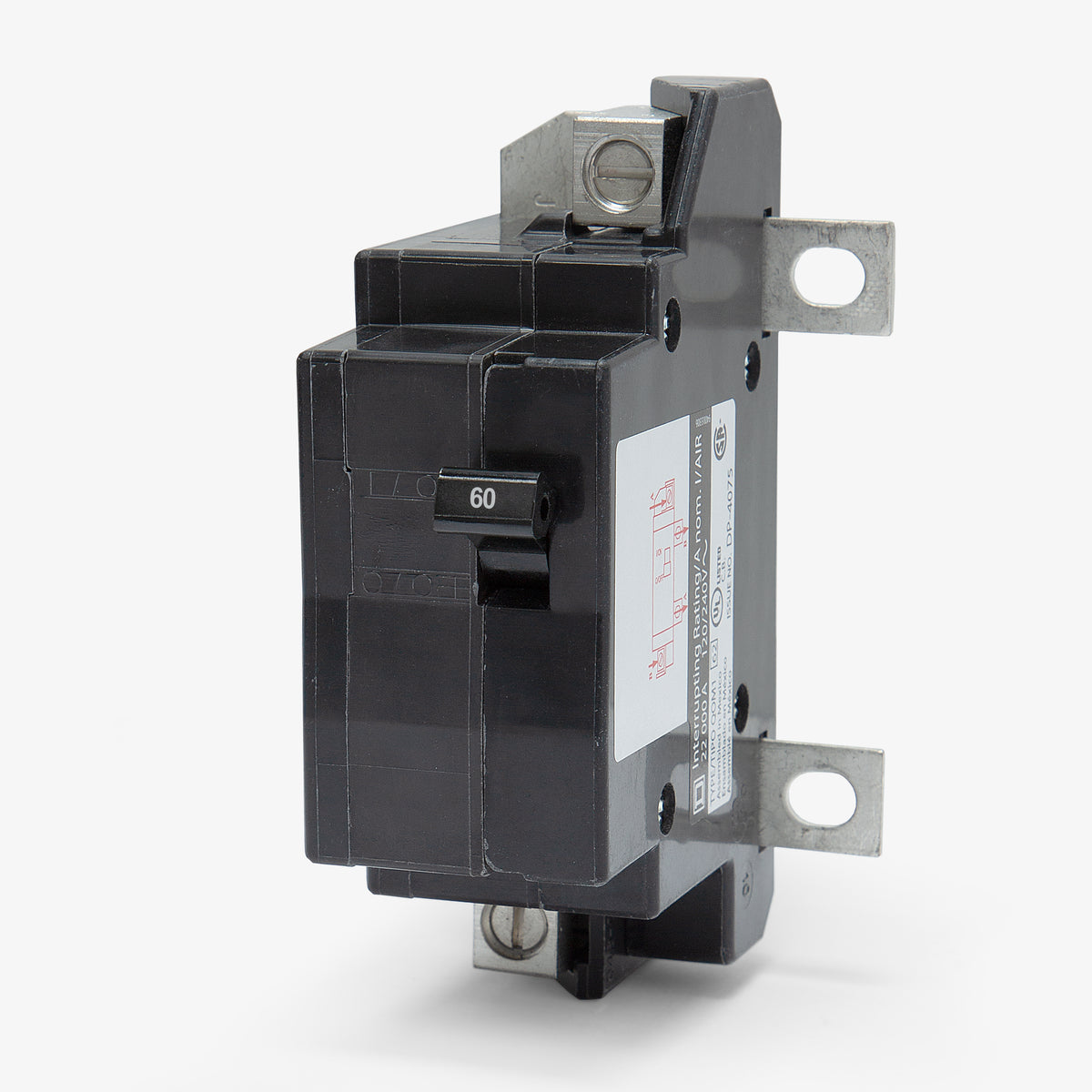

Square D QOM60VH Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Square D
QOM60VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM60VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM60VH - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Engineered to handle higher fault currents, this 60-amp main disconnect delivers robust protection for residential and light commercial electrical systems. It utilizes a proven thermal-magnetic trip unit to safeguard downstream branch circuits from severe overloads. Mounting into compatible Square D enclosures, the unit fits QO and Homeline load centers requiring a QOM1 frame. It accepts 4 AWG to 2/0 AWG aluminum or copper conductors. An upgraded 22 kAIC rating provides enhanced safety.Specifications
| Brand | Square D |
|---|---|
| Series | QOM |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|

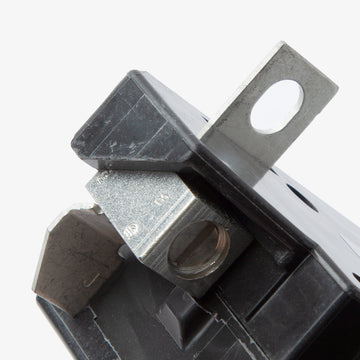

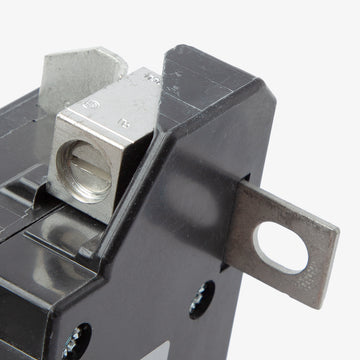

| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM1 Frame) |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Product FAQs
4 answersWhich load centers are compatible with the QOM60VH main breaker?
This breaker is designed for use in Square D QO and Homeline load centers that accept a QOM1 frame size main breaker. These are typically panels with a maximum rating of 100A or 125A.
What is the recommended tightening torque for the QOM60VH terminals?
The box lugs on this breaker should be torqued to 53.1 lb-in (6 N.m) for secure and code-compliant connections.
What does the VH suffix indicate in the QOM60VH part number?
The VH suffix designates a very high interrupting rating of 22kAIC at 120/240VAC. This is required for installations with higher available fault currents compared to standard 10kAIC breakers.
Can the QOM60VH be used as a back-fed branch breaker?
No. This is a dedicated main breaker designed exclusively for the main breaker position in QOM1 frame load centers. It bolts directly to the main bus and cannot be installed or back-fed on the standard branch circuit rails.
