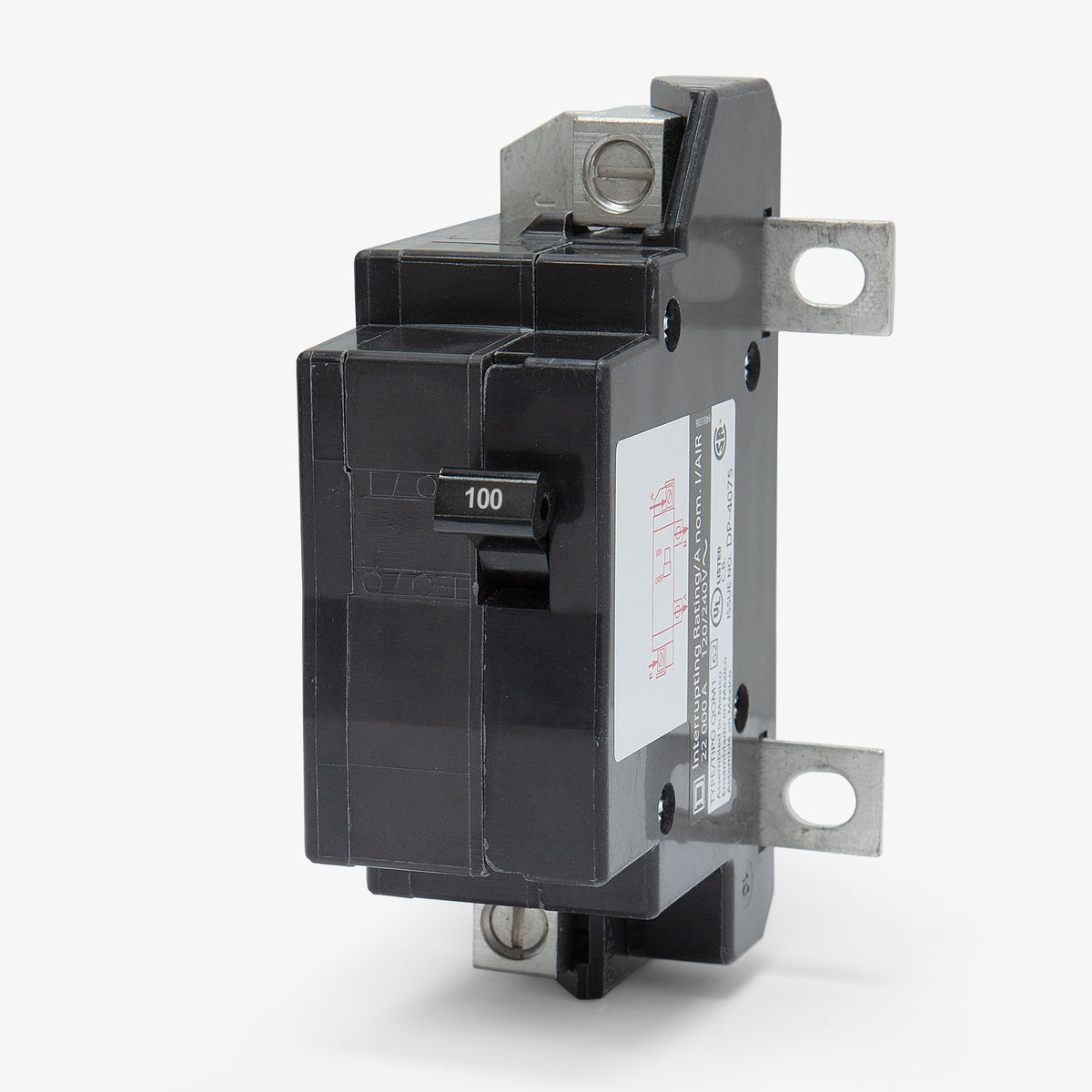

Square D QOM100VH Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QOM100VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM100VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM100VH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM100VH - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM100VH |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker, High Interrupting Capacity |
Quantity
Square D QOM100VH - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM100VH-R |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker, High Interrupting Capacity |
Similar Items
90A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial panels, the Square D QOM100VH serves as a reliable main disconnect. This 100A, 2-pole breaker provides essential long-time and instantaneous trip functions. It installs into QO and Homeline load centers accepting QOM1 frames. The bolt-on design ensures a secure connection, accepting 4 to 2/0 AWG wiring. Rated 22kAIC at 120/240V, it delivers robust fault clearing. It includes the Visi-Trip indicator for rapid troubleshooting and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM100VH |
| Series | QOM |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker, High Interrupting Capacity |
Product FAQs
5 answersIs the QOM100VH compatible with both Square D QO and Homeline panels?
Yes. QOM1 frame main circuit breakers are uniquely designed to fit both QO and Homeline convertible main load centers rated between 100 amps and 125 amps.
Will a QOM1 frame main breaker fit in a panel designed for a QOM2 breaker?
No. QOM1 frame breakers (up to 125A) and QOM2 frame breakers (150A to 225A) have different physical dimensions and bus connections. They are not interchangeable.
Can the QOM100VH be installed on the branch circuit bus?
No. The QOM series is exclusively designed for use as a main circuit breaker. It bolts directly to the main bus and cannot be snapped onto standard branch circuit spaces.
What is the recommended terminal torque for the load lugs?

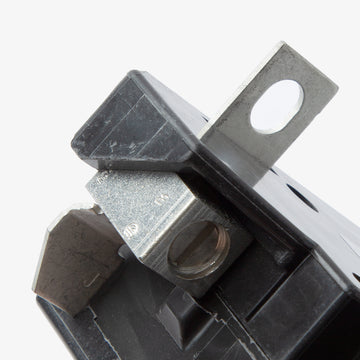

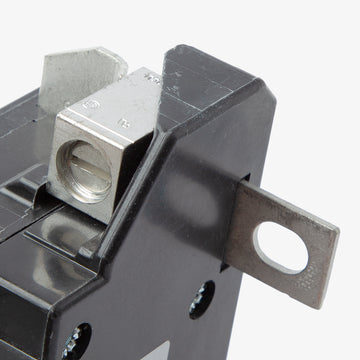

The box lugs on the QOM100VH should be tightened to 53.1 lb-in (6 N.m) when using 4 AWG to 2/0 AWG copper or aluminum wire.
Can the wire lugs on the QOM100VH be replaced if they are stripped or damaged?
No. The lugs on QOM series circuit breakers are permanently attached to the breaker assembly and are not field replaceable. The entire circuit breaker must be replaced if a lug is compromised.
