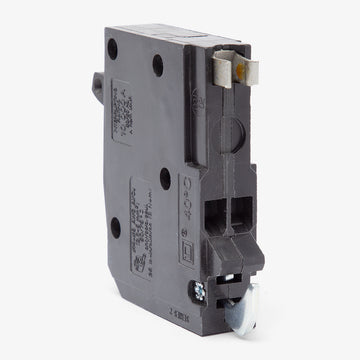

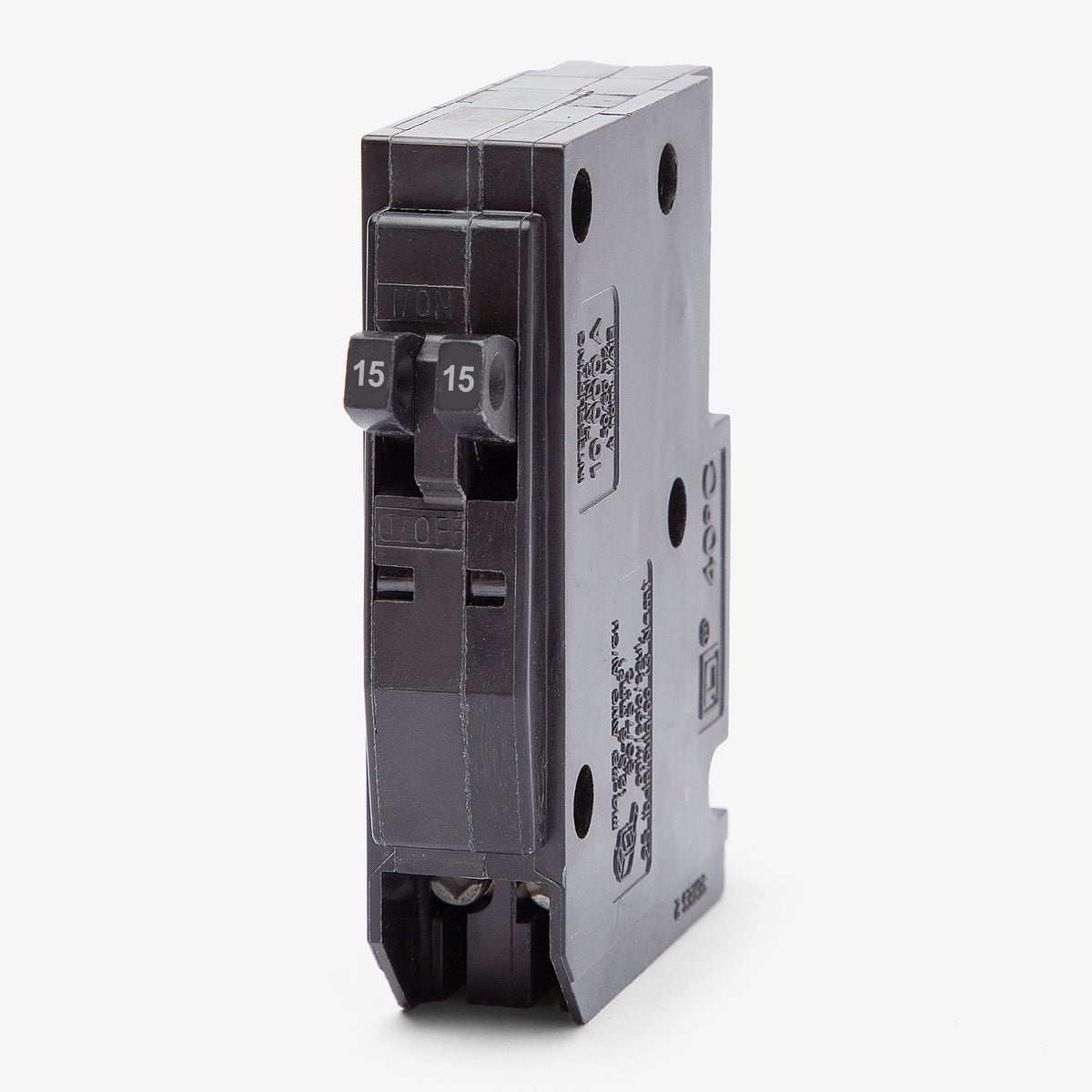

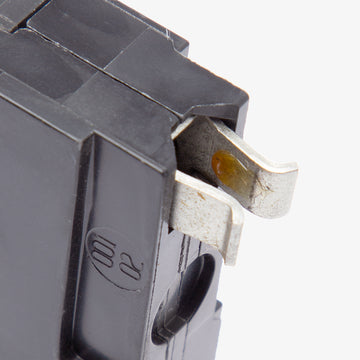

Square D QOT1515 15/15A Tandem Miniature Circuit Breaker
- 15/15A
- 1 Pole
- Plug-On
Square D
QOT1515
15/15A Tandem Miniature Circuit Breaker
Brand
Square D
SKU
QOT1515
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOT1515 - 15/15A Tandem Miniature Circuit Breaker
New
Quantity
Similar Items
20/20A Tandem Miniature Circuit Breaker
15/15A Tandem Miniature Circuit Breaker
15/15A Tandem Miniature Circuit Breaker
Description
The QOT1515 is a space-saving tandem miniature circuit breaker that provides two 15-amp circuits within a single 3/4-inch pole space. Built for residential applications, it allows homeowners and electricians to expand circuit capacity without upgrading the entire panel. It installs into Square D QO Class CTL load centers and features a plug-on mounting style with a rejection hook. The unit includes the exclusive Visi-Trip indicator, making it easy to spot a tripped breaker instantly.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOT1515 |
| Series | QOT |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D QO Load Centers (Class CTL) |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Tandem, CTL Rejection |
Product FAQs
7 answersWhat is the difference between the QOT1515 and the QO1515 tandem breakers?
The QOT1515 is a Class CTL (Circuit Total Limiting) breaker equipped with a physical rejection clip that prevents installation in panel slots not rated for tandems. The QO1515 is a non-CTL breaker without this clip, intended strictly as a replacement part for older panels built before CTL standards were adopted.
Can I install the QOT1515 in any Square D QO load center?

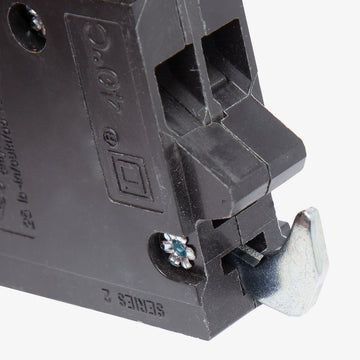

No. The QOT1515 can only be installed in Class CTL Square D QO load centers that feature notched bus stabs. If the panel's mounting rail lacks these specific notches, the breaker's rejection clip will physically block the installation.
Will this breaker fit in a Square D Homeline electrical panel?
No. Square D QO and QOT series breakers are not interchangeable with the Homeline series. You must use Homeline tandem breakers, such as the HOMT1515, for Homeline load centers.
Why is the Class CTL rejection feature important for panel safety?
The rejection clip ensures that tandem breakers are only placed in panel positions specifically tested and approved for them. This prevents users from exceeding the maximum number of circuits the panel is rated to handle, which protects the electrical system from dangerous overloading and overheating.
Can I use the QOT1515 to replace a failed breaker in a pre-1968 non-CTL panel?
No. Older non-CTL panels do not have the notched bus bars required to accept the QOT1515 rejection clip. You will need a non-CTL tandem breaker, such as the QO1515, for legacy panel replacements.
Does the QOT1515 feature a tripped circuit indicator?
Yes, it includes the signature Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a bright red flag appears in the indicator window, allowing you to quickly identify the faulted circuit.
How much physical panel space does the QOT1515 require?
This tandem breaker provides two independent 15-amp circuits while occupying only a single standard 3/4-inch pole space in the load center, making it an effective way to add capacity to a full panel.
