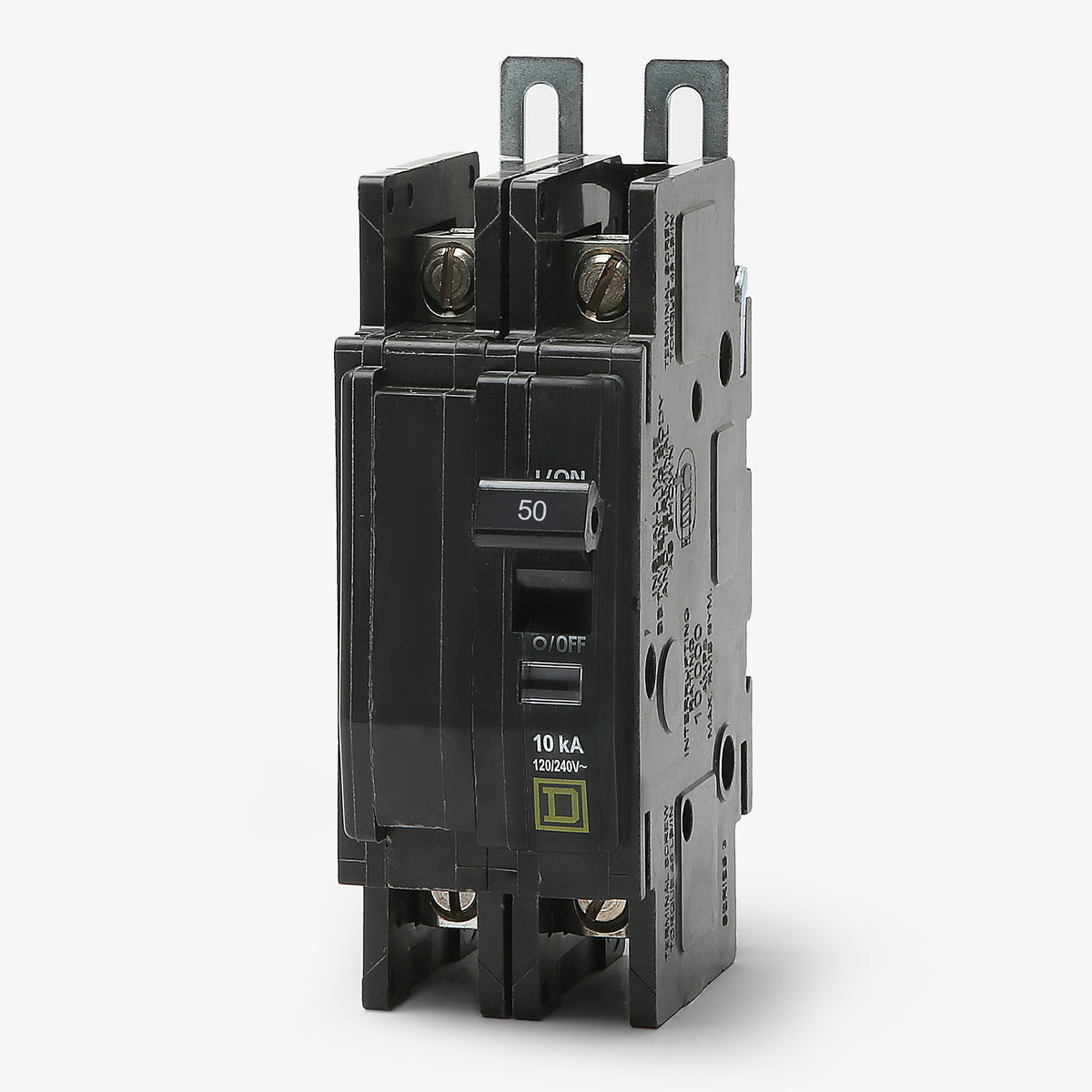

Square D QOU250 Miniature Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Square D
QOU250
Miniature Circuit Breaker
Brand
Square D
SKU
QOU250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU250 |
| Series | QOU |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QOU250 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU250-R |
| Series | QOU |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
45A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description

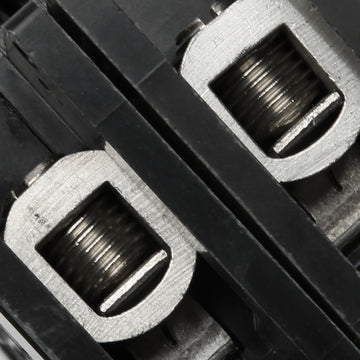

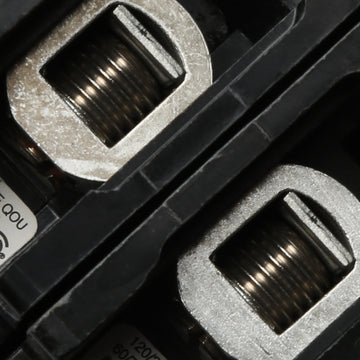

Providing reliable 50A circuit protection, this two-pole thermal-magnetic breaker is tailored for diverse industrial and commercial environments. It ensures steady performance across standard 120/240VAC electrical systems. Designed specifically for unit-mount applications, the device fastens into OEM control panels, custom enclosures, and DIN rails. The included box lugs support 14-2 AWG conductors and can be wired from either direction.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU250 |
| Series | QOU |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersCan the QOU250 be installed in a standard Square D QO load center?
No, the QOU250 cannot be used in a standard QO load center. It is a unit-mount circuit breaker designed with box lugs on both the line and load sides for direct cable-in, cable-out wiring. It lacks the plug-on jaws required to connect to a load center busbar. If you need a 50A plug-on breaker for a standard residential or commercial panel, you will need the QO250 instead.
How do you mount the QOU250 in a control panel?
This unit-mount breaker is highly versatile and can be flush-mounted, surface-mounted, or installed on a standard 35mm DIN rail. Keep in mind that securing the breaker to a DIN rail or surface generally requires Square D QOU mounting hardware, such as DIN rail brackets or mounting feet, which are often sold separately.
Is the QOU250 suitable for protecting HVAC equipment?
Yes, standard Square D QOU circuit breakers carry an HACR rating. This certifies the 50A QOU250 for safe use with heating, air conditioning, and refrigeration systems that mandate HACR-type overcurrent protection.
Can this circuit breaker be used in direct current (DC) applications?
Yes. In addition to its 120/240VAC rating, the QOU250 is UL Listed for 48VDC applications with a 5kAIC interrupting rating. This makes it a popular choice for telecommunications equipment, DC control panels, and battery backup systems.
Does the QOU250 feature the Visi-Trip indicator?
Yes, this breaker includes the signature Square D Visi-Trip red indicator flag. If the breaker trips due to an overload or short circuit, the bright red flag appears in the window, allowing electricians to instantly spot the tripped device inside a crowded control panel.
