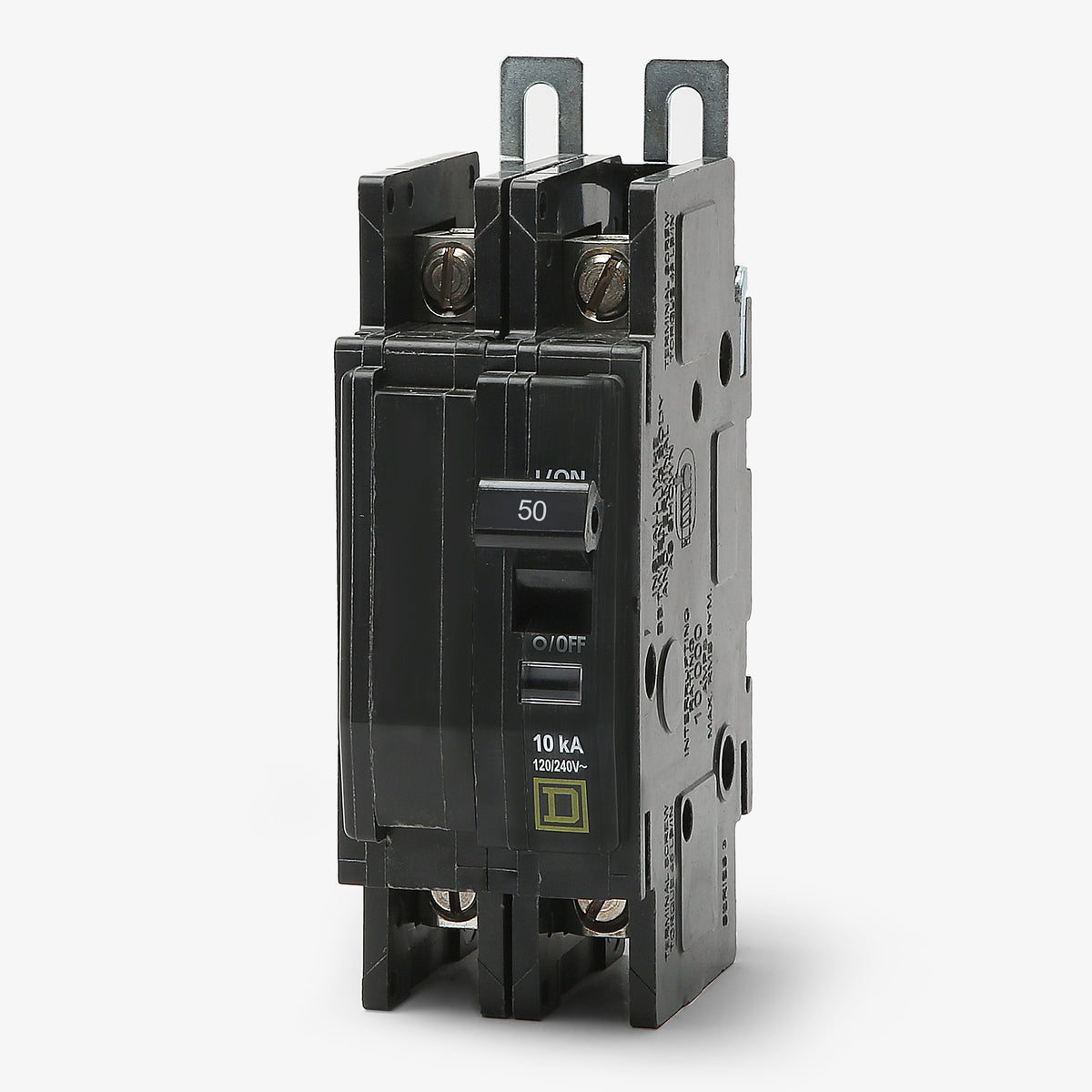

Square D QOU250VH Miniature Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Square D
QOU250VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOU250VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU250VH - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Part of the trusted QO family, the Square D QOU250VH delivers reliable thermal-magnetic protection with a very high interrupting rating of 22 kAIC at 120/240VAC. This 50-amp, two-pole miniature circuit breaker is designed for robust performance in commercial and industrial environments. It installs into OEM panels, control enclosures, and DIN rail systems using a versatile unit-mount design.Specifications
| Brand | Square D |
|---|---|
| Series | QOU |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |

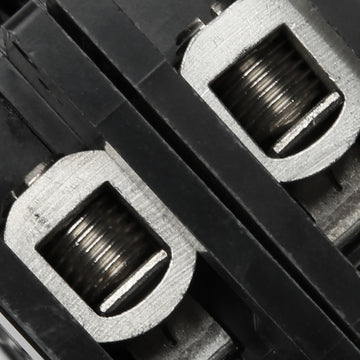

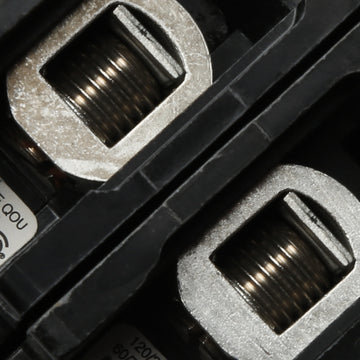

| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
6 answersWhat does the "VH" suffix indicate on the QOU250VH breaker?
The "VH" designates a higher interrupting rating. While standard QOU breakers are rated for 10kAIC, this VH model provides a 22kAIC rating at 120/240VAC.
Are the line and load connections reversible on the QOU250VH?
Yes. QOU circuit breakers are fully tested and UL listed for reverse connection. The box lugs can be wired from either direction without restrictive line or load markings.
How is the QOU250VH mounted in a control panel?
This unit mount breaker can be surface mounted, flush mounted, or snapped directly onto a standard 35mm symmetrical DIN rail.
Does the QOU250VH feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator, which provides a highly visible red flag to quickly identify when the breaker has tripped due to an overload or short circuit.
Is the QOU250VH suitable for heating and cooling equipment?
Yes, this thermal magnetic breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration applications.
Can I use the QOU250VH in a standard QO load center?
No. While it is part of the broader QO family, QOU breakers are unit mount devices designed for OEM panels, control panels, and DIN rail systems, not standard plug-on QO load centers.
