Square D QOU230VH Miniature Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Square D
QOU230VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOU230VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

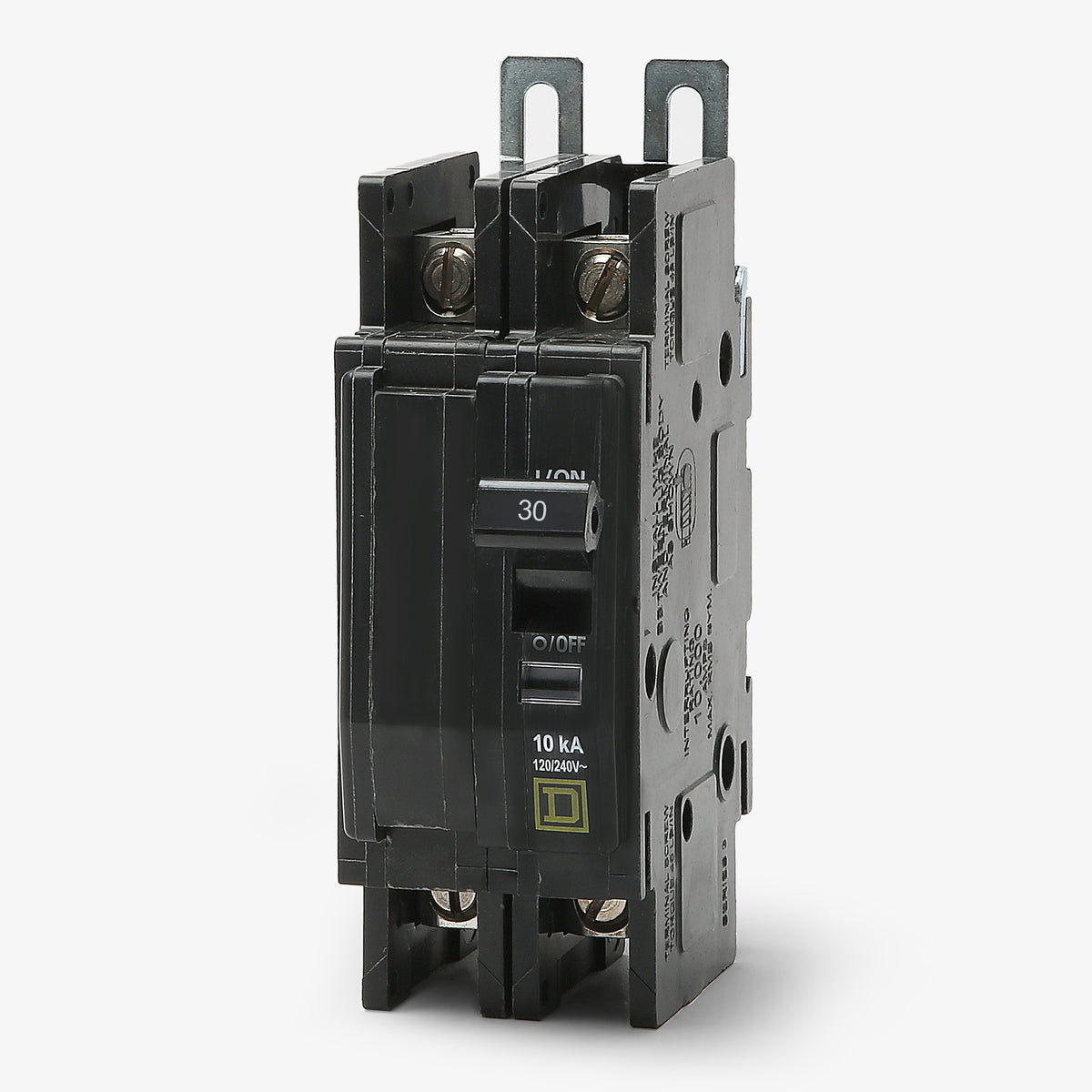

Square D QOU230VH - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential and industrial applications, the Square D QOU230VH is a 30-amp, two-pole miniature circuit breaker. It features a very high interrupting rating to handle demanding electrical environments. Designed for versatile installation, this unit-mount breaker easily attaches to standard 35mm DIN rails, control panels, and OEM enclosures. It includes reversible line and load box lugs that accept 14-2 AWG copper or aluminum wiring.Specifications
| Brand | Square D |
|---|---|
| Series | QOU |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Mounting Feet, Quick Connectors |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, High Interrupting Capacity |
Product FAQs
7 answersCan I install the Square D QOU230VH in a standard QO load center?
No. The QOU230VH is a unit-mount circuit breaker designed for OEM panels, control panels, and DIN rail systems. It is not a plug-on breaker and will not fit in standard QO or QOB load centers.
Does the QOU230VH require a separate adapter for DIN rail mounting?
No. The molded case of the QOU230VH includes built-in slots designed to mount directly onto a standard 35mm DIN rail without requiring additional mounting hardware.
Are the line and load connections on the QOU230VH reversible?

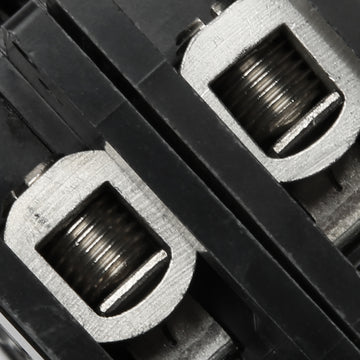

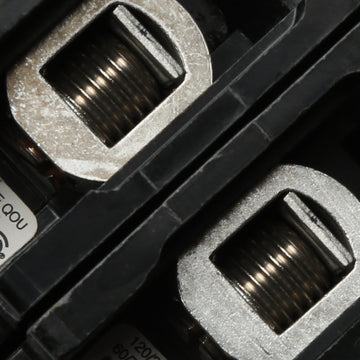

Yes. This breaker features field-reversible line and load box lugs, allowing for flexible cable-in and cable-out wiring orientations in control panels and enclosures.
What does the "VH" designate in the QOU230VH catalog number?
The "VH" indicates a very high interrupting rating. While standard QOU breakers are rated at 10 kAIC, the QOU230VH provides a 22 kAIC interrupting rating at 120/240VAC for systems with higher available fault currents.
Is the Square D QOU230VH HACR rated?
Yes. This breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires dedicated overcurrent protection.
Can the QOU230VH replace a standard QOU230 breaker?
Yes. The QOU230VH shares the exact physical dimensions and mounting footprint as the standard QOU230. It can safely replace the standard version in applications where a higher 22 kAIC interrupting rating is required.
Does the QOU230VH feature a tripped circuit indicator?
Yes. It includes a Visi-Trip indicator, which provides a clear visual signal when the breaker has tripped and interrupted the circuit, allowing for quick identification of faults.
