Square D QOU3201021 Miniature Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Square D
QOU3201021
Miniature Circuit Breaker
Brand
Square D
SKU
QOU3201021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

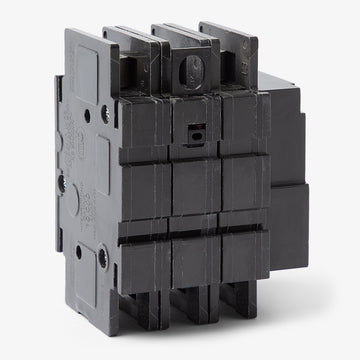

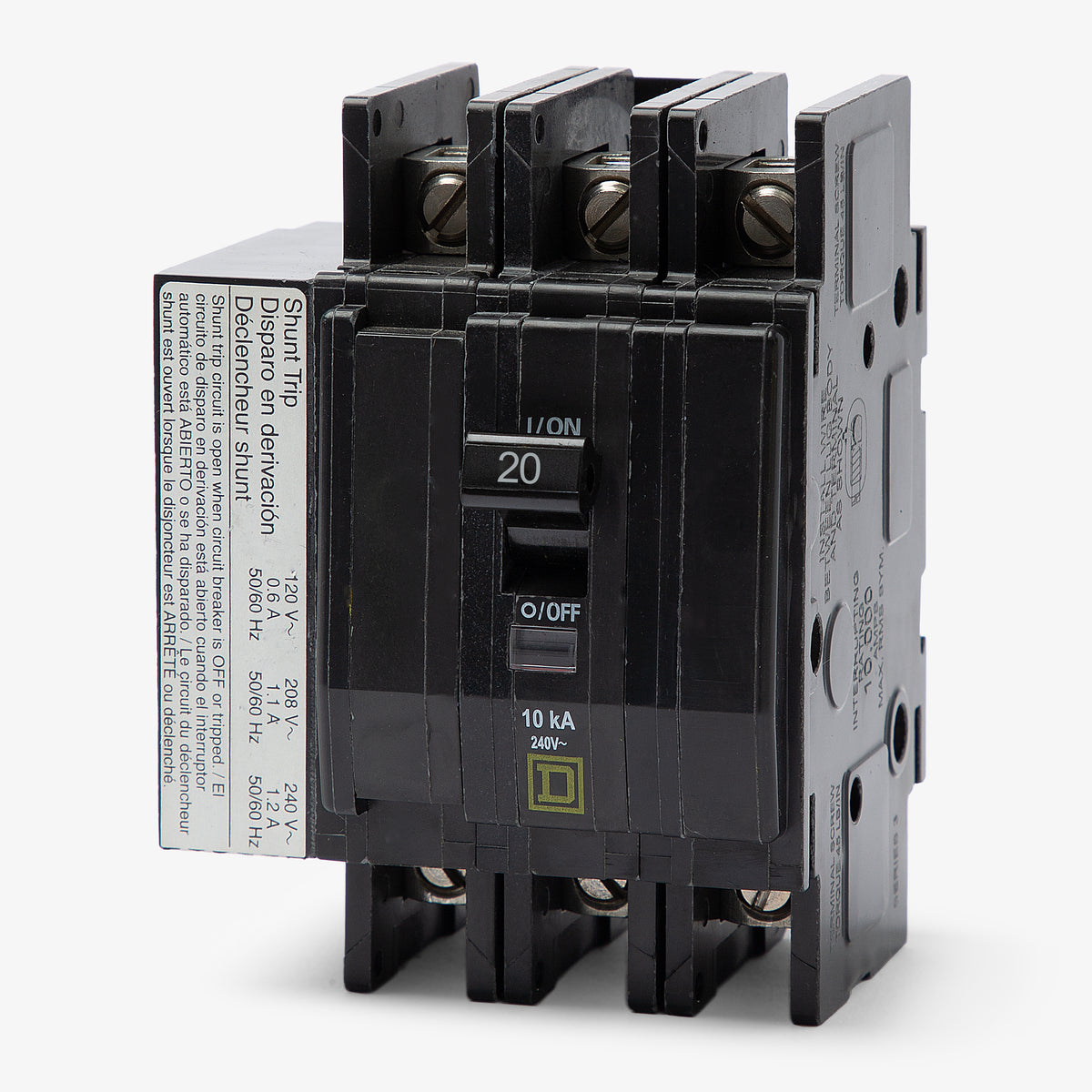

Square D QOU3201021 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
Description
Engineered for advanced control applications, the Square D QOU3201021 is a 20A, 3-pole miniature circuit breaker equipped with a factory-installed shunt trip mechanism. This allows the breaker to be tripped remotely via an external voltage signal. It utilizes a flexible unit-mount design compatible with DIN rails and OEM enclosures. It delivers a 10 kAIC interrupt rating at 240VAC, includes Visi-Trip status indication, and features reversible box lugs for simplified wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU320-1021 |
| Series | QOU |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat does the 1021 suffix mean on the QOU3201021 part number?
The 1021 suffix designates a factory-installed shunt trip. This allows the breaker to be opened remotely via an external 120VAC to 240VAC control signal, which is commonly used in advanced control panels and emergency shutdown systems.
How is the QOU3201021 secured within an enclosure?
As a unit-mount breaker, it does not plug into a traditional load center bus. Instead, it features a cable-in, cable-out design and can be surface-mounted, flush-mounted, or attached to a standard DIN rail using the appropriate mounting hardware.

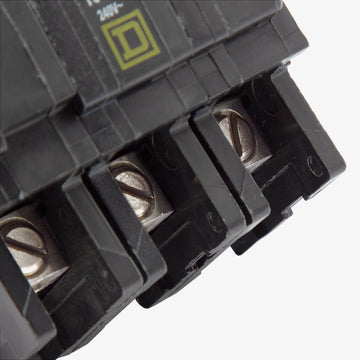

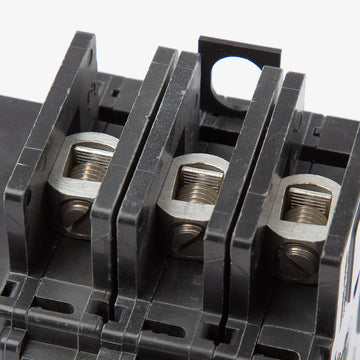

What type of conductors can be terminated on this breaker?
The integrated box lugs are rated for both aluminum and copper wire. They accept conductor sizes ranging from 14 AWG to 2 AWG, providing flexibility for various field wiring requirements.
How does the Visi-Trip feature assist with maintenance on this breaker?
The Visi-Trip indicator provides a highly visible red flag when the breaker trips due to an overcurrent condition or a remote shunt trip signal. This allows electricians to quickly identify the faulted circuit in a crowded control panel.
Can this breaker be used in direct current control circuits?
Yes, in addition to its standard AC ratings, this breaker is UL listed for DC applications up to 48VDC. It provides a 5kA interrupting capacity for DC control panels and battery systems.
Is the QOU3201021 suitable for 3-phase equipment?
Yes, this is a 3-pole breaker designed for 3-phase applications. It features an internal common trip mechanism that ensures all three poles open simultaneously during a fault or when the shunt trip is activated.
