Square D QOU3401021 Miniature Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
Square D
QOU3401021
Miniature Circuit Breaker
Brand
Square D
SKU
QOU3401021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

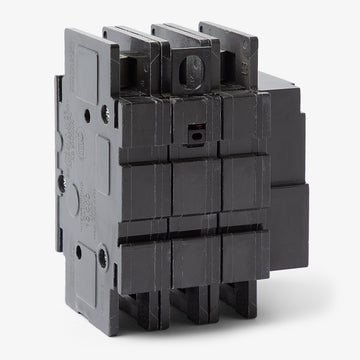

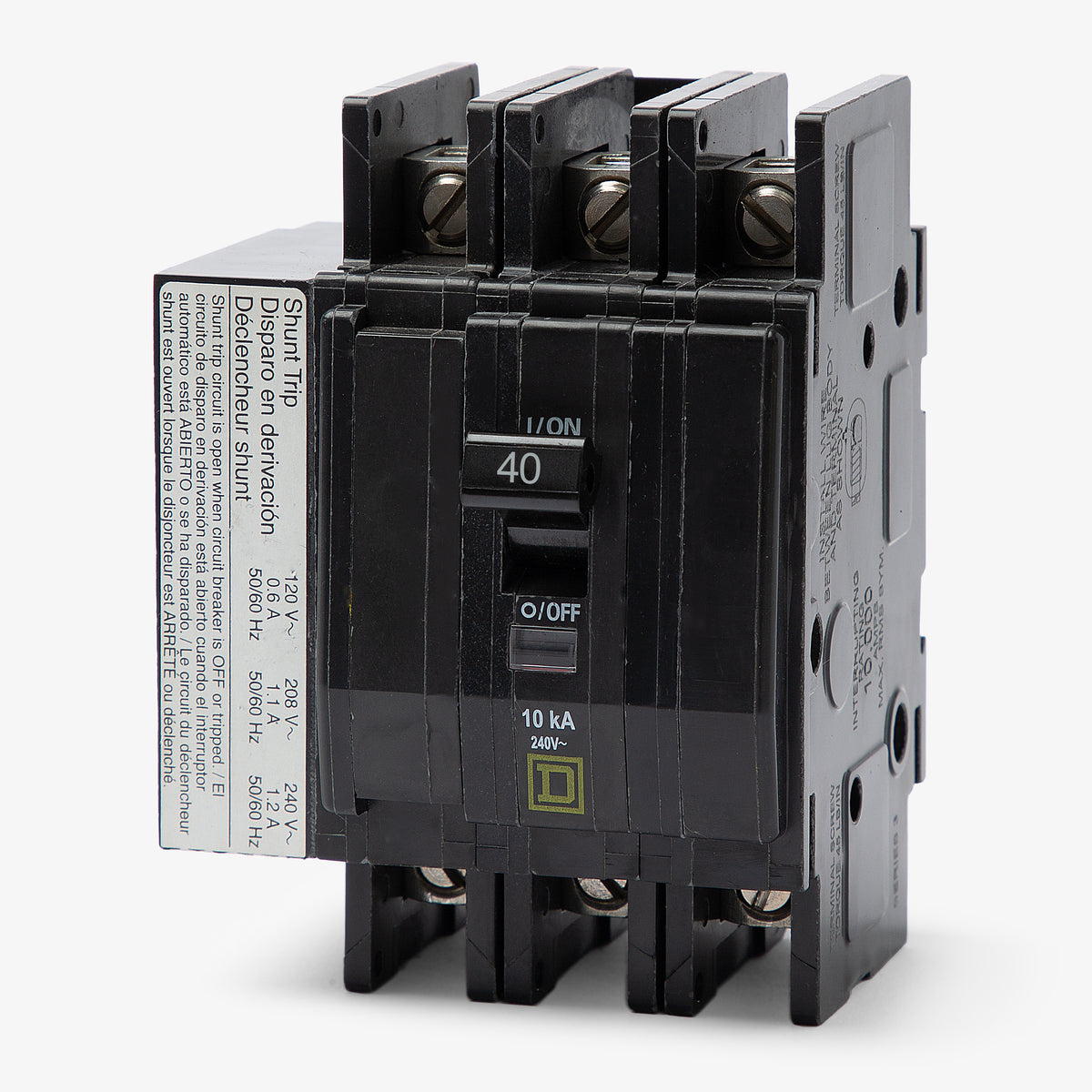

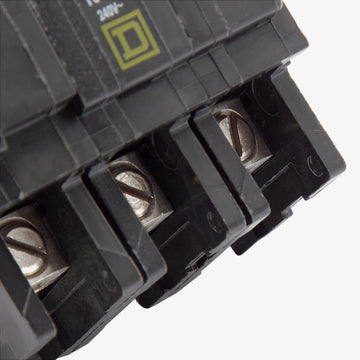

Square D QOU3401021 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
QOB340VH1021 - 40A 3 Pole Miniature Circuit Breaker
Description
Designed for advanced control, the Square D QOU3401021 is a 3-pole, 40A miniature circuit breaker featuring a factory-installed shunt trip. This thermal-magnetic breaker provides reliable overcurrent protection while enabling remote tripping capabilities. The unit mount configuration allows for straightforward installation into DIN rail systems, OEM panels, and control enclosures. With a 10 kAIC rating at 240VAC, it delivers robust performance, is HACR rated, and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QOU |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhat does the 1021 suffix indicate on the QOU3401021 circuit breaker?
The 1021 suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip, allowing for remote tripping capabilities.
How is the Square D QOU3401021 breaker mounted?
This breaker features a unit mount design. It can be surface-mounted, flush-mounted, or installed on standard DIN rail systems, making it versatile for OEM panels and control enclosures.

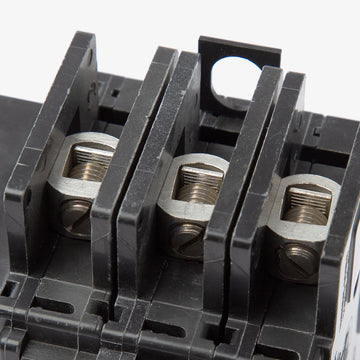

What are the wire size requirements for the QOU3401021 box lugs?
The feed-thru box lugs are designed to accept either aluminum or copper conductors ranging from 14 AWG to 2 AWG, providing flexibility for various panel wiring configurations.
Can the QOU3401021 be used in DC control circuits?
Yes, in addition to its AC ratings, this breaker is rated for 48VDC applications with an interrupting capacity of 5 kAIC, making it suitable for DC control panels and enclosures.
Is the QOU3401021 compatible with standard QO load centers?
No, the QOU series features a unit mount, feed-thru design intended for DIN rails, enclosures, and OEM panels. It will not plug into standard QO load centers or bolt into QOB panelboards.
Does the QOU3401021 feature a visual trip indicator?
Yes, Square D QOU breakers feature a Visi-Trip indicator that provides clear visual confirmation when the breaker has tripped due to an overcurrent or short circuit condition.
