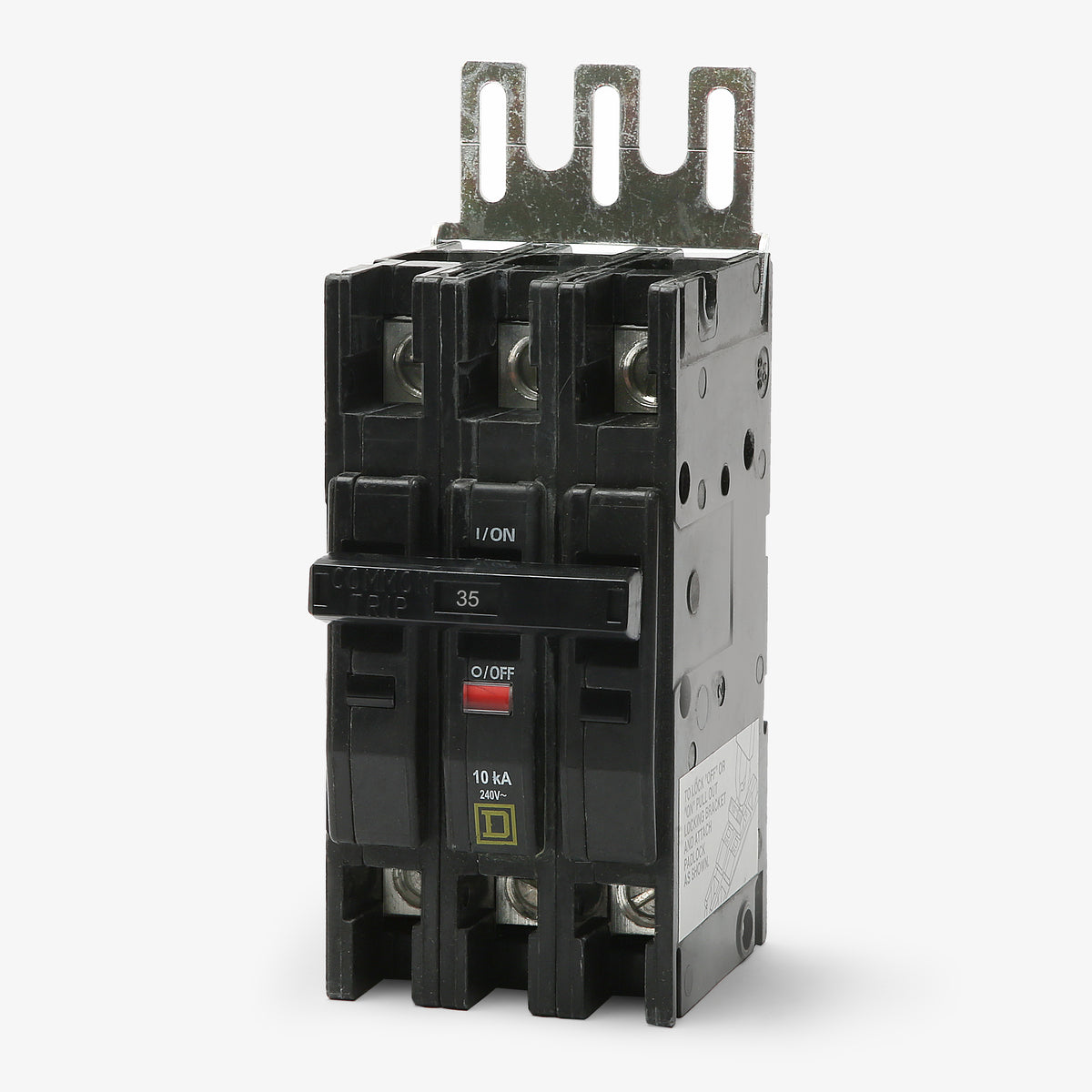

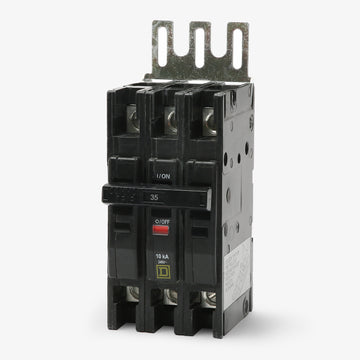

Square D QOU335 Miniature Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Square D
QOU335
Miniature Circuit Breaker
Brand
Square D
SKU
QOU335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU335 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
Description
Part of the Square D QO family, the QOU335 is a 3-pole, 35A miniature circuit breaker. It is engineered for OEM panels, control panels, and enclosures. This unit mount breaker easily integrates into DIN rail systems. It features reversible box lugs for 14-2 AWG wire, allowing for flexible surface, flush, or DIN rail mounting. Rated at 10 kAIC at 240VAC, it delivers reliable thermal-magnetic protection. The built-in Visi-Trip indicator allows for quick identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU335 |
| Series | QOU |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Control Panels, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Mounting Feet, Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
Product FAQs
6 answersHow is the Square D QOU335 mounted in an enclosure?
The QOU335 is a unit-mount breaker that does not plug into a traditional panel bus. It can be installed on standard DIN rail systems, surface mounted, or flush mounted using mounting feet.
What is the difference between Square D QOU and QO circuit breakers?
QOU breakers, like the QOU335, are unit-mount breakers with box lugs on both the line and load sides for standalone or DIN rail mounting. Standard QO breakers are plug-on devices designed to connect directly to a load center bus bar.
What wire sizes and types are compatible with the QOU335 terminals?

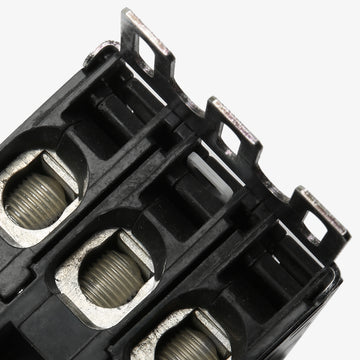

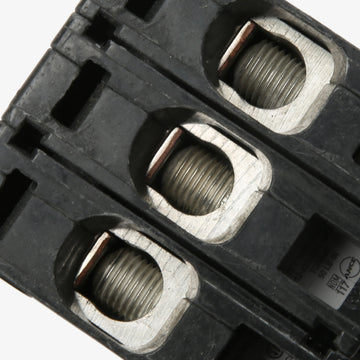

The QOU335 features reversible line and load box lugs that accept 14 to 2 AWG copper or aluminum wire. This cable-in, cable-out design is ideal for feed-thru connections in OEM and control panels.
Is the QOU335 suitable for DC voltage applications?
Yes, in addition to its AC ratings, the QOU335 is rated for 48VDC with a 5 kAIC interrupting capacity, making it suitable for DC control circuits and specific OEM equipment.
Does the QOU335 feature a tripped circuit indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. It provides a highly visible red signal when the breaker has tripped due to an overcurrent or short circuit event, allowing for quick troubleshooting.
Can I field-install a shunt trip or auxiliary switch on the QOU335?
QOU series circuit breakers support accessories like shunt trips, auxiliary switches, and alarm switches, but these are factory-installed components. They cannot be field-installed and must be ordered with the correct catalog suffix.
