ABB / General Electric THQL1115 Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1115
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

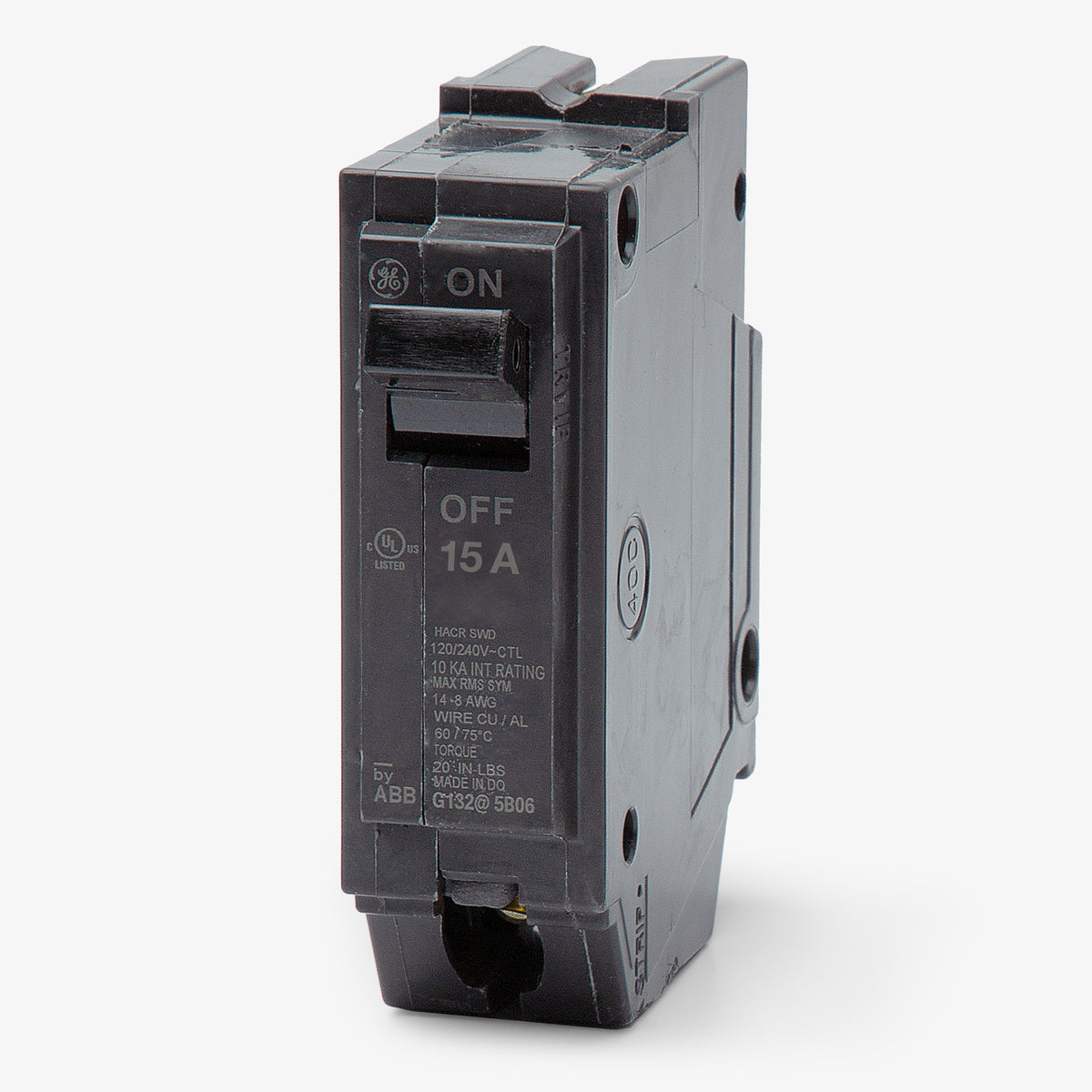

ABB / General Electric THQL1115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115 |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | HACR, NEMA AB 1, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL1115 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115-R |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | HACR, NEMA AB 1, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL1120
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1120WL
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1125
25A 1 Pole Miniature Circuit Breaker
Description

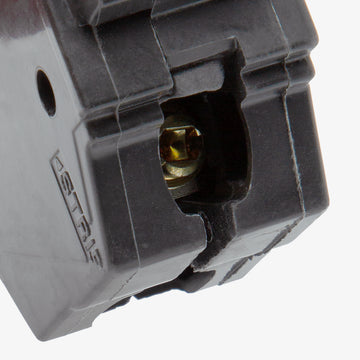

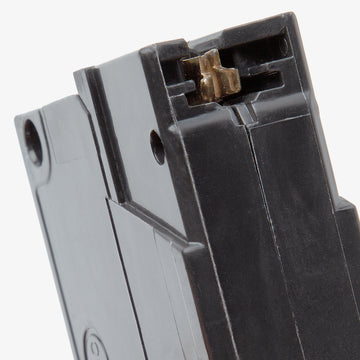

Built for residential and commercial distribution, this 15A single-pole component provides standard overload protection. It features a quick-make, quick-break mechanism for consistent operation. The unit mounts into GE PowerMark Gold and A-Series panelboards. It utilizes a 1-inch footprint with box lug terminals accepting 14-8 AWG copper wire. Rated for 10kAIC at 120/240VAC, it carries HACR and SWD classifications, making it suitable for HVAC and fluorescent lighting switching duty.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115 |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | HACR, NEMA AB 1, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
5 answersIs the THQL1115 circuit breaker compatible with GE and ABB load centers?
Yes. It mounts in standard 1-inch spaces in GE PowerMark Gold, ABB ReliaHome, and GE A-Series panelboards. ABB acquired GE Industrial Solutions and continues to manufacture these breakers, ensuring they are fully interchangeable.
What is the difference between the THQL1115 and the THQP115?
The THQL1115 is a standard full-size breaker that requires a 1-inch space in the panel. The THQP115 is a half-size breaker that requires only a 1/2-inch space. While both are 15-amp, 1-pole breakers for compatible panels, they mount differently depending on the panel interior.
Does the THQL1115 provide AFCI or GFCI protection?
No, this is a standard thermal magnetic circuit breaker. It does not contain arc fault or ground fault circuitry. For combination arc fault protection, use catalog number THQL1115AF2. For ground fault protection, use THQL1115GF.
Is the THQL1115 rated for HACR and SWD applications?
Yes. It carries both an HACR rating for heating, air conditioning, and refrigeration equipment, and an SWD (Switching Duty) rating, meaning it is approved for switching 120-volt fluorescent lighting circuits.
Can the THQL1115 be back-fed?
Yes. This standard non-interchangeable trip breaker is rated as suitable for reverse feed. If used as a back-fed main breaker, it must be secured to the load center with an approved hold-down retainer kit.
