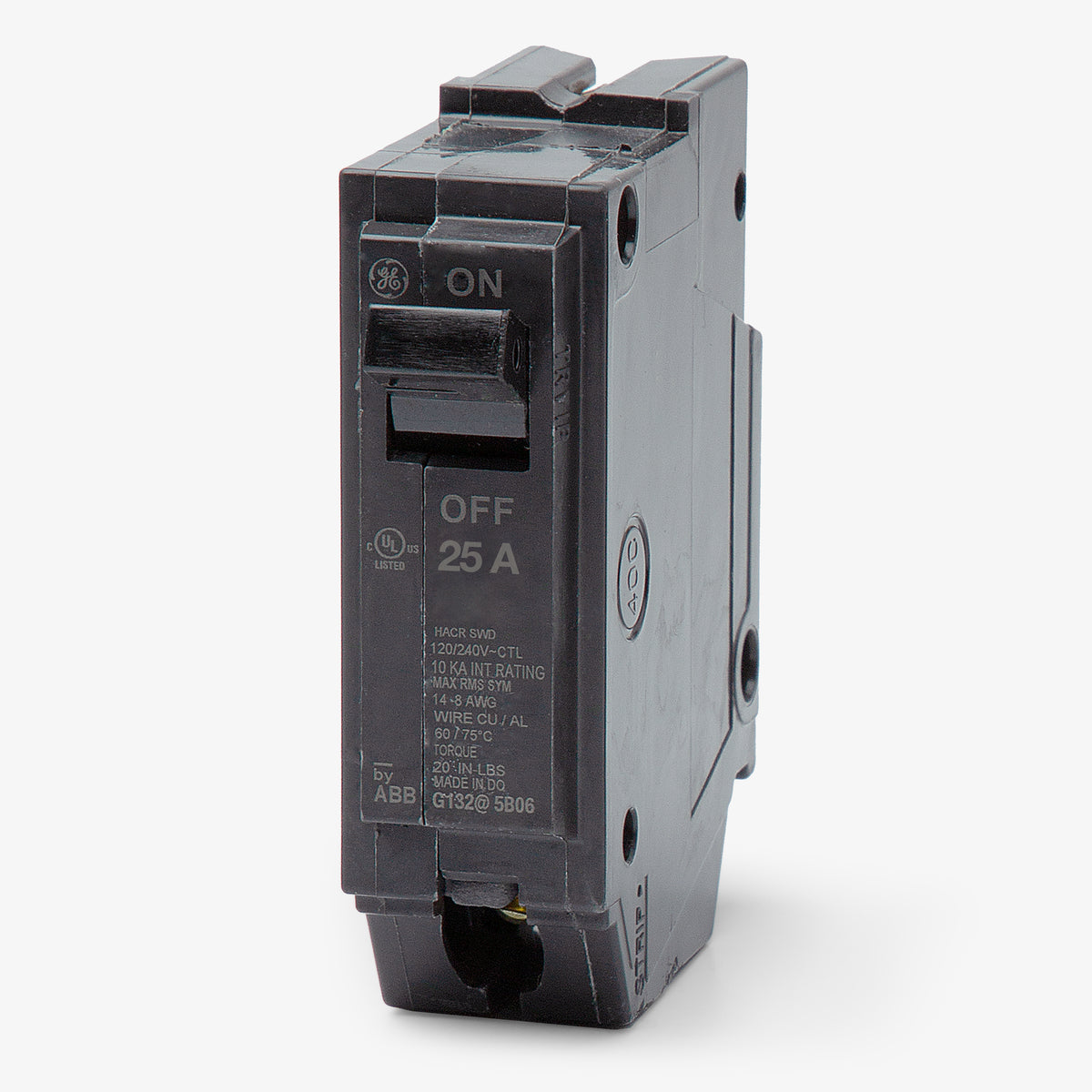

ABB / General Electric THQL1125 Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1125
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1125 |
| Series | THQL |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL1125 - 25A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1125-R |
| Series | THQL |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Similar Items

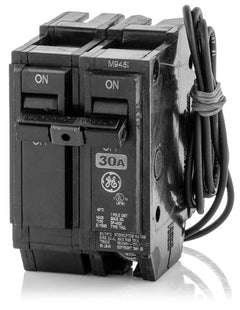

ABB / General ElectricTHQL1130ST1
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1120
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1120WL
20A 1 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the GE THQL1125 is a 25A, 1-pole miniature circuit breaker for residential and commercial use. It provides dependable protection for standard branch circuits. This plug-on unit fits GE PowerMark Gold load centers, ABB ReliaHome panels, and GE A-Series panelboards. Box lug terminals accept 14-8 AWG copper or 12-8 AWG aluminum wiring. With a 10 kAIC interrupt rating, it features a quick-make/quick-break mechanism to minimize arcing and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1125 |
| Series | THQL |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|

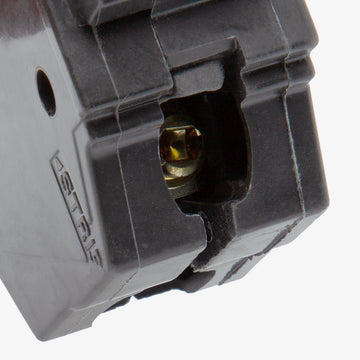

| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat load centers are compatible with the THQL1125?
The THQL1125 is a plug-on breaker designed for use in GE PowerMark Gold load centers, ABB ReliaHome load centers, and GE A-Series panelboards.
How much panel space does the THQL1125 require?
As a 1-pole Q-Line breaker, it requires a single 1-inch space in your load center or panelboard.
Is there a difference between the GE THQL1125 and the ABB THQL1125?
No, they are the exact same product. ABB acquired GE Industrial Solutions, so GE Q-Line breakers are now manufactured and branded by ABB. They retain the exact same form, fit, and function.
Is the THQL1125 suitable for HVAC equipment?
Yes, this breaker is HACR rated, which means it is approved for use with heating, air conditioning, and refrigeration equipment that requires a 25-amp overcurrent protection device.
Does the THQL1125 include ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not feature GFCI or AFCI capabilities.

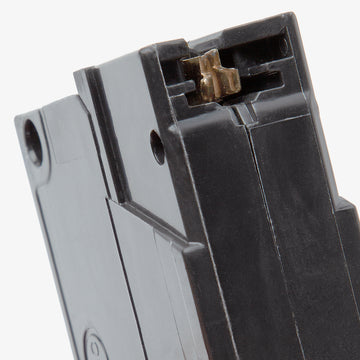

How does the THQL1125 mount into the panel?
It utilizes a plug-on connection type. The breaker snaps directly onto the bus bar of a compatible panelboard or load center without the need for a DIN rail.
