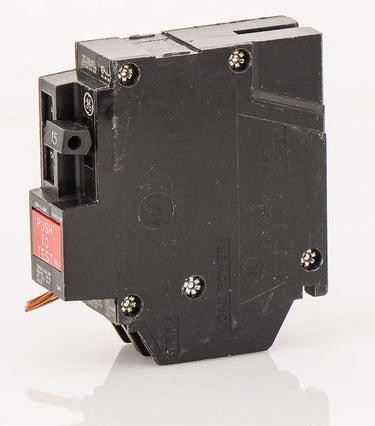

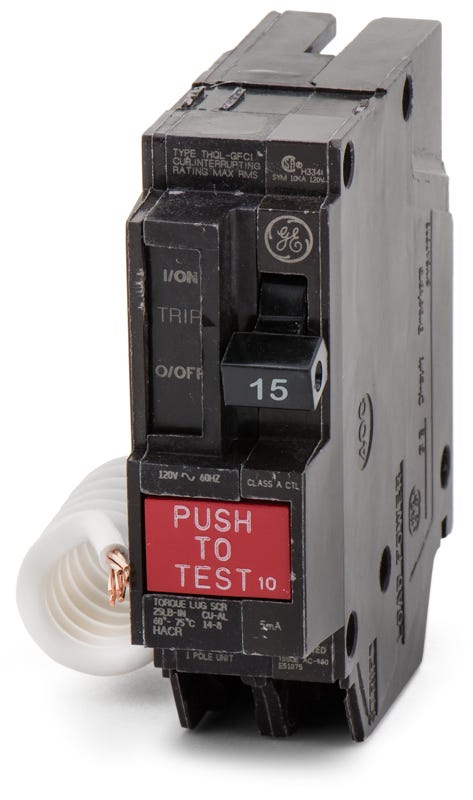

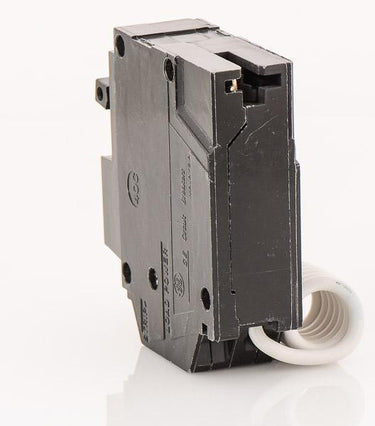

ABB / General Electric THQL1115GF GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
ABB / General Electric THQL1115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1115GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115GF |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQL1115GF - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115GF-R |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Description
Delivering reliable Class A 5mA ground fault protection, this 15-amp single-pole breaker ensures NEC compliance for wet and damp locations. It features a standard pigtail neutral connection for traditional wiring setups. Designed to mount into GE PowerMark Gold load centers, A-Series panelboards, and ABB ReliaHome enclosures. While this specific model utilizes standard GFCI technology, it provides the essential 10kAIC rating required for residential and light commercial applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115GF |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, SWD, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich electrical panels are compatible with the THQL1115GF breaker?
This plug-on breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, AQ Lighting panels, and ABB ReliaHome load centers.
What is the difference between the THQL1115GF and the THQL1115GFT?
The THQL1115GFT is the newer, direct replacement version that includes an automatic self-test feature to ensure the ground fault circuitry is functioning properly. Both models share the same physical dimensions, ratings, and panel compatibility.
What level of ground fault protection does this breaker provide?
It provides Class A ground fault protection, which is designed to trip when it detects a ground fault current of 5mA. This meets NEC requirements for protecting personnel in wet or damp locations such as bathrooms, kitchens, and outdoor receptacles.
How is the neutral wire connected for this GFCI breaker?

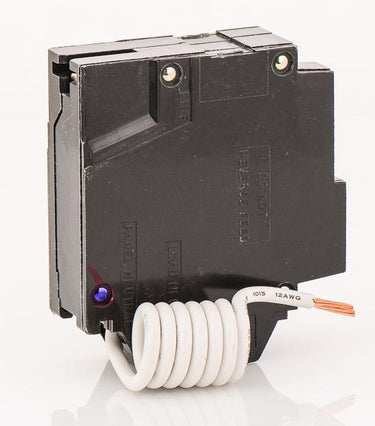

This breaker features a standard pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in your panel to ensure proper ground fault detection.
What wire sizes are accepted by the box lugs on this 15A breaker?
The terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
