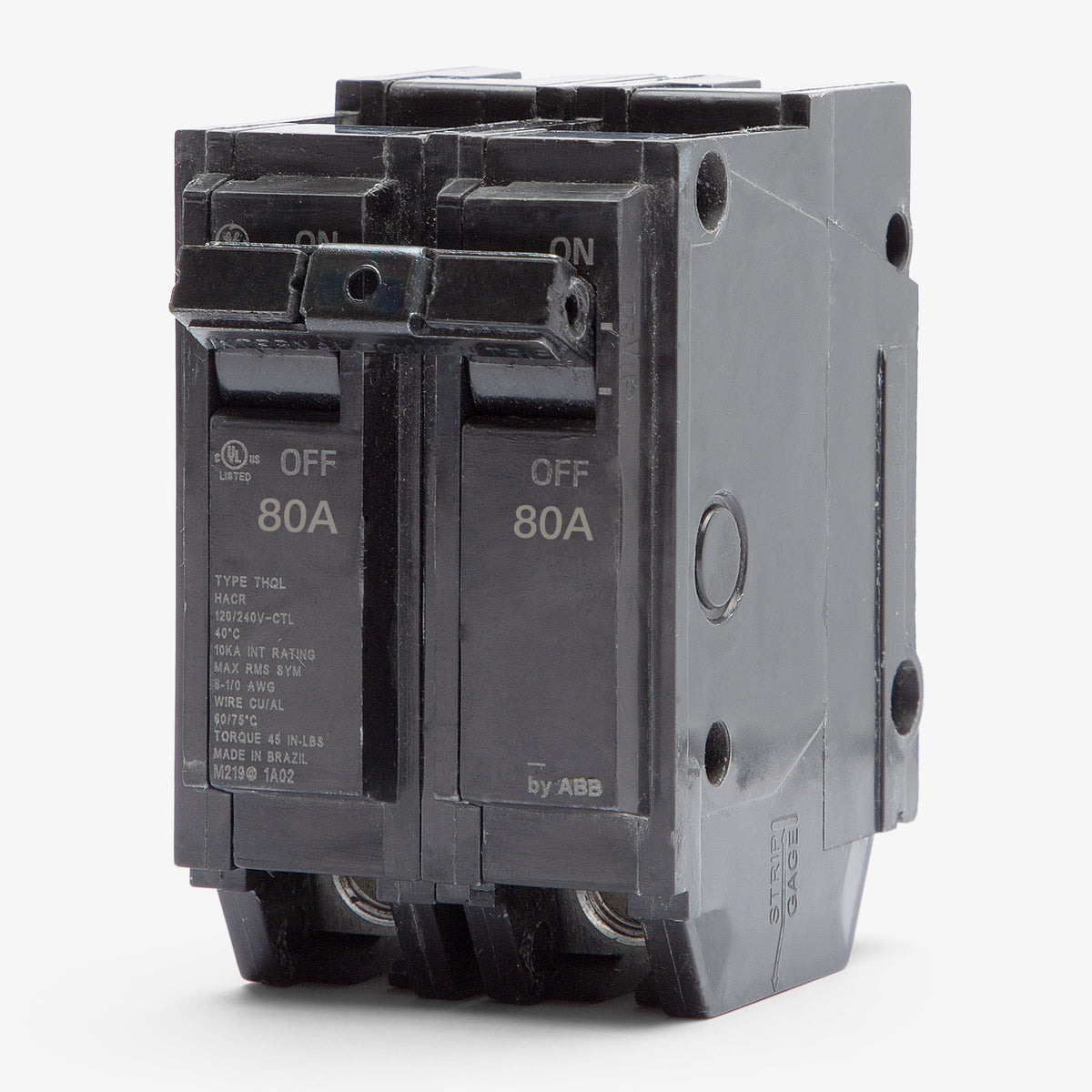

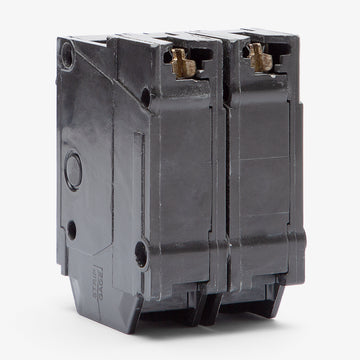

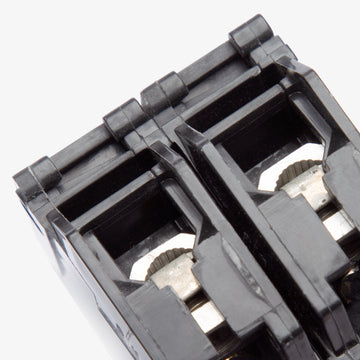

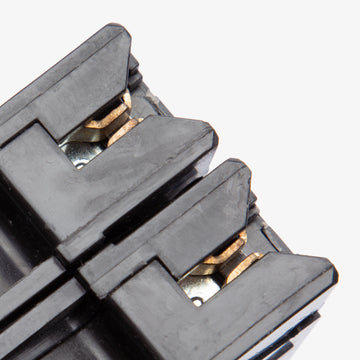

ABB / General Electric THQL2180 Miniature Circuit Breaker
- 80A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2180
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2180
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2180 |
| Series | THQL |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2180 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2180-R |
| Series | THQL |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2170
70A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2170ST1
70A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL21100
100A 2 Pole Miniature Circuit Breaker
Description
Built for heavy residential applications, this 80-amp miniature circuit breaker provides essential long-time and instantaneous trip functions. The Q-Line series component ensures consistent performance. It mounts into GE PowerMark Gold and modern ABB ReliaHome load centers. The plug-on design allows for secure placement within compatible panelboards. Featuring a 10kAIC rating at 120/240V, it handles standard fault currents utilizing a reliable quick-make, quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2180 |
| Series | THQL |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat load centers are compatible with the THQL2180 circuit breaker?
The THQL2180 is designed for use in GE PowerMark Gold and ABB ReliaHome load centers that accept 1-inch per pole Q-Line plug-in breakers.
How much panel space does the THQL2180 require?
As a 2-pole THQL breaker, it requires two standard 1-inch spaces, taking up a total of 2 inches on the bus bar.
What is the recommended lug torque for the THQL2180?
For the box lugs, the recommended tightening torque is 45 in-lb for #6 to #4 AWG wire, and 50 in-lb for #3 to 1/0 AWG wire.
Can the THQL2180 be used as a back-fed main breaker?
Yes, it can be used as a back-fed main breaker when installed with the appropriate main breaker retainer kit, such as the THQLRK1, THQLRK2, or THQLRK3, depending on your specific PowerMark load center.
Is the THQL2180 HACR rated for HVAC equipment?
Yes, this breaker is UL Listed and HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires an 80A circuit.
Are ABB and GE THQL2180 breakers the same?
Yes. ABB acquired GE Industrial Solutions, so THQL breakers may be branded as ABB, GE, or both. They are the exact same Q-Line breakers and are fully interchangeable in listed panels.
Can I use a THQP breaker instead of the THQL2180 to save space?
No. The THQP series consists of half-inch width breakers, but they are only available up to 50 amps. For an 80A circuit, you must use the full-size 1-inch per pole THQL2180.
