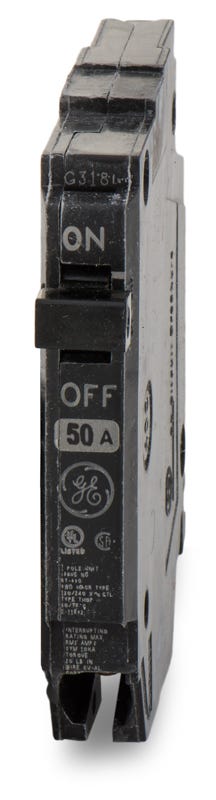

ABB / General Electric THQP150 Miniature Circuit Breaker
- 50A
- 1 Pole
- Plug-On
ABB / General Electric
THQP150
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP150 |
| Series | THQP |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Quantity
ABB / General Electric THQP150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP150-R |
| Series | THQP |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Designed to maximize panel space, the GE THQP150 is a 50A single-pole breaker that fits into a half-inch slot. This compact footprint allows homeowners and electricians to safely add high-amperage circuits to existing electrical systems. The plug-on device mounts into GE Q-Line and PowerMark Gold load centers. It is also an excellent cross-reference substitute for UBITB150 breakers. Rated at 10kAIC, this HACR-rated breaker features a trip-free mechanism and supports reverse feed wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP150 |
| Series | THQP |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
8 answersWhat is the difference between GE THQP and THQL circuit breakers?
THQL breakers are standard 1-inch wide plug-in breakers, while THQP breakers are 1/2-inch wide slim or half-size breakers designed to save space. The THQP150 requires a load center specifically designed to accept half-inch breakers.
Can I install the THQP150 in any GE load center?
No. While it fits many GE Q-Line and PowerMark Gold load centers, your specific panel must be designed to accept half-inch THQP breakers. Check the wiring diagram on your panel door to confirm THQP compatibility and approved slot locations.
How does the THQP150 mount into the panel?
The THQP150 uses a plug-in connection. Because it is a 1/2-inch breaker, it mounts onto specialized bus stabs in compatible GE load centers, allowing two THQP breakers to fit in the space of one standard 1-inch THQL breaker.
What wire sizes are compatible with the box lugs on the THQP150?
The box lugs on this 50A breaker accept 8 AWG to 4 AWG copper or aluminum wire.
Can the THQP150 be used as a replacement for UBITB150 breakers?
Yes, the GE THQP150 is a direct cross-reference substitute for UBITB150 circuit breakers in compatible load centers.
Does the THQP150 feature a trip-free mechanism?
Yes, it features a trip-free mechanism, meaning the breaker will trip internally even if the handle is held in the ON position during an overload or short circuit.
Is the THQP150 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
Can the THQP150 be reverse fed?
Yes, this thermal magnetic breaker supports reverse feed wiring, allowing it to be used in applications where power is fed from the load side.
