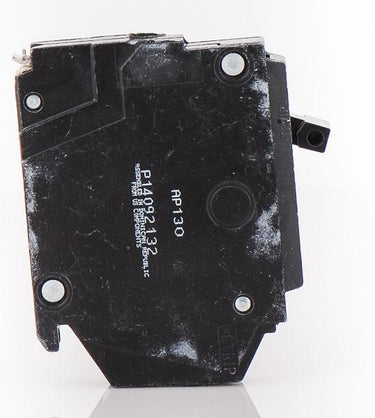

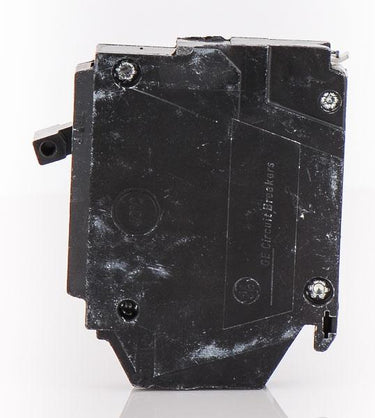

ABB / General Electric THQP130 Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
ABB / General Electric
THQP130
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP130 |
| Series | THQP |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQP130 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP130-R |
| Series | THQP |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Similar Items
25A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Handling up to 30 amps in a highly compact form factor, this single-pole breaker provides robust thermal-magnetic protection for demanding residential circuits. It installs smoothly into compatible GE Q-Line and PowerMark Gold panels, utilizing a half-inch footprint that maximizes available slots. Rated for 10kAIC at 120/240VAC, the unit features a quick-make, quick-break mechanism to minimize arcing and extends the life of your electrical system. It also replaces older UBITB130 components.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP130 |
| Series | THQP |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
Product FAQs
6 answersWhat panels are compatible with the THQP130 circuit breaker?
The THQP130 is designed for GE Q-Line and PowerMark Gold load centers. Because it is a 1/2-inch wide slimline breaker, it will only fit in panel slots specifically designed to accept THQP breakers. Check your panel label to confirm it accepts 1/2-inch breakers.
Can I use a THQP130 in place of a THQL1130?
Not interchangeably in all slots. While both are 30A single-pole GE breakers, the THQP130 is a 1/2-inch wide slimline breaker, whereas the THQL1130 is a standard 1-inch wide breaker. The THQP130 can only be installed in panel positions that have the specific bus bar tabs required for half-inch breakers.
What is the recommended torque specification for the THQP130 terminals?
For the 8-4 AWG copper or aluminum wire accepted by the THQP130, the recommended terminal torque is 50 in-lb.
How much panel space does the THQP130 require?
The THQP130 is a 1-pole slimline breaker that requires 1/2 inch of panel space, allowing two THQP breakers to fit in a standard 1-inch slot if the panel bus bar supports it.
Is the GE THQP130 HACR rated?
Yes, the THQP130 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 30A, 1-pole breaker.
Is the THQP130 the same as the TQP130?
Yes, TQP130 is an older designation for the same 1/2-inch wide, 30A single-pole breaker. The THQP130 is the direct replacement and is fully compatible where TQP130 breakers were previously installed.
