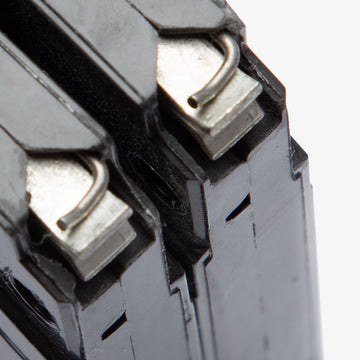

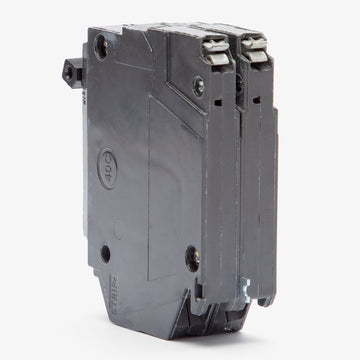

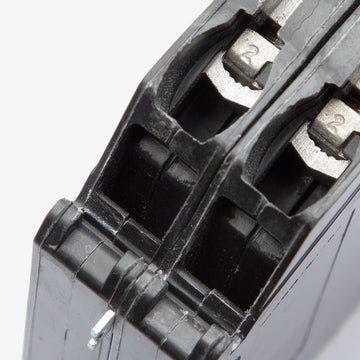

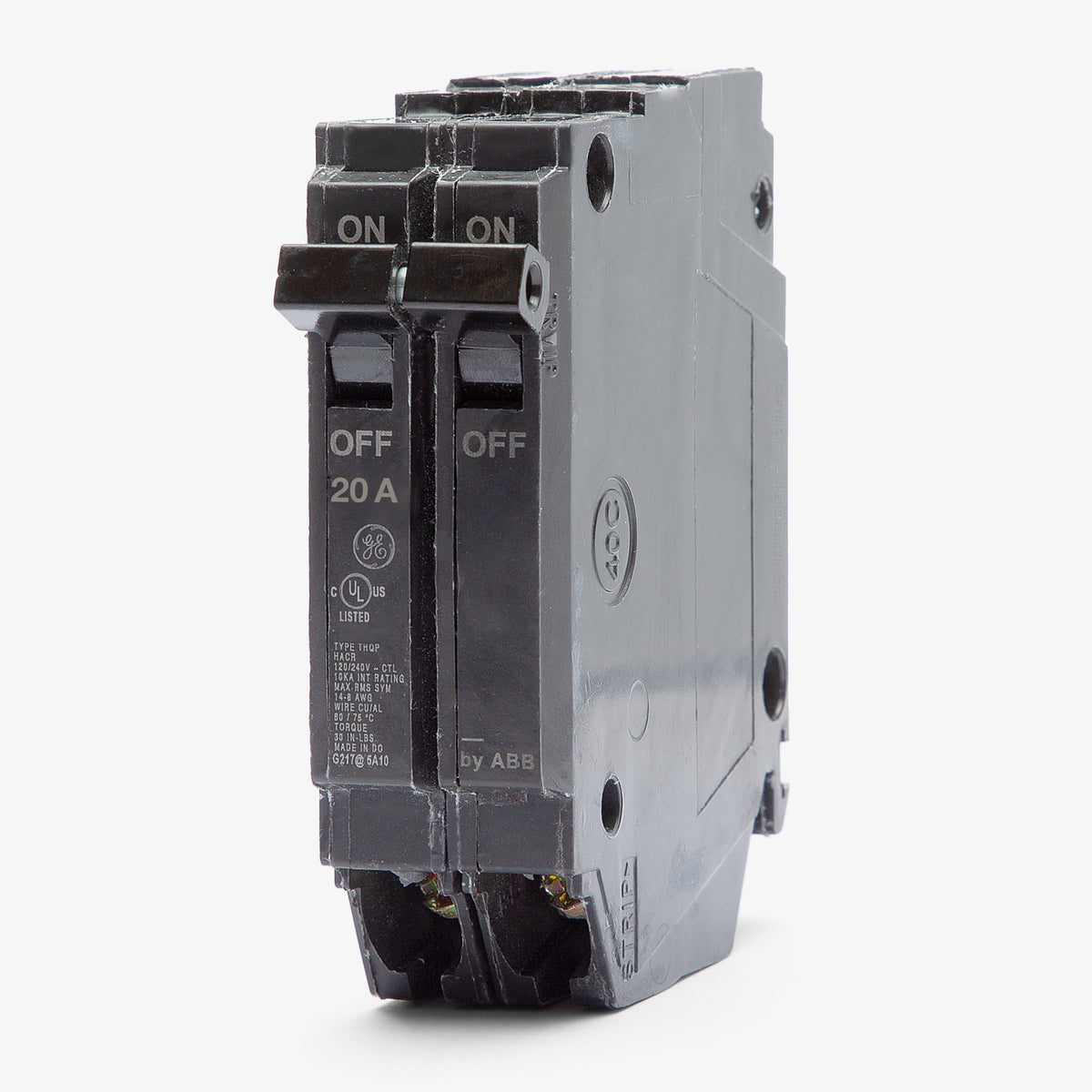

ABB / General Electric THQP220 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
ABB / General Electric
THQP220
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP220 |
| Series | THQP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQP220 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP220-R |
| Series | THQP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Similar Items
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description
Maximizing enclosure capacity, the GE THQP220 provides essential overload defense for 20-amp branch circuits. The two-pole configuration utilizes a slim half-inch width per pole, allowing contractors to add more lines without upgrading the box. This unit installs into PowerMark Gold and Q-Line load centers that accept half-size components. It serves as an exact fit for residential setups requiring plug-on connections. Carrying a 10kAIC rating, it features quick-make/quick-break functionality.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP220 |
| Series | THQP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat is the difference between GE THQP and THQL circuit breakers?
THQP breakers are half-inch wide per pole, designed to save space in compatible panels. A 2-pole THQP breaker takes up 1 inch of total panel space. THQL breakers are full-size, measuring 1 inch wide per pole. You can only use THQP breakers in GE load centers that specifically list them as acceptable on the panel label.
Which load centers are compatible with the THQP220 circuit breaker?
This breaker is designed for use in GE Q-Line and PowerMark Gold load centers. However, it will only fit in panel positions that are specifically notched and labeled to accept half-inch THQP breakers.
How much panel space does the THQP220 require?
The THQP220 is a 2-pole thin breaker. Because each pole is 1/2-inch wide, the entire breaker requires 1 inch of total panel space, which is equivalent to one standard full-size slot.
Is the THQP220 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 20-amp, 2-pole circuit.
What wire sizes are accepted by the box lugs on the THQP220?
The terminals accept 14 AWG to 8 AWG copper wire, or 12 AWG to 8 AWG aluminum wire.
Does the THQP220 feature a common trip mechanism?
Yes, this 2-pole breaker includes an internal common trip. If one pole experiences an overload or short circuit, both poles will trip simultaneously to disconnect power to the entire 240V circuit.
Are ABB and GE THQP breakers the same?
Yes. ABB acquired GE Industrial Solutions, so THQP breakers may be branded as either ABB or General Electric. They are the exact same product and are fully interchangeable in compatible GE panels.
