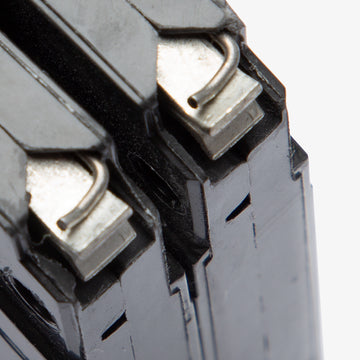

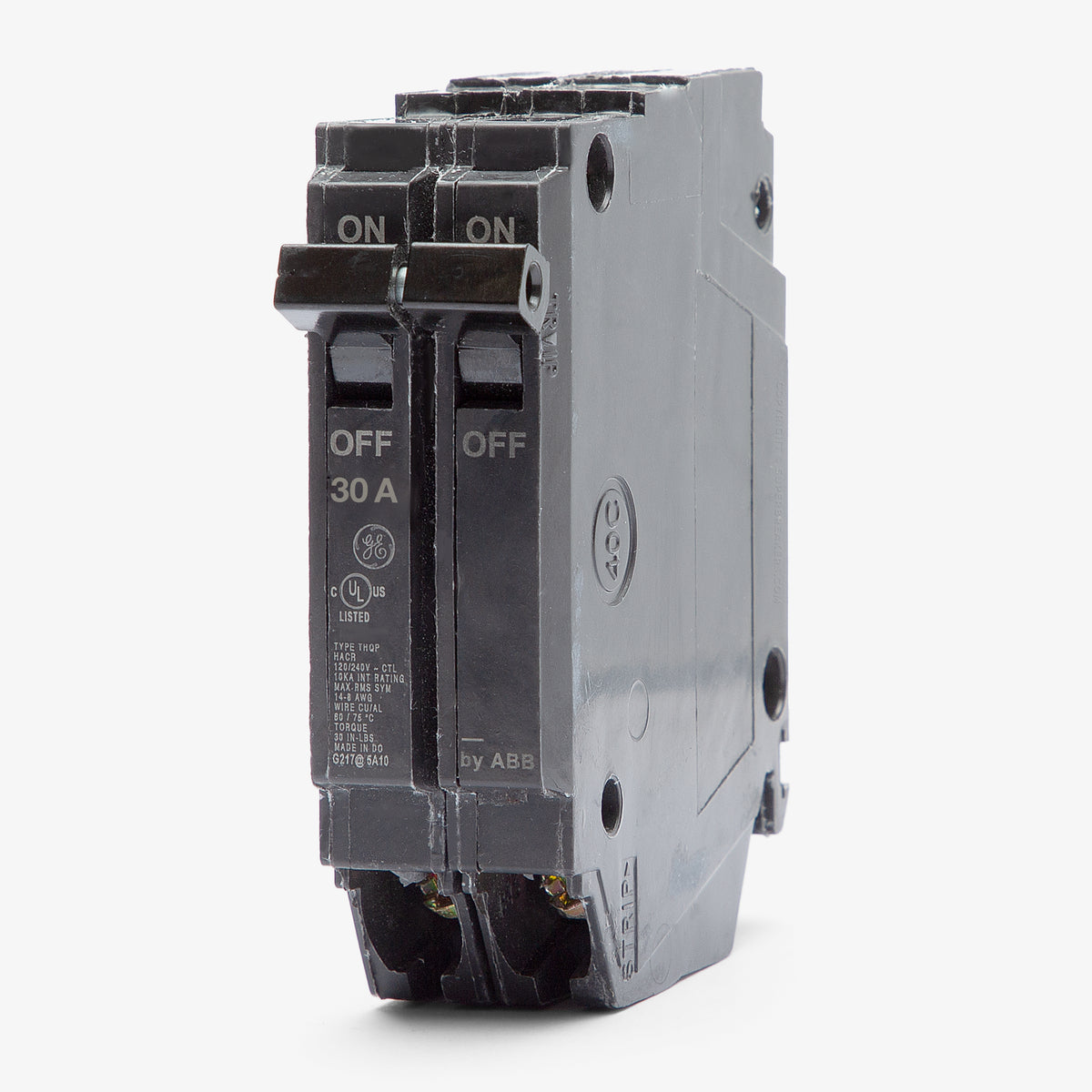

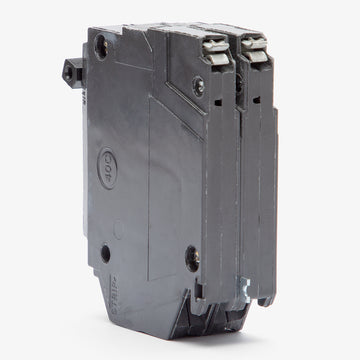

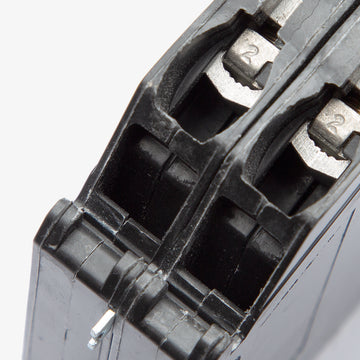

ABB / General Electric THQP230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
ABB / General Electric
THQP230
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP230 |
| Series | THQP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Half-Size (1/2 inch width per pole) |
Quantity
ABB / General Electric THQP230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP230-R |
| Series | THQP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Half-Size (1/2 inch width per pole) |
Similar Items
25A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Accommodating heavy-duty residential loads, this 30A half-size breaker is frequently utilized for electric dryers, water heaters, and HVAC equipment. The space-saving Q-Line design allows two poles to fit within a single one-inch space. It snaps into GE PowerMark Gold or Plus load centers and serves as an exact substitute for older TQP230 models. Equipped with an internal common trip and a 10kAIC rating, it provides dependable thermal-magnetic protection for 240V household circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP230 |
| Series | THQP |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Half-Size (1/2 inch width per pole) |
Product FAQs
6 answersCan I install the THQP230 in any slot of my GE load center?
No. While it fits compatible GE PowerMark Gold and Plus load centers, the THQP230 is a half-inch per pole space-saving breaker. It must be installed in designated panel slots configured with perpendicular busbar stabs designed specifically for the THQP mounting clip. Check your panel's wiring diagram to verify which slots accept tandem breakers.
What is the physical difference between GE THQP and THQL series breakers?
THQP breakers are half the width of standard breakers, measuring 1/2-inch per pole. The 2-pole THQP230 occupies a single 1-inch space in your panel. In contrast, standard THQL breakers measure 1-inch per pole, meaning a 2-pole THQL requires two full 1-inch spaces. Your panel must explicitly list THQP compatibility.
Does the THQP230 require a manual handle tie for 240V circuits?
No. This 2-pole breaker features an internal common trip mechanism and a factory-installed handle tie. It will simultaneously disconnect both poles during an overload or short circuit to ensure safe operation.
Is the THQP230 suitable for HVAC and refrigeration loads?
Yes. This circuit breaker is HACR rated, making it approved for heating, air conditioning, and refrigeration equipment applications that require circuit protection.
Why might this breaker arrive with ABB branding instead of GE?
Following ABB's acquisition of GE Industrial Solutions, newly manufactured THQP circuit breakers may carry the ABB brand name or logo. These breakers remain identical in form, fit, and function to legacy General Electric hardware.
Can I use this THQP breaker in a Square D, Siemens, or Eaton panel?
No. The THQP230 is uniquely engineered for compatible GE load centers. It is not UL listed or physically compatible with panels from Square D, Siemens, Eaton, or other competing manufacturers.
