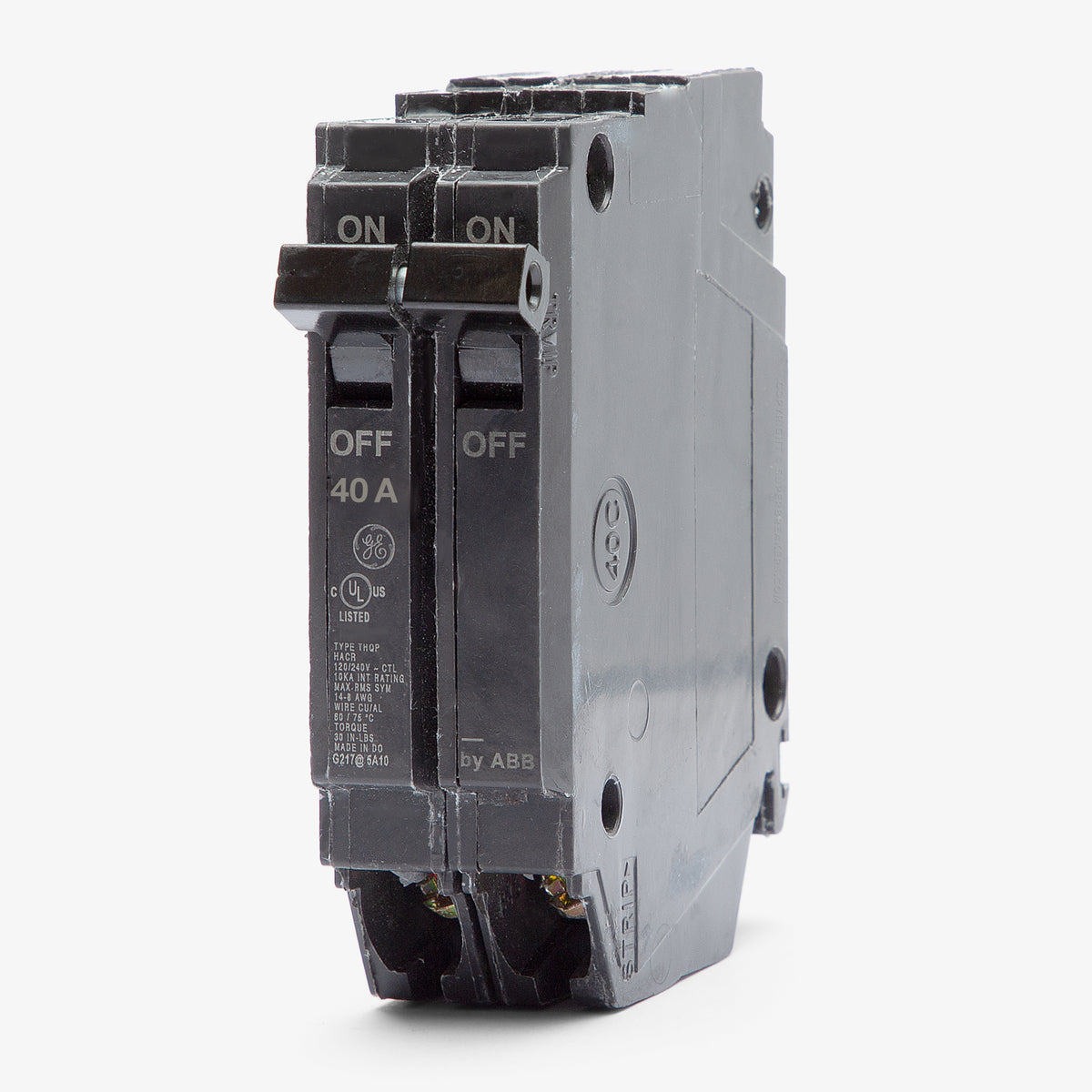

ABB / General Electric THQP240 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQP240
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP240 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP240 |
| Series | THQP |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQP240 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP240-R |
| Series | THQP |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Similar Items
50A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the THQP240 is a 40-amp, two-pole miniature breaker designed for residential power distribution. Its compact profile allows electricians to maximize circuit capacity in tight spaces. This plug-on breaker mounts into GE PowerMark Gold and Q-Line load centers. It accepts 8-4 AWG copper or aluminum wiring via standard box lug terminals. Rated for 10 kAIC at 120/240V, it utilizes thermal-magnetic trip technology and features a space-saving half-inch per pole design.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP240 |
| Series | THQP |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat is the difference between GE THQP and THQL series breakers?
THQP breakers, like the THQP240, are half-size breakers measuring 1/2 inch per pole. THQL breakers are standard full-size breakers measuring 1 inch per pole. The 2-pole THQP240 takes up 1 inch of total panel space, whereas a 2-pole THQL breaker requires 2 inches. THQP breakers only fit in panel slots specifically designed for them.
Can I install the THQP240 in any GE Q-Line load center?
No. The THQP240 is a half-size breaker and will only fit in GE or PowerMark Gold panels that have specific slots designed to accept THQP breakers. Attempting to force a THQP breaker into a standard THQL-only slot can damage the bus bar.
What are the terminal torque specifications for the THQP240?
For the box lug terminals, tighten 8 AWG copper or aluminum wire to 40 in-lb, and 6 AWG to 4 AWG wire to 45 in-lb.
Is the THQP240 HACR rated?
Yes, the THQP240 is HACR rated, making it suitable for protecting compatible heating, air conditioning, and refrigeration circuits.
Does the THQP240 feature an internal common trip?
Yes, this 2-pole breaker features an internal common trip mechanism. If an overload or short circuit occurs on either leg, both poles will trip simultaneously to disconnect power.
Can I replace a THQP240 with a standard THQL breaker?
You can only replace a THQP240 with a standard 2-pole THQL breaker if your panel has enough available physical space. The THQP240 occupies 1 inch of space, while a 2-pole THQL breaker requires 2 inches of space.
