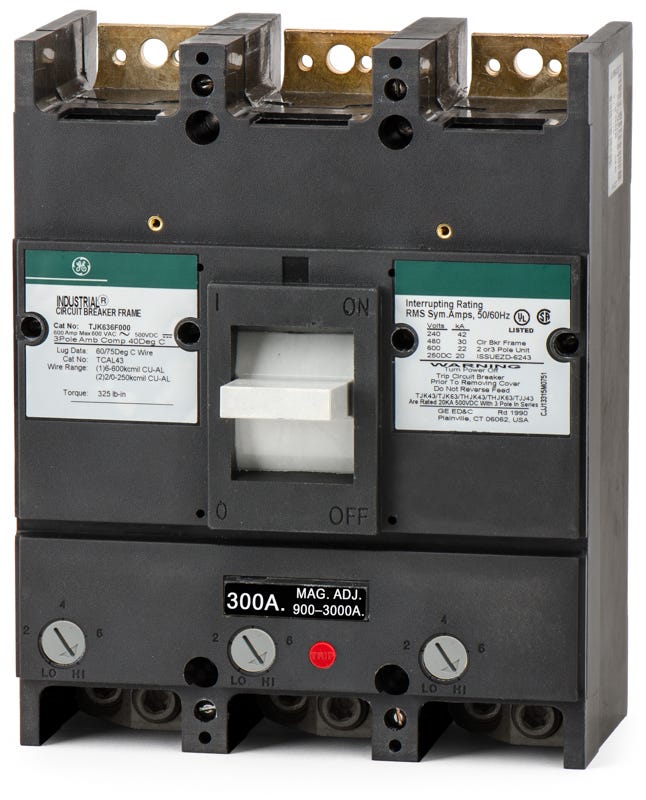

ABB / General Electric TJK636300WL Molded Case Circuit Breaker
- 300A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK636300WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636300WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636300WL - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TJK636300WL - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636300WL |
| Series | TJK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
ABB / General Electric TJK636300WL - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636300WL-R |
| Series | TJK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTJK436350WL
350A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636350WL
350A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636250WL
250A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty power systems, the GE TJK636300WL is a 3-pole, 300A unit mount molded case circuit breaker. It utilizes thermal-magnetic technology for reliable LI circuit protection. This J600 Line breaker is built for standalone enclosures and switchboards. This specific 300A configuration requires lugs to be purchased separately for wire termination. Rated for 30kAIC at 480VAC, it includes an interchangeable trip unit and is HACR rated for commercial HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636300WL-R |
| Series | TJK |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat does the WL suffix in the TJK636300WL catalog number indicate?
The WL suffix designates that this circuit breaker comes factory-equipped with both line and load lugs installed.
How does the trip unit function on this J-frame breaker?
It features a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element, allowing you to fine-tune the instantaneous short-circuit response.
Can the lugs on this breaker accept multiple conductors per phase?
Yes, the standard lugs can accommodate either a single conductor ranging from 6 AWG to 600 kcmil or two conductors ranging from 2/0 AWG to 250 kcmil (copper or aluminum) per terminal.
What type of mounting does the TJK636300WL require?
This is a unit-mount circuit breaker. It is designed to be bolted directly to the mounting pan or bus in compatible GE switchboards, motor control centers, and standalone enclosures.
Is this breaker a direct replacement for older GE J600 models?
Yes, the TJK636300WL belongs to the legacy GE J600 molded case circuit breaker family. It shares the standard 8-1/4 inch W x 3-13/16 inch D x 10-1/8 inch H dimensions, making it a drop-in replacement for existing J-frame spaces.
