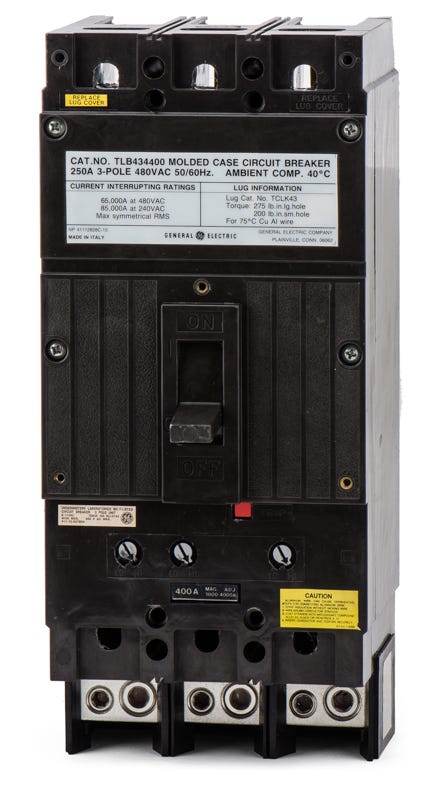

ABB / General Electric TLB434400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
ABB / General Electric
TLB434400
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TLB434400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TLB434400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTLB234225WL
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTLB234200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTLB234150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Part of GE's Tri-Break series, this 400A molded case circuit breaker provides long-time and instantaneous (LI) protection for industrial motor control applications. The unit mount MCCB installs into compatible GE switchboards and motor control centers. Note that this TB frame breaker is replaced by the ABB Tmax XT5, which requires a retrofit kit. Rated 50 kAIC at 480VAC, the TLB434400 features an integrally fused, current-limiting design to minimize fault damage.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TLB434400-R |
| Series | TLB |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC |
| Frame Type | TLB4 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 3/0 AWG - 500 kcmil (Cu/Al) or (2) 250 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Integrally Fused, Current Limiting, Non-Interchangeable Trip, HACR Rated |
Product FAQs
8 answersWhat type of equipment is the TLB434400 compatible with?
This 3-pole breaker is designed for unit-mounting in compatible GE switchboards and motor control centers. It is not intended for use in standard residential load centers.
What wire sizes and materials are accepted by the terminal lugs?
The feed-thru terminals accept either copper or aluminum conductors. You can terminate a single wire ranging from 3/0 AWG to 500 kcmil, or dual 250 kcmil wires per phase.
What are the interrupting capacities for this Tri-Break MCCB?
The integrally fused TLB4 frame provides an interrupting capacity of 65kA at 240VAC and 50kA at 480VAC.
How does the thermal magnetic trip unit operate on this breaker?
The unit features fixed thermal and fixed magnetic settings. It provides non-interchangeable long-time and instantaneous (LI) protection to guard against overloads and short circuits.
Does this breaker come with the necessary connection lugs?
Yes, the TLB434400 comes standard as a feed-thru breaker and includes both line and load lugs installed from the factory.
How is the TLB434400 mounted into an electrical panel?
This is a unit-mount circuit breaker. It bolts directly to the mounting pan or backplate within an enclosure, switchboard, or motor control center, rather than plugging onto a busbar.
What is the current replacement for the legacy GE TLB434400?
The legacy TB frame has been superseded by the ABB Tmax XT5 series. When upgrading to the XT5, a dedicated retrofit kit is required to adapt the physical footprint and bus connections.
How does the current-limiting design improve system protection?
The Tri-Break series utilizes an integrally fused design to heavily restrict the let-through fault current. This significantly minimizes the thermal and magnetic stress on downstream electrical components during a severe short circuit.
