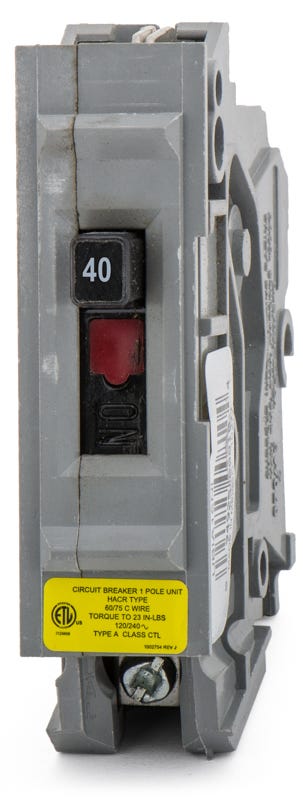

Wadsworth A40NI Miniature Circuit Breaker
- 40A
- 1 Pole
- Plug-On
Wadsworth
A40NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A40NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A40NI - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Wadsworth A40NI - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A40NI |
| Series | A |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Wadsworth A40NI - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A40NI-R |
| Series | A |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
60A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Legacy panelboards require precise physical dimensions to maintain safe busbar connections. This single-pole 40A breaker slides into Wadsworth Type A load centers, offering an exact match for aging infrastructure. Delivering standard 10kAIC interrupting capacity at 120VAC, the thermal-magnetic trip mechanism responds accurately to overcurrent events. It features box lug terminals accepting 14-4 AWG wire, making it ideal for residential upgrades.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A40NI |
| Series | A |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
4 answersWhich load centers are compatible with the A40NI circuit breaker?
This breaker features a proprietary plug-in design exclusively for use in legacy Wadsworth Type A load centers. It will not fit modern panels from brands like Square D, Siemens, or Eaton.
Is there a modern replacement for the Wadsworth A40NI?
Yes. Connecticut Electric manufactures a direct aftermarket replacement under the catalog number UBIA40NI. These replacements are ETL listed to UL 489 standards and fit the same Wadsworth Type A panels.
Are Wadsworth circuit breakers still being manufactured?
No. Wadsworth is an obsolete brand and no longer manufactures new equipment. Electricians must source original legacy stock or use certified aftermarket replacements like the Connecticut Electric UBIA series.
What should be inspected before installing a replacement breaker in a Wadsworth panel?
Because Wadsworth load centers are obsolete, electricians should carefully inspect the panel busbars for signs of pitting, corrosion, or arcing before installing a replacement breaker to ensure a secure connection and prevent overheating.
