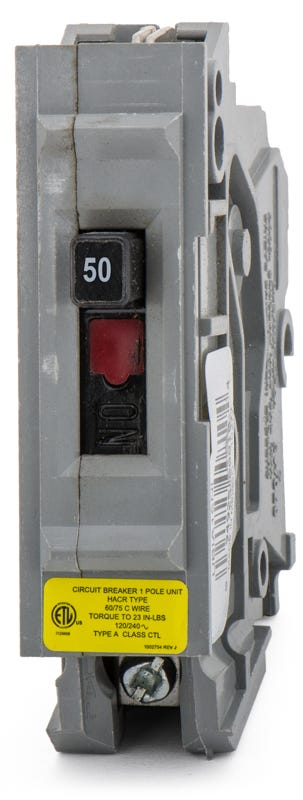

Wadsworth A50NI Miniature Circuit Breaker
- 50A
- 1 Pole
- Plug-On
Wadsworth
A50NI
Miniature Circuit Breaker
Brand
Wadsworth
SKU
A50NI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Wadsworth A50NI - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Wadsworth A50NI - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A50NI |
| Series | A |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Wadsworth A50NI - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Wadsworth |
|---|---|
| Part Number | A50NI-R |
| Series | A |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
40A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Restoring older residential systems requires precise components like this 50A single-pole unit. It provides thermal-magnetic protection for 120VAC circuits. This plug-on breaker installs into Wadsworth Type A load centers, serving as a seamless swap for aging hardware. It offers an exact physical fit and is commonly cross-referenced with the UBIA50NI. Featuring a 10kAIC rating, the non-interchangeable design meets Class CTL standards and is HACR rated for motor loads.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | A50NI |
| Series | A |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich electrical panels are compatible with the A50NI circuit breaker?
This breaker is designed specifically for legacy Wadsworth Type A load centers. It features a proprietary plug-on clip design and will not fit in panels made by other manufacturers.
Is there a modern replacement available for the obsolete Wadsworth A50NI?
Yes. While original Wadsworth breakers are no longer manufactured, Connecticut Electric produces an ETL listed, direct replacement under the catalog number UBIA50NI.
What does the NI designation mean on this Wadsworth breaker?
The NI stands for Non-Interchangeable. This indicates a Class CTL (Circuit Total Limiting) design, which prevents the breaker from being installed in panel slots not designed to accept it, helping to avoid panel overloading.
Can I use the A50NI to supply a 240V load?
No. The A50NI is a single-pole breaker rated for 120VAC circuits only. Supplying a 240V load requires a 2-pole breaker, such as the Wadsworth A250NI, which occupies two spaces in the panel.
How much panel space does the A50NI require?
This single-pole breaker requires one standard 1-inch space in a Wadsworth Type A load center.
Is the A50NI suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration motor loads within its 50A, 120VAC capacity.
