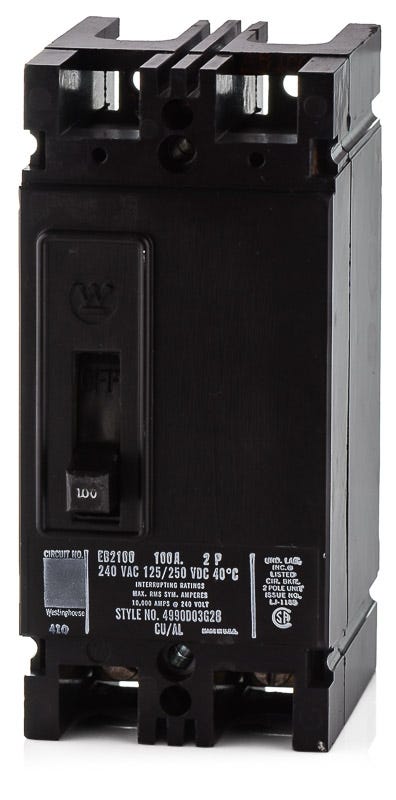

Eaton / Westinghouse EB2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EB2100
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Serving as a direct replacement for aging commercial systems, the Eaton EB2100 is a 2-pole, 100A molded case breaker. It features thermal-magnetic trip technology for reliable protection. This E-frame unit mounts into legacy Westinghouse F-Frame and Eaton Pow-R-Line C panelboards. For modern upgrades, it is officially replaced by the EHD2100. Rated 10kAIC at 240VAC, it includes load side lugs and utilizes AB De-Ion arc extinction to safely interrupt electrical faults.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB2100 |
| Series | EB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards accept the EB2100 circuit breaker?
This legacy E-Frame breaker is designed to bolt directly into classic Westinghouse F-Frame panelboards and Eaton Pow-R-Line C panelboards.
What is the direct modern replacement for the obsolete EB2100?
The Eaton EHD2100 is the official modern cross-reference for the EB2100. It provides the same form factor, mounting style, and electrical ratings for upgrading older systems.
What wire gauge range do the terminals on the EB2100 accommodate?
The standard load side lugs accept either copper or aluminum conductors ranging from 14 AWG to 1/0 AWG.
Is the EB2100 rated for direct current (DC) systems?
Yes, in addition to its 240VAC rating, this breaker is rated for 125/250VDC applications with an interrupting capacity of 5kAIC.
Can the thermal or magnetic trip settings be adjusted on this breaker?
No, the EB2100 features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions.
What arc extinction technology is used in the EB2100?
This breaker utilizes AB De-Ion arc extinction technology to safely clear faults and protect downstream equipment during short circuits.
Does the EB2100 require a mounting kit for panelboard installation?
It features a standard bolt-on connection that fastens directly to the panelboard bus. No specialized mounting kits are required for compatible F-Frame or Pow-R-Line C panels.
