Eaton / Westinghouse EHB1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
EHB1030
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

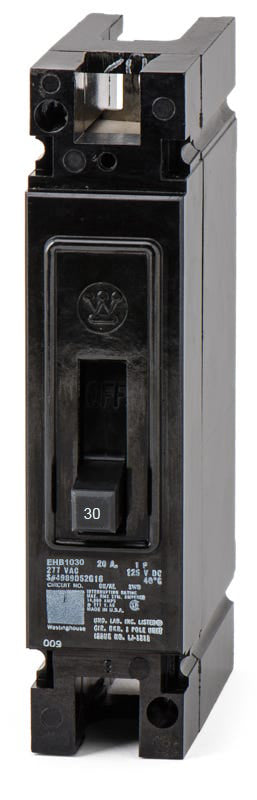

Eaton / Westinghouse EHB1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Rated 14 kAIC at 277VAC, this 30-amp single-pole molded case circuit breaker provides essential thermal-magnetic protection for commercial facilities. The Eaton EHB1030 is a legacy E-Frame unit that mounts into older Westinghouse NEHB panelboards, ensuring a perfect fit without adapters. It serves as an exact replacement for aging infrastructure and is eventually replaced by the F-Frame EHD1030. This breaker includes load side lugs and is fully HACR, HID, and SWD rated.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Series | EHB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse NEHB Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the EHB1030 circuit breaker?
This legacy E-Frame breaker is specifically designed to bolt into older Westinghouse NEHB panelboards. It provides an exact fit for aging infrastructure without the need for mounting adapters.
Are Westinghouse, Cutler-Hammer, and Eaton EHB1030 breakers interchangeable?
Yes. Eaton acquired both Cutler-Hammer and the Westinghouse electrical distribution lines. EHB series breakers may be labeled under any of these three brands, but they share the exact same fit, form, and function for NEHB panelboards.
Is the Westinghouse EHB1030 an obsolete breaker?
Yes, the EHB series is a legacy product line. While the original E-Frame is obsolete, exact-fit replacements are available to maintain existing NEHB panels. For complete panel upgrades, Eaton replaced this series with the F-Frame EHD1030.
What type of wire can be used with the EHB1030 lugs?
The terminals on this breaker are rated for both copper (Cu) and aluminum (Al) conductors, accepting wire sizes from 14 AWG to 10 AWG.
Is the EHB1030 suitable for direct current (DC) circuits?
Yes, in addition to its standard AC ratings, this breaker is certified for use in DC electrical systems up to 125VDC with a 10kA interrupting capacity.
Can I adjust the trip settings on the EHB1030?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and non-adjustable.
