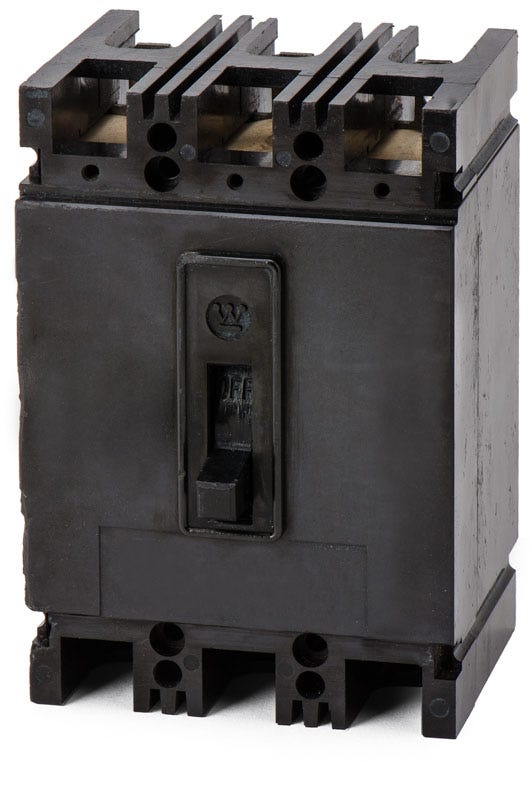

Eaton / Westinghouse FB3040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
FB3040
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
FB3040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse FB3040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed to maintain legacy electrical systems, this 40A molded case circuit breaker delivers reliable long-time and instantaneous trip functions. The 3-pole, 600VAC unit utilizes fixed thermal and magnetic settings to protect commercial networks. It installs seamlessly into classic Westinghouse CDP and FDP panelboards or motor control centers. Facility managers can use this breaker to replace older FDB3040 or FD3040 models.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | FB3040-R |
| Series | FB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, FDP Panelboards, Motor Control Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489, W-C-375b |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | AB De-Ion Technology |
Product FAQs
6 answersWhat panelboards are compatible with the FB3040 circuit breaker?
This bolt-on breaker is designed for use in classic Westinghouse CDP panelboards, FDP panelboards, and motor control centers.
Is the Westinghouse FB3040 circuit breaker still manufactured?
The original FB frame breakers are obsolete. However, they are often replaced by Eaton Series C F-frame breakers, such as the FDB3040 or FD3040, depending on the required interrupting ratings.
Can the FB3040 be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 250VDC, with a maximum interrupting capacity of 10kA at 250VDC. It is suitable for substantially non-inductive DC circuits.
What wire sizes and materials are supported by the FB3040 lugs?
The factory lugs are dual-rated for both copper and aluminum (Cu/Al) conductors. When installing the breaker, ensure you use wire sized between 14 AWG and 2 AWG to maintain a secure connection.
What does the LI trip function code mean on the FB3040?
The LI code indicates that the breaker features Long-Time and Instantaneous trip functions. These fixed thermal and magnetic settings provide standard overload and short-circuit protection without field adjustability.
What safety precautions should be taken when installing the FB3040?
Always de-energize the panelboard or motor control center before installing or removing a bolt-on circuit breaker. Verify that the system voltage does not exceed the breaker's maximum 600VAC or 250VDC ratings to prevent arc flash hazards.
