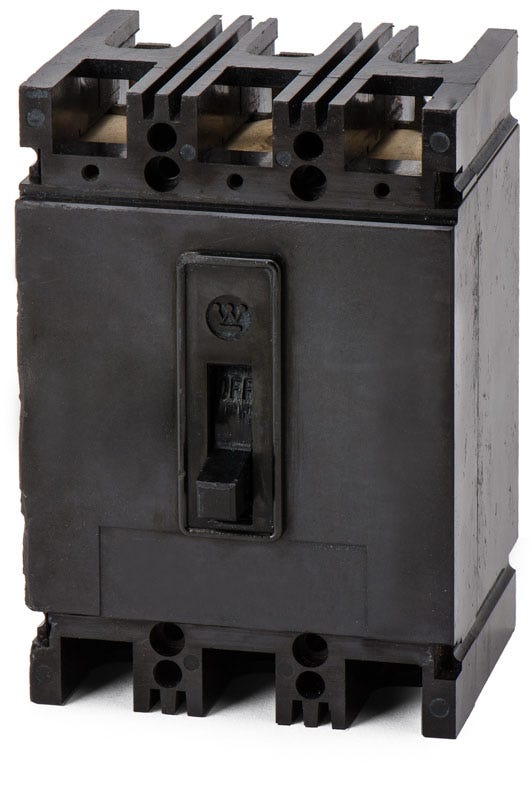

Eaton / Westinghouse FB3025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
FB3025
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
FB3025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse FB3025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Rated 14 kAIC at 480V, this 3-pole Eaton FB3025 circuit breaker ensures continued operation of legacy electrical systems. It features proven AB De-Ion technology and fixed thermal-magnetic trip functions for reliable overcurrent protection. Designed for bolt-on installation, it fits perfectly into older Westinghouse CDP and FDP panelboards or motor control centers. As a direct cross-reference for the FDB3025, it allows facility managers to maintain existing commercial panels easily.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | FB3025-R |
| Series | FB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, FDP Panelboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lug |
| Standards | NEMA AB-1, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | AB De-Ion Technology |
Product FAQs
5 answersWhat equipment is compatible with the FB3025 breaker?
The FB3025 is a bolt-on F-frame breaker designed specifically for legacy Westinghouse CDP and FDP panelboards. It can also be installed in compatible Westinghouse motor control centers.
What is the modern replacement for the obsolete FB3025?
The FB3025 is a legacy component. When upgrading or replacing this unit, panel builders typically cross-reference it to the Eaton Series C FDB3025 or FD3025 molded case circuit breakers, which share the same F-frame footprint.
Is the FB3025 suitable for DC circuits?
Yes, this thermal-magnetic breaker carries a DC rating of 10kA at 250VDC, making it suitable for substantially non-inductive DC applications.
Does the FB3025 feature interchangeable trip units?
No, the FB3025 is built with a fixed thermal-magnetic trip unit. The trip elements are factory sealed and non-interchangeable, meaning the entire breaker must be replaced if different trip characteristics are required.
What are the wire gauge limits for the FB3025 terminals?
The standard lugs accommodate 14 AWG to 1/0 AWG conductors. These terminals are dual-rated for either copper or aluminum wiring.
