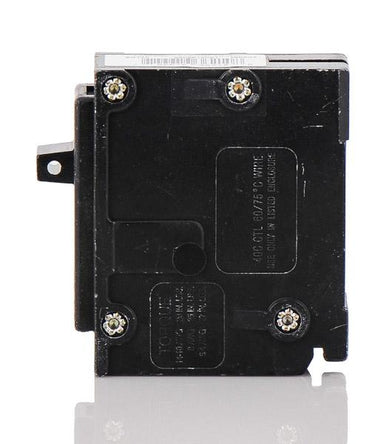

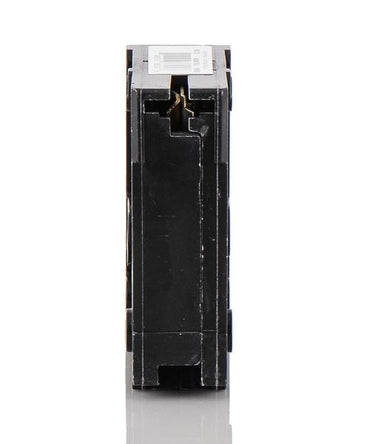

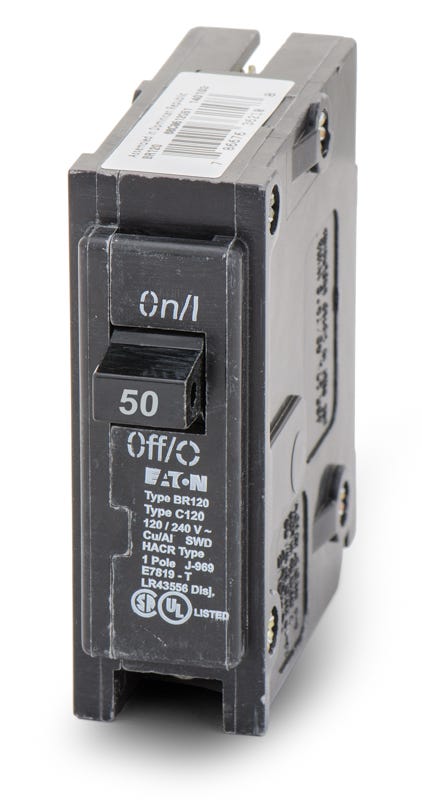

Eaton / Cutler-Hammer BR150 Miniature Circuit Breaker
- 50A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR150
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer BR150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR150 |
| Series | BR |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR150-R |
| Series | BR |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
30A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Built for residential applications, the Eaton BR150 provides 50 amps of reliable overcurrent protection. This single-pole breaker utilizes thermal-magnetic trip technology to safeguard electrical systems against overloads and short circuits. It mounts into standard Eaton Type BR load centers and is backward compatible with legacy Bryant, Challenger, and Westinghouse panels. The plug-on design ensures a secure connection, accepting 14-4 AWG wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR150-R |
| Series | BR |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersCan the Eaton BR150 replace older Challenger or Bryant breakers?
Yes. The Eaton BR150 is the manufacturer-approved, UL-listed replacement for 50A 1-pole breakers in Challenger, Bryant, and Westinghouse load centers. It directly replaces legacy part numbers such as the Challenger C150 and Bryant BR150.
Is this breaker suitable for HVAC equipment?
Yes, the Eaton BR150 is HACR rated. This makes it fully compliant for protecting heating, air conditioning, and refrigeration circuits that require a 50A, 1-pole HACR-designated breaker.
What wire gauge is typically required for this 50-amp breaker?
While the box lugs on the BR150 accept 14 AWG to 4 AWG copper or aluminum wire, a 50-amp circuit generally requires 6 AWG copper or 4 AWG aluminum conductors. Always verify with local electrical codes and the specific temperature rating of your wire insulation.
Can I install the BR150 in a Square D Homeline panel?
No. Although it has a 1-inch plug-on format, the BR150 is exclusively designed for Eaton Type BR, Bryant, Challenger, and Westinghouse load centers. It is not UL-listed or physically compatible with Square D Homeline or QO panels.
Does this breaker include ground fault or arc fault protection?
No. The BR150 is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI or AFCI functionality.
