Eaton / Cutler-Hammer FD1030L - 30A 1 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU FD1030L
4.9
Rated 4.9 out of 5 stars
13 Reviews
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer FD1030L - 30A 1 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU FD1030L
4.9
Rated 4.9 out of 5 stars
13 Reviews
Select Item Condition
Earn 359 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer FD1030L - 30A 1 Pole Molded Case Circuit Breaker

New

$359.60 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

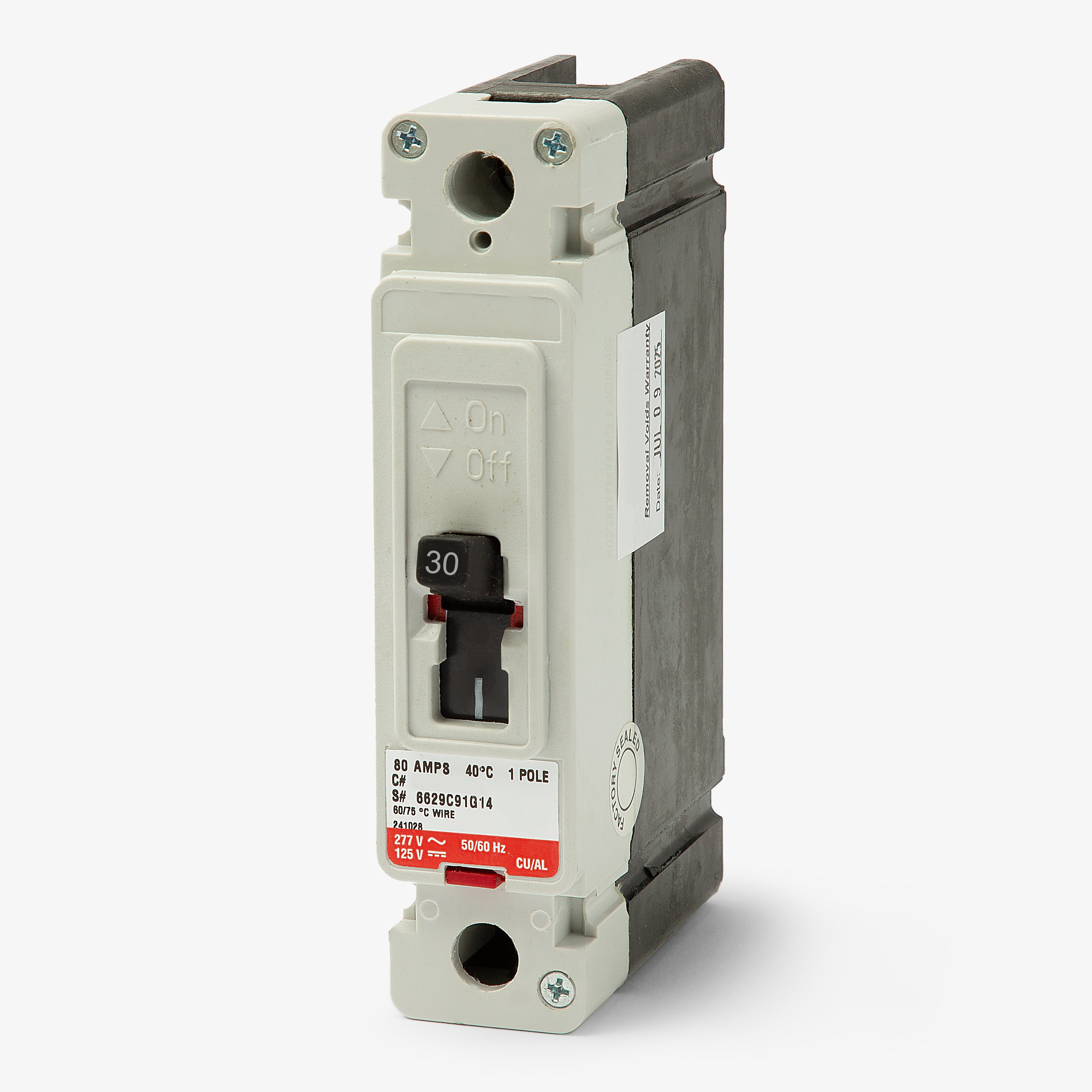

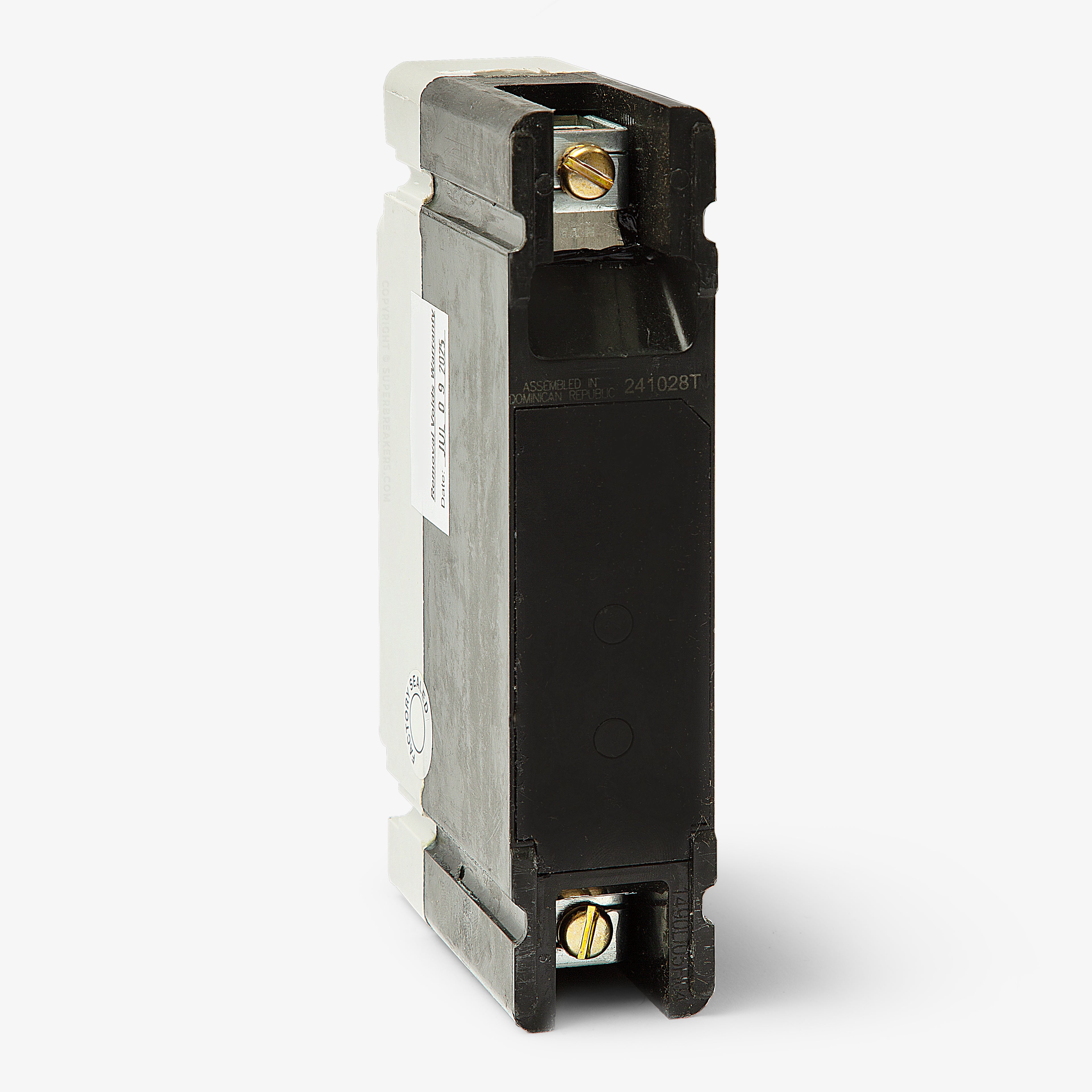

Designed for standalone mounting, the Eaton FD1030L is a 30-amp, single-pole molded case circuit breaker. This Series C F-Frame device provides essential thermal-magnetic protection for industrial environments. Unlike standard bolt-on models, this unit-mount breaker includes both line and load side lugs for flexible feed-thru wiring. It installs into Eaton Series C switchboards, motor control centers, and individual enclosures. The breaker boasts a robust 35kAIC interrupt rating at 277VAC.

Specifications

Brand Eaton / Cutler-Hammer
Series FD
Part Number FD1030L
Amperage 30A
Voltage 277VAC, 125VDC, 347VAC
Poles 1
Phase 1
AIC Rating 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC
Mounting Style Unit Mount

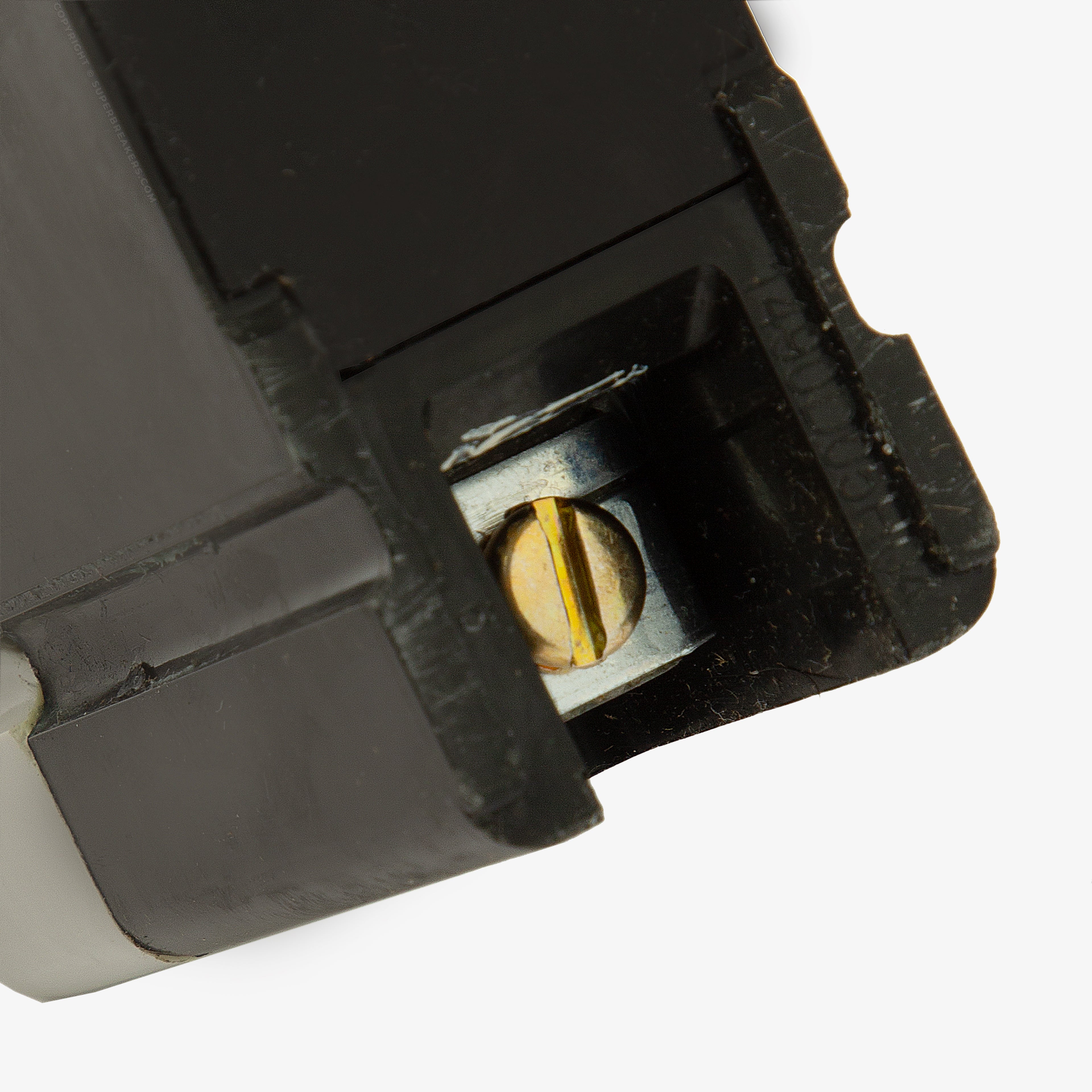

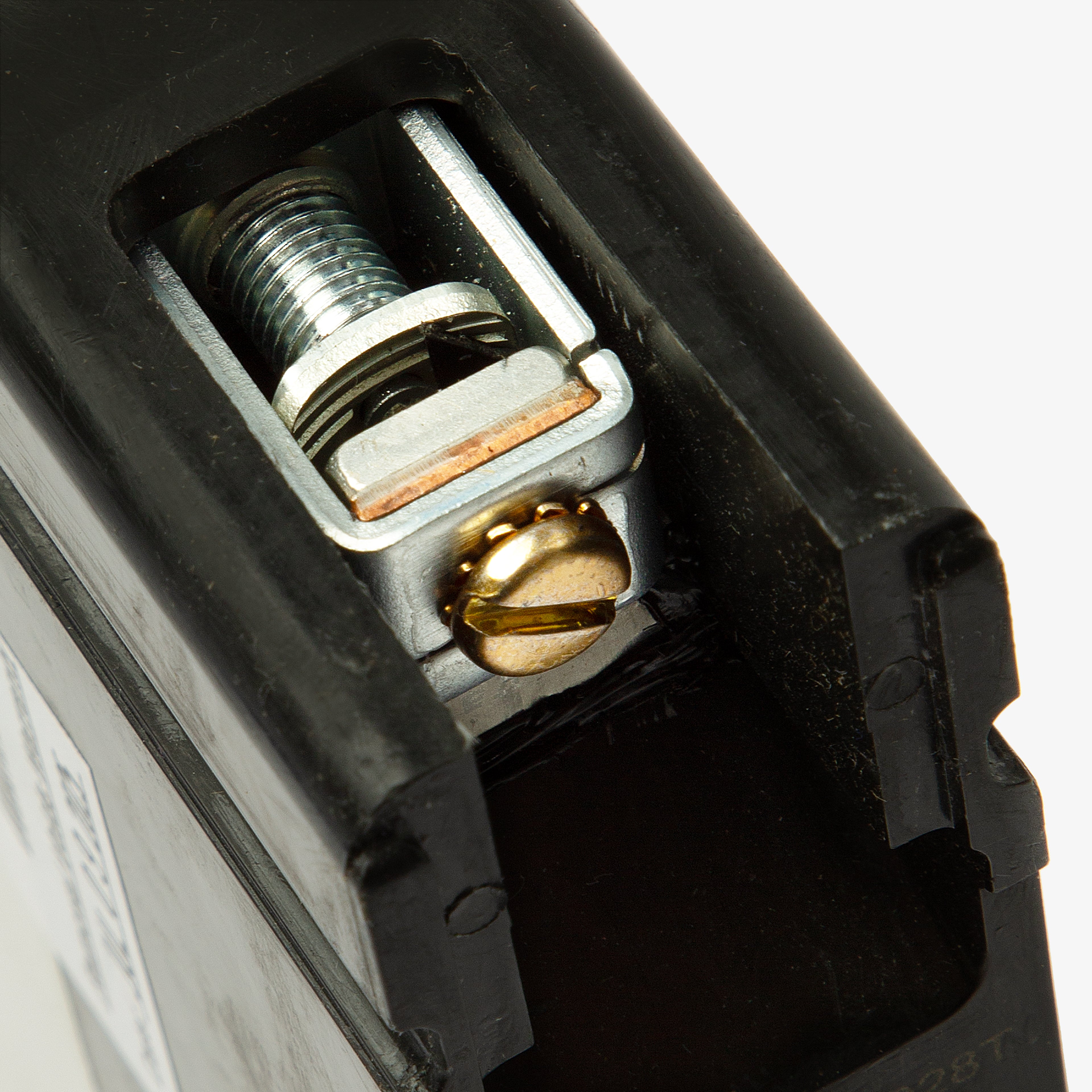

Terminal Type Lugs
For Use With Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Line and Load Lugs
Standards CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip
