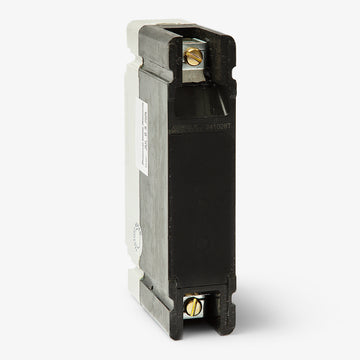

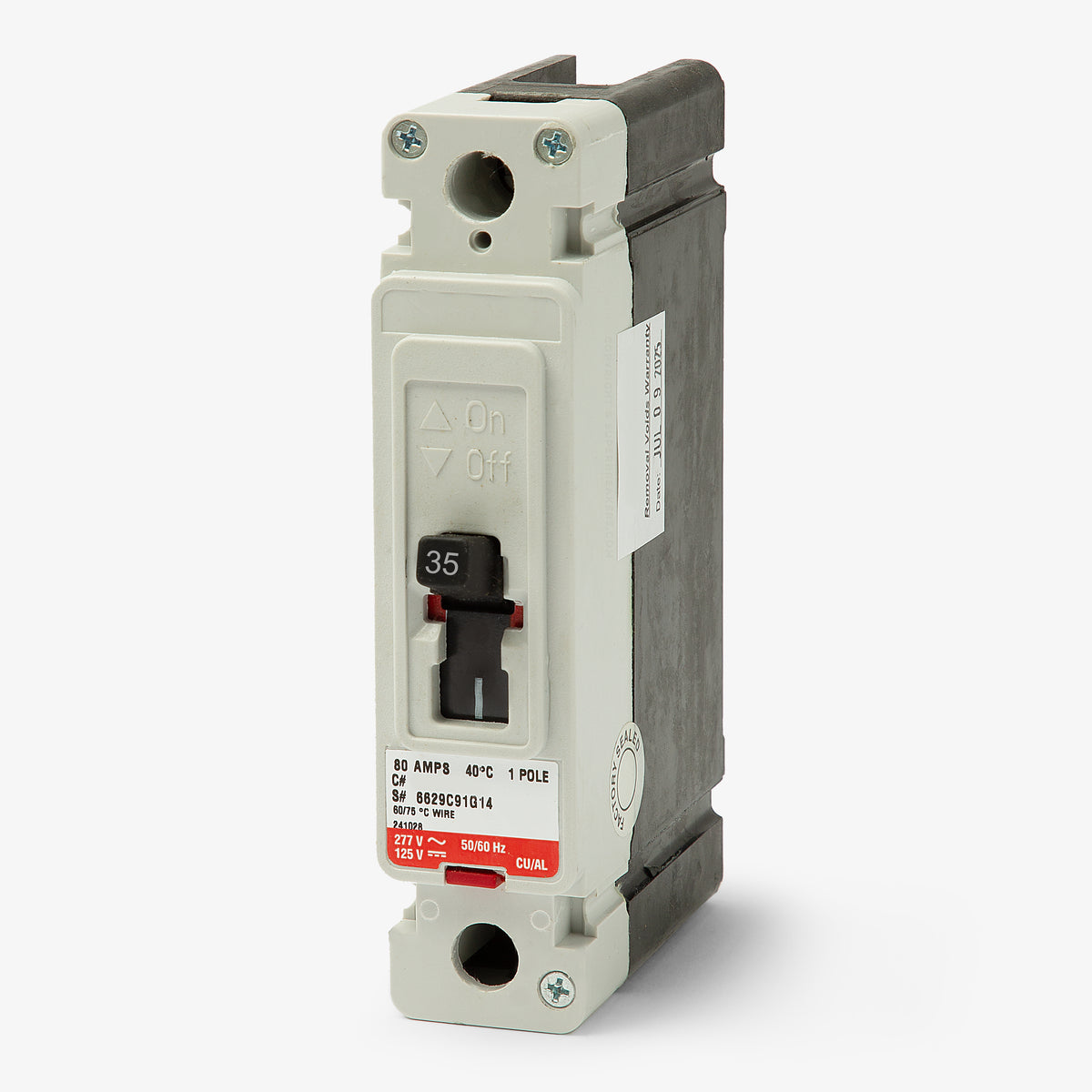

Eaton / Cutler-Hammer FD1035 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD1035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD1035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD1035 - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 35A F-Frame molded case circuit breaker delivers reliable long-time and instantaneous trip functions. It installs into Eaton Series C panelboards and switchboards utilizing a standard bolt-on configuration. This unit serves as a functional equivalent to the HFD1035 and is officially replaced by the newer Power Defense PDG21G0035TFFJ. Featuring a robust 35kAIC interrupt rating at 277VAC, it includes HACR certification for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD1035 |
| Series | FD |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC |
| Frame Type | FD |
|---|---|

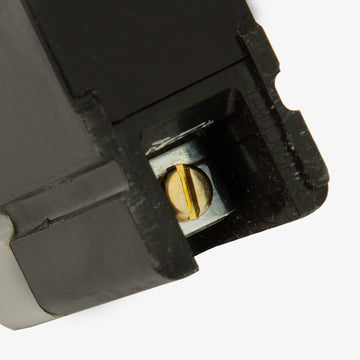

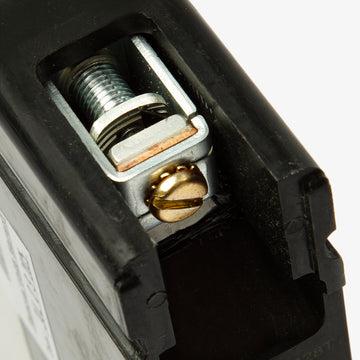

| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the FD1035 circuit breaker?
This F-Frame breaker installs in Eaton Series C panelboards and switchboards designed to accept bolt-on molded case circuit breakers.
Can I use the FD1035 in a standard residential load center?
No, this is a commercial bolt-on breaker for Series C panelboards. It is not compatible with standard residential plug-on load centers like the Eaton BR or CH series.
What is the difference between the FD1035, EHD1035, and FDB1035?
While all three are 35A, 1-pole F-Frame breakers with identical physical dimensions, the FD1035 features a higher interrupting rating of 35kAIC at 277VAC. The EHD1035 and FDB1035 are rated for only 14kAIC at 277VAC.
Is the FD1035 suitable for reverse feed applications?
Yes, standard Eaton F-Frame circuit breakers, including the FD1035, are suitable for reverse feed use.
Is this breaker rated for direct current (DC) systems?
Yes, the FD1035 is rated for up to 125VDC with a 10kAIC interrupting capacity, making it suitable for specific DC control or distribution circuits.
Does the FD1035 carry an HACR rating?
Yes, all Eaton F-Frame circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
