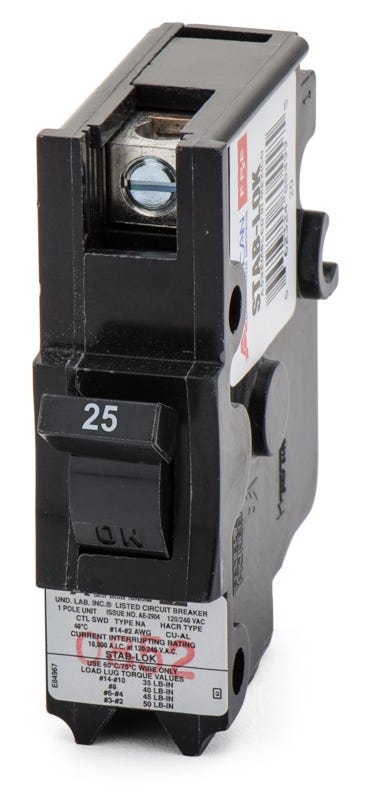

Federal Pacific NA25 Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Federal Pacific
NA25
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NA25
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NA25 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NA25 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA25 |
| Series | NA |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Federal Pacific NA25 - 25A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA25-R |
| Series | NA |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Providing a seamless solution for residential applications, the Federal Pacific NA25 delivers 25A single-pole protection. It is specifically manufactured to support older electrical systems requiring authentic components. This plug-on unit installs into classic Stab-Lok load centers without requiring aftermarket adapters. It serves as a reliable substitute for the UBIF0225N thin series. Featuring proven thermal-magnetic trip technology, it delivers a 10kA interrupting capacity at 120/240VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NA25 |
| Series | NA |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat is the difference between Federal Pacific NA and NC series circuit breakers?
The NA series breakers are the standard thick style, measuring 1 inch wide per pole. The NC series breakers are the thin or half-size style, measuring 1/2 inch wide per pole. The NA25 is a 1-inch wide, single-pole breaker.
Are there known safety concerns with Federal Pacific Stab-Lok panels and breakers?
Yes. Original Federal Pacific Electric (FPE) Stab-Lok panels and breakers have a well-documented history of failing to trip during overcurrent or short-circuit conditions. Many licensed electricians and inspectors strongly recommend replacing the entire FPE panel to ensure facility safety.
Are there modern aftermarket replacements available for the Federal Pacific NA25?
Yes. Connecticut Electric manufactures modern, ETL-listed aftermarket replacement breakers under the UBIF series. These are specifically designed to fit FPE Stab-Lok load centers and provide a safer alternative when a complete panel replacement is not immediately possible.
Can I install the NA25 in a modern load center?
No. The NA25 features a proprietary Stab-Lok plug-on connection that is exclusively compatible with older Federal Pacific Electric load centers. It will not fit in modern panels from brands like Square D, Eaton, or Siemens.
How does the NA25 connect to the panel busbar?
The NA25 utilizes a proprietary Stab-Lok plug-on design. The breaker stabs directly onto the panel busbar, securing the electrical connection without the need for mounting bolts or external fasteners.
