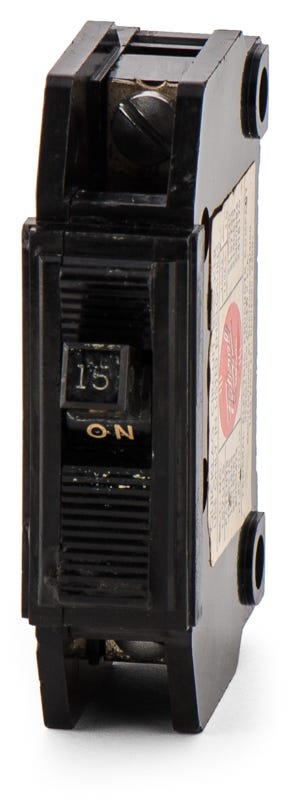

Federal Pacific NQ111015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Federal Pacific
NQ111015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NQ111015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NQ111015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Built to support existing commercial installations, this 15-amp molded case circuit breaker provides dependable overcurrent and short-circuit protection. The single-pole device utilizes fixed thermal and magnetic trip settings for standard branch circuit applications. It bolts into legacy Federal Pacific NQLP and NBLP panelboards. Designed to replace the discontinued NB111015, this unit restores functionality to older distribution systems.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NQ111015-R |
| Series | NQ |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NQLP Panelboards, Federal Pacific NBLP Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
5 answersWhich panelboards accept the Federal Pacific NQ111015 breaker?
This device is specifically designed for use in legacy Federal Pacific NQLP and NBLP panelboards. It bolts directly into these older distribution systems to restore functionality.
What discontinued breaker does the NQ111015 replace?
The NQ111015 serves as a direct replacement for the obsolete Federal Pacific NB111015. Installing this unit allows you to maintain existing enclosures without needing a complete panel retrofit.
How is the NQ111015 installed into the panel?
This is a bolt-on molded case circuit breaker. It fastens securely to the panelboard bus to provide a reliable feed-thru connection for commercial branch circuits.
What wire sizes are supported by the terminal lugs?
The load side lugs on this 15-amp breaker accommodate wire gauges ranging from 14 AWG up to 10 AWG. Ensure proper torque specifications are followed during installation.
How does the trip mechanism operate on the NQ111015?
It features a thermal-magnetic trip unit with fixed long-time and instantaneous settings. This provides standard branch circuit protection against both sustained overloads and sudden short circuits.
