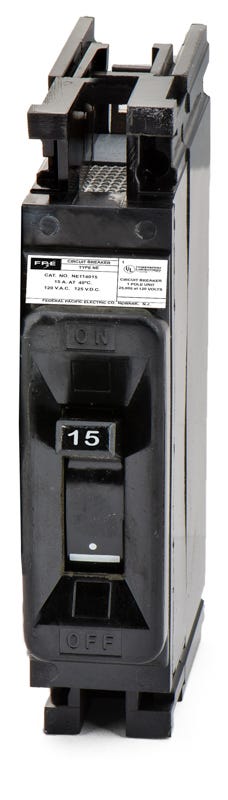

Federal Pacific NE114015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Federal Pacific
NE114015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE114015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE114015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NE114015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE114015-R |
| Series | NE |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Quantity
Federal Pacific NE114015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Similar Items
15A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for legacy Federal Pacific installations, the NE114015 restores reliable power distribution without the need for panel upgrades. This 15A, single-pole molded case circuit breaker is engineered specifically for commercial and industrial applications. It mounts securely into classic NE and NBLP series panelboards using a standard bolt-on connection. Featuring fixed thermal-magnetic trip technology, it delivers dependable long-time and instantaneous protection.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards, NBLP Panelboards |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
5 answersWhich panelboards accept the NE114015 circuit breaker?
This N-Frame breaker is designed exclusively for commercial Federal Pacific NE and NBLP series panelboards. It features a bolt-on connection and is not compatible with residential Stab-Lok load centers.
Is the NE114015 a direct replacement for older Federal Pacific N-Frame breakers?
Yes. The NE114015 serves as a direct drop-in replacement for legacy 15A, 1-pole NE series breakers in existing Federal Pacific commercial infrastructure.
Can the trip curve on the NE114015 be adjusted for specific loads?
No. This breaker features a fixed thermal magnetic trip unit. The long time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
Is the NE114015 rated for use in DC circuits?
Yes. In addition to its 14kAIC rating at 120VAC, this breaker is rated for 10kAIC at 125VDC, making it suitable for specific direct current applications.
Does the NE114015 require a separate mounting kit for installation?
No additional mounting kit is required. It utilizes a standard bolt-on connection to secure directly to the busbar of compatible Federal Pacific panelboards.
