ABB / General Electric TEYH1025B Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYH1025B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYH1025B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

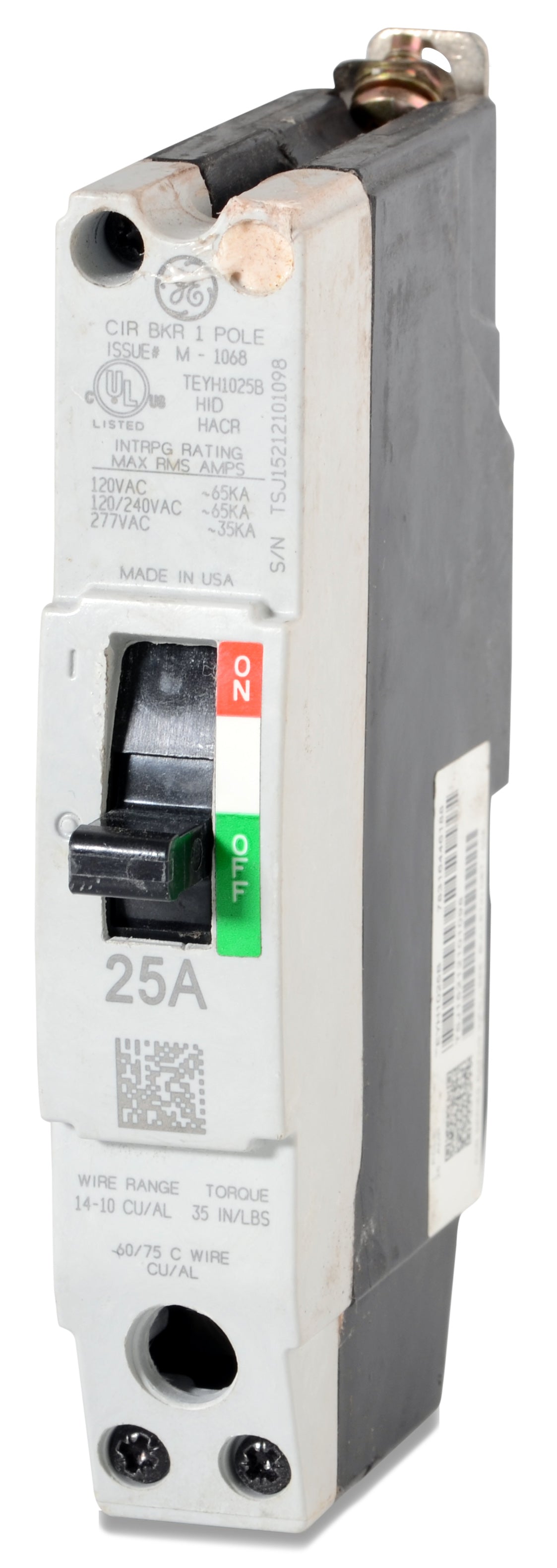

ABB / General Electric TEYH1025B - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYH1035B
35A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH1060B
60A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH3025B
25A 3 Pole Miniature Circuit Breaker
Description
Providing reliable overcurrent defense, the GE TEYH1025B is a 1-pole, 25A miniature circuit breaker. It features a current-limiting design with fixed thermal-magnetic trip units for commercial applications. This unit is engineered to bolt into GE A-Series lighting panelboards. It includes load side lugs that accept 14-10 AWG copper or 12-10 AWG aluminum wire. With a 35kAIC rating at 277V, it includes quick-make/quick-break mechanisms and is fully HID rated for high-intensity discharge lighting.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYH1025B |
| Series | TEYH |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock, Handle Tie, Mounting Base |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TEYH1025B breaker?
This bolt-on breaker is designed specifically for use in GE A-Series lighting panelboards. It mounts directly to the panelboard bus using a secure bolt-on connection.
What is the difference between the standard TEY1025B and the TEYH1025B?
The H in the TEYH1025B part number indicates a higher interrupting rating. While a standard 1-pole TEY breaker is typically rated for 14kAIC at 277VAC, the TEYH series provides a 35kAIC rating at 277VAC for systems requiring higher fault current protection.
What wire sizes are accepted by the terminals on this 25A breaker?
The factory-installed lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire. Always verify the specific torque requirements printed on the side of the breaker before terminating conductors.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Q-Line breakers like the TEYH1025B may arrive with either GE or ABB branding, but they are the exact same form, fit, and function.
Can the TEYH1025B be used in DC applications?
Yes, this thermal magnetic breaker is rated for DC applications up to 125VDC, providing an interrupting capacity of 10kAIC at that voltage.
