ABB / General Electric TEYH1035B Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYH1035B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYH1035B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

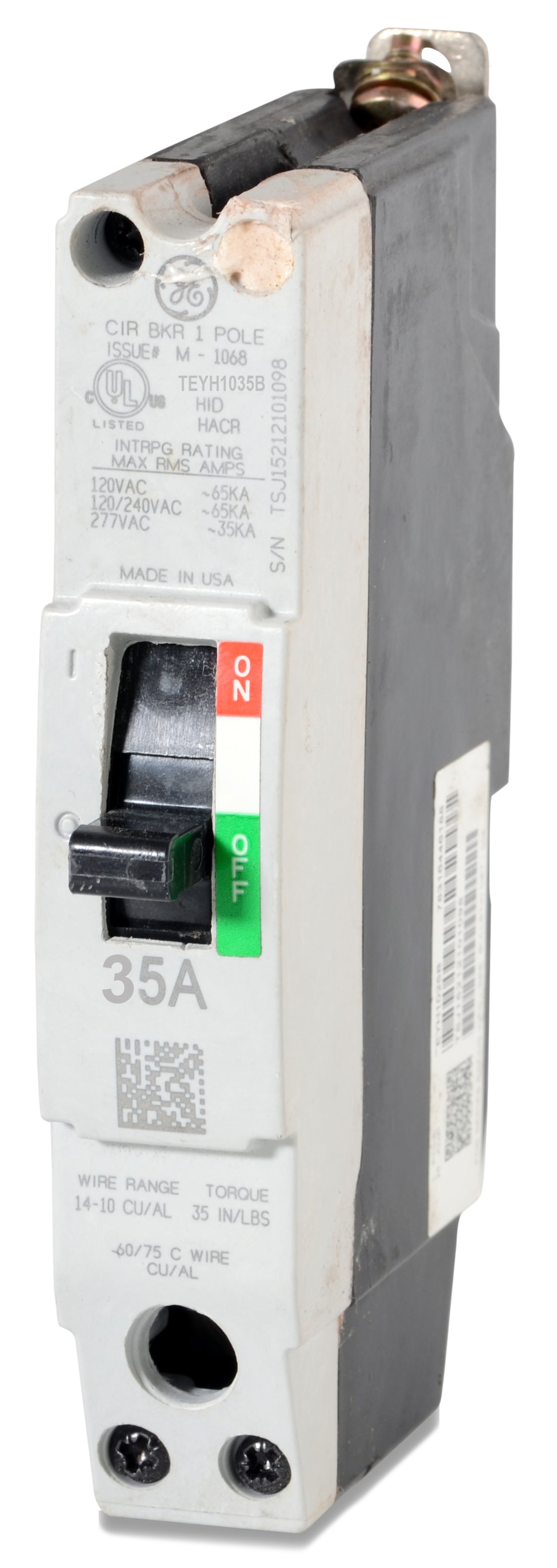

ABB / General Electric TEYH1035B - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYH1060B
60A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTEYH3035B
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYL1035B
35A 1 Pole Miniature Circuit Breaker
Description
Part of the trusted Q-Line series, the 35-amp GE TEYH1035B miniature circuit breaker handles commercial applications with ease. It utilizes fixed thermal and magnetic trip mechanisms to deliver consistent protection. This breaker fits securely into GE A-Series lighting panelboards, where its bolt-on connection provides enhanced mechanical stability. Delivering 65 kAIC at 120VAC and 35 kAIC at 277VAC, it safely interrupts high fault currents and carries both HACR and HID ratings.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYH1035B |
| Series | TEYH |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 277VAC, 10kA @ 125VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Handle Tie, Mounting Base |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TEYH1035B circuit breaker?
This bolt-on breaker is designed specifically for use in GE A-Series lighting panelboards. It mounts directly to the busbar using a bolted connection, ensuring a secure fit in commercial and industrial distribution systems.
What is the difference between the TEY1035B and the TEYH1035B?
The H in the TEYH series designates a higher interrupting capacity. While a standard TEY breaker typically offers 14kAIC at 277VAC, the TEYH1035B provides 35kAIC at 277VAC. It can safely replace a standard TEY1035B in A-Series panels when higher fault current protection is required.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 10 AWG to 4 AWG wire. They are dual-rated for both copper (Cu) and aluminum (Al) conductors. Always verify the specific torque requirements printed on the breaker label before terminating the wire.
Is the TEYH1035B suitable for direct current (DC) systems?
Yes, in addition to standard AC lighting and distribution circuits, this breaker is rated for 125VDC applications with a 10kAIC rating. This makes it suitable for specific control panels or battery-backed circuits requiring a 1-pole breaker.
Are the trip settings adjustable on the TEYH1035B?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (thermal overload) and instantaneous (magnetic short circuit) trip functions are factory set and cannot be modified in the field.
