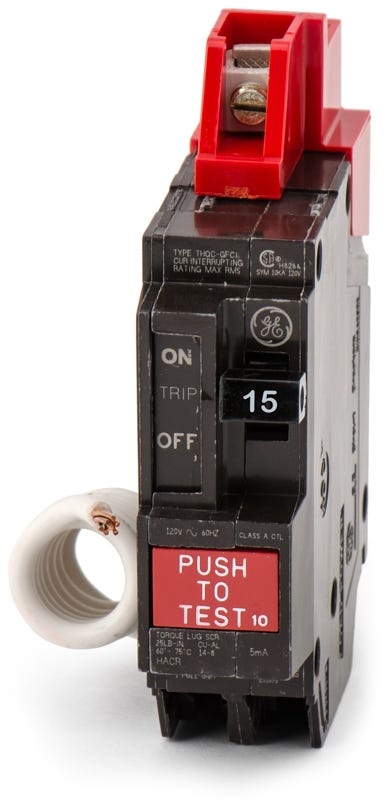

ABB / General Electric THQC1115GF GFCI Molded Case Circuit Breaker
- 15A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1115GF
GFCI Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1115GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1115GF - 15A GFCI Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQC1115GF - 15A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115GF |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric THQC1115GF - 15A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115GF-R |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQC1120GFT
20A GFCI Molded Case Circuit Breaker
ABB / General ElectricTHQC1130GF
30A GFCI Molded Case Circuit Breaker
ABB / General ElectricTHQC1130GFT
30A GFCI Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the GE THQC1115GF delivers reliable 5mA ground fault protection to meet NEC requirements for wet and damp locations. This 1-pole, 15A molded case circuit breaker features a thermal-magnetic trip mechanism to guard against overloads. It mounts onto standard DIN rail systems, making it ideal for OEM panels. Rated at 10 kAIC at 120VAC, this Q-Line breaker includes load side lugs and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1115GF |
| Series | THQC |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
7 answersHow does the THQC1115GF mount inside an enclosure?
It features a plug-in connection designed for DIN rail systems, OEM panels, and control enclosures, rather than standard residential load centers.
Are ABB and GE THQC1115GF breakers the exact same product?
Yes. Following the acquisition of GE Industrial Solutions by ABB, Q-Line breakers may carry either ABB or General Electric branding. They share the exact same specifications, form factor, and THQC catalog number.
How is the neutral connection wired on the THQC1115GF?
This breaker is equipped with a pigtail neutral. The coiled white pigtail wire must be routed and secured directly to the neutral bus bar in your panel for the ground fault circuit interrupter (GFCI) to function correctly.
Does the THQC1115GF accept both copper and aluminum wiring?
Yes, the terminal lugs are dual-rated for both conductor materials. They accept 14 AWG to 8 AWG copper wire and 12 AWG to 8 AWG aluminum wire. Always ensure proper torque is applied to the lugs during installation to prevent arcing.
What specific trip functions does the THQC1115GF provide?
It utilizes a fixed thermal-magnetic trip mechanism with Long-Time (L) and Instantaneous (I) functions for overcurrent and short circuit protection, plus a Ground-Fault (G) function to protect personnel from electrical shock.
What is the ground fault trip threshold for the THQC1115GF?
This GFCI breaker provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault leakage current of 5mA. This meets NEC requirements for personnel protection in wet and damp locations.
Is the THQC1115GF suitable for use with heating and air conditioning equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with compatible heating, air conditioning, and refrigeration equipment that requires a 15A ground fault circuit interrupter.
