Siemens BQD190 Molded Case Circuit Breaker
- 90A
- 1 Pole
- Bolt-On
Siemens
BQD190
Molded Case Circuit Breaker
Brand
Siemens
SKU
BQD190
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

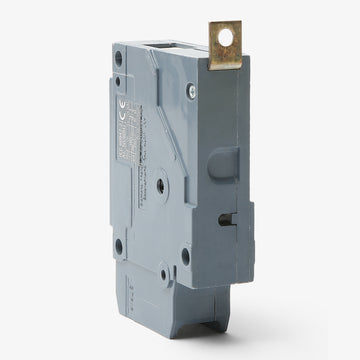

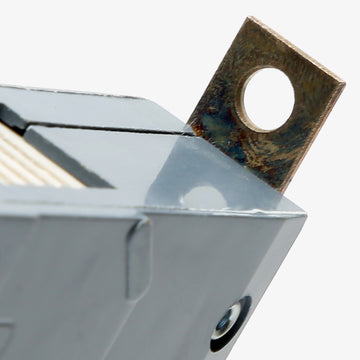

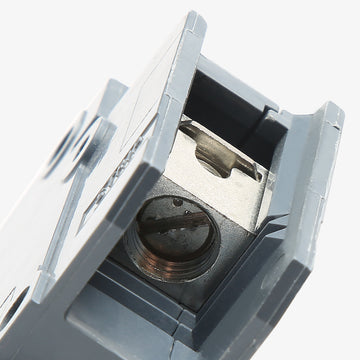

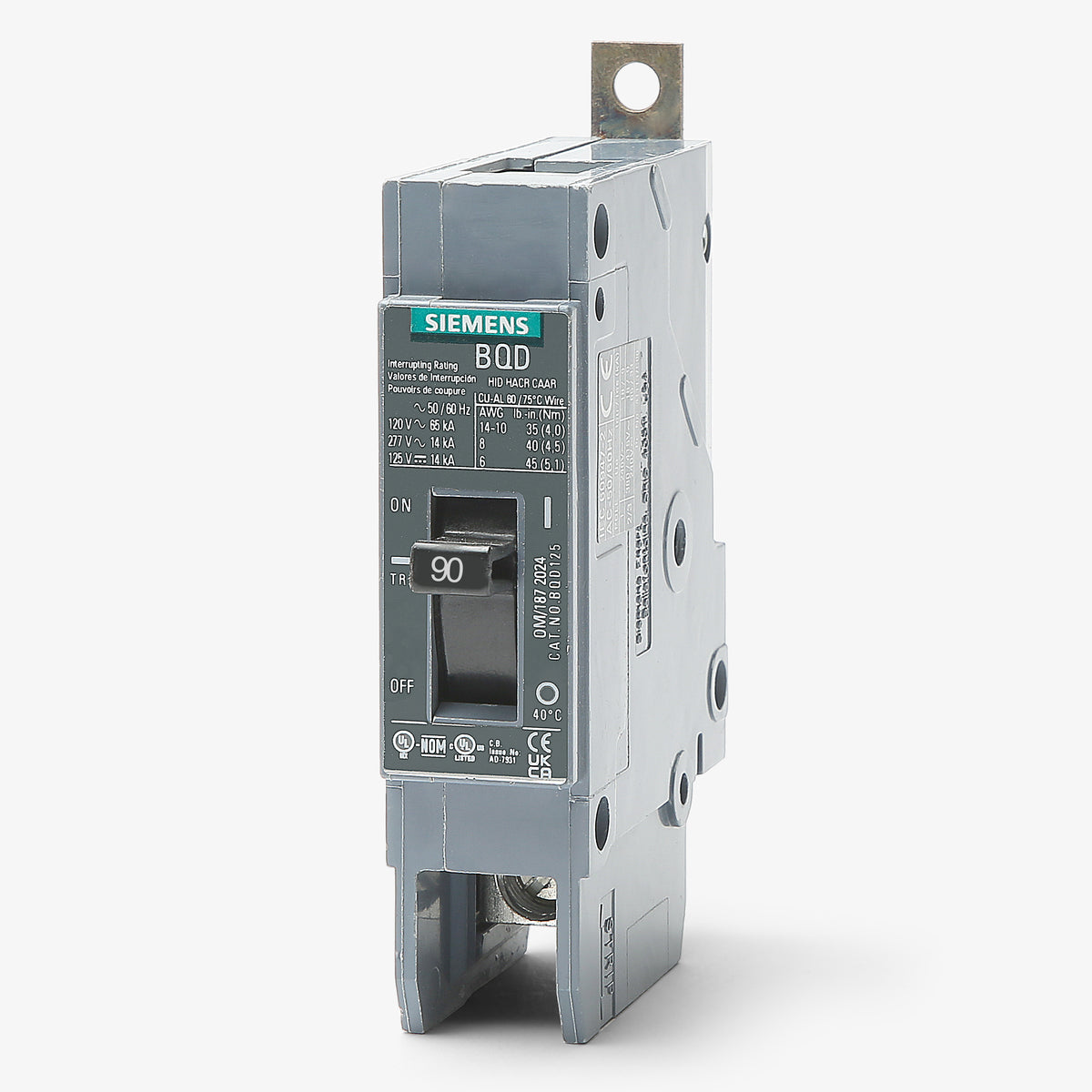

Siemens BQD190 - 90A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Operating within the 100A BQD frame group, the Siemens BQD190 is a 90A, 1-pole molded case circuit breaker optimized for commercial systems. This unit mounts via a sturdy bolt-on connection, making it an exact fit for Siemens P1 through P5 panelboards. It accommodates up to 1/0 AWG wire. The breaker delivers a 14kAIC interrupt rating at 277VAC (65kAIC at 120VAC) and carries a HACR rating for HVAC equipment applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BQD190 |
| Series | BQD |
| Amperage | 90A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | BQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-1 AWG (Cu), 6-1/0 AWG (Al) |
| Max Wire | 1 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 8 AWG (Cu), 6 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the Siemens BQD190 circuit breaker?
The BQD190 is designed for use in Siemens Sentron series panelboards, specifically the P1, P2, P3, P4, and P5 models. Depending on the specific panelboard, additional mounting hardware such as the SBL kit for P4 panels may be required for installation.
Is the Siemens BQD190 suitable for reverse feed applications?
Yes, Siemens BQD series circuit breakers, including the 90A BQD190, are UL Listed for reverse feed applications.
Can the BQD190 be used in DC voltage systems?
Yes, this 1-pole breaker is rated for up to 125VDC with an interrupting capacity of 14kA. This makes it suitable for direct current applications such as control circuits or battery systems.
What is the difference between Siemens BQD and CQD circuit breakers?
While both share the same internal mechanisms and 1-inch pole width, the BQD series is designed to bolt onto the busbars of Siemens panelboards. The CQD series is designed to be independently mounted on a standard DIN rail or bolted directly to a surface.
Is the BQD190 breaker HACR rated?
Yes, all Siemens BQD circuit breakers from 15A to 100A, including the BQD190, carry a Heating, Air Conditioning, and Refrigeration (HACR) rating.
Does the BQD190 carry SWD or HID ratings?
No. While the BQD190 is HACR rated, Switching Duty (SWD) ratings only apply to 15A and 20A BQD breakers, and High Intensity Discharge (HID) ratings are limited to 15A through 50A models.
Can shunt trips or auxiliary switches be added to the BQD190?
No. While shunt trips, auxiliary switches, and alarm switches are available for the BQD frame, these add-on modules mount to the left side of the breaker and are not compatible with single-pole breakers like the BQD190.
