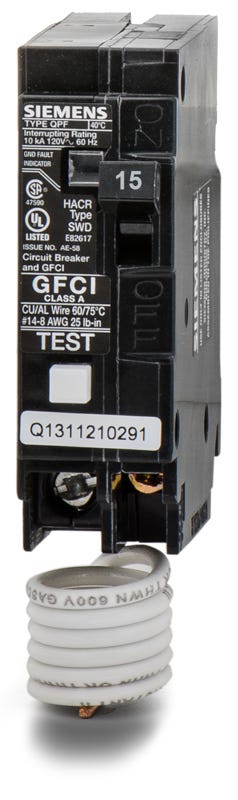

Siemens QF115P GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Siemens
QF115P
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF115P
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF115P - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
Description
Built for modern safety compliance, the QF115P incorporates automatic self-test functionality to continuously verify its ground fault circuitry. This 15-amp, single-pole GFCI breaker provides 5mA Class A protection for 120V applications in wet or damp locations. It mounts into Siemens EQ, PL, and ES series load centers using a standard plug-on connection and pigtail neutral. Serving as a direct upgrade for the legacy QF115, it delivers reliable 10kAIC thermal-magnetic defense against overloads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF115P |
| Series | QF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens EQ, EQL, SEQ, EQG, PL, ES Series Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Self-Test |
Product FAQs
6 answersWhich load centers are compatible with the Siemens QF115P GFCI breaker?
The QF115P is designed for use in Siemens EQ, EQL, SEQ, EQG, PL, and ES series load centers that accept plug-in QP family breakers.
Does this breaker require a plug-on neutral load center?
No, the Siemens QF115P features a standard pigtail neutral connection, allowing it to be installed in standard load centers that do not have a plug-on neutral bar.
What wire sizes are accepted by the lugs on the QF115P?
The terminal lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
What type of protection does the QF115P provide?
This thermal-magnetic breaker provides standard overload and short-circuit protection combined with 5mA Class A ground-fault protection for wet or damp locations.
Can the QF115P replace older Siemens 15A GFCI breakers?
Yes, the QF115P serves as a direct replacement for the legacy Siemens QF115, offering updated self-test functionality while maintaining the same physical footprint and pigtail neutral design.
Is this breaker suitable for commercial applications?
Yes, the QF115P is HACR rated and suitable for both residential and commercial applications requiring 15A, 120VAC ground-fault protection.
