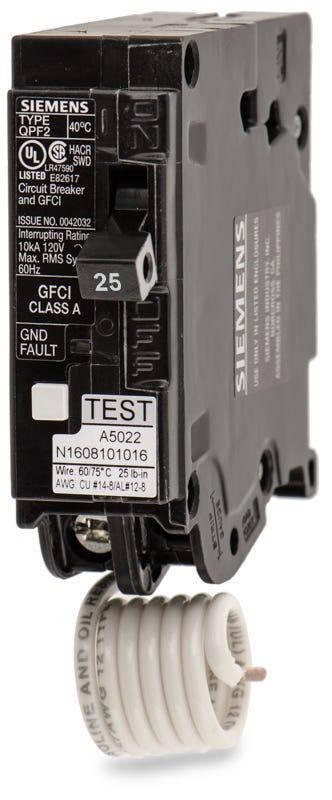

Siemens QF125A GFCI Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Siemens
QF125A
GFCI Miniature Circuit Breaker
Brand
Siemens
SKU
QF125A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QF125A - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the QF125A delivers reliable 5mA Class A ground-fault protection. This 1-pole, 25A miniature circuit breaker provides thermal-magnetic tripping and includes a pigtail neutral wire for straightforward wiring. It mounts into Siemens EQ, ES, PL, and Ultimate load centers. Featuring a 10kAIC rating at 120VAC, this HACR-rated unit incorporates an automatic self-test function to ensure continuous safety compliance with NEC requirements.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QF125A |
| Series | QF |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens EQ, ES, PL, Ultimate Load Centers |
| Wire Gauge | 14-10 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 10 AWG (Cu), 8 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test |
Product FAQs
7 answersWhat load centers are compatible with the QF125A?
This breaker mounts into Siemens EQ, ES, PL, and Ultimate load centers. It is also backward compatible with legacy ITE EQ series panels.
What level of ground fault protection does the QF125A provide?
It provides Class A ground fault protection, which trips when a ground fault of 5mA is detected. This meets NEC requirements for personnel protection.
How is the neutral connection wired on this breaker?
The QF125A features a pigtail neutral wire. The pigtail must be connected directly to the neutral bus bar in the load center to ensure the GFCI circuitry functions correctly.
Does this breaker include a self-test feature?
Yes, modern Siemens QF series GFCI breakers include an automatic self-test and lockout feature to ensure continuous safety compliance with UL 943 standards.
Can I use this 1-pole GFCI breaker for a multi-wire branch circuit?
No. As a 1-pole GFCI breaker, it is designed for single 120V circuits. Multi-wire branch circuits sharing a neutral require a 2-pole GFCI breaker to function without nuisance tripping.
Is the QF125A HACR rated?
Yes, Siemens QP and QF series breakers are HACR rated, making them suitable for use with compatible heating, air conditioning, and refrigeration equipment.
What is the difference between the QF125A and a standard QP breaker?
The QF125A includes Class A 5mA ground fault protection and a pigtail neutral, whereas a standard QP breaker only provides thermal-magnetic overcurrent and short-circuit protection.
