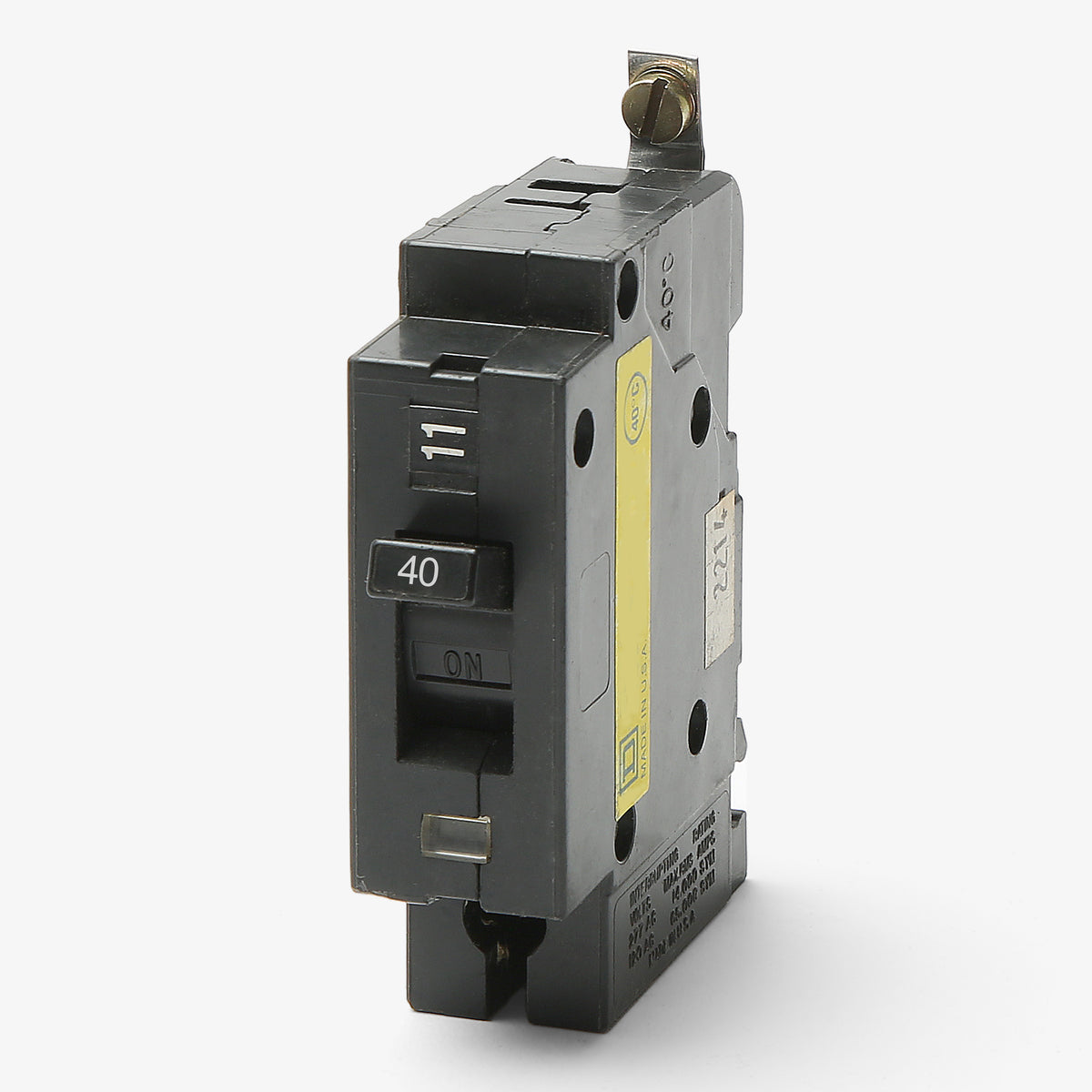

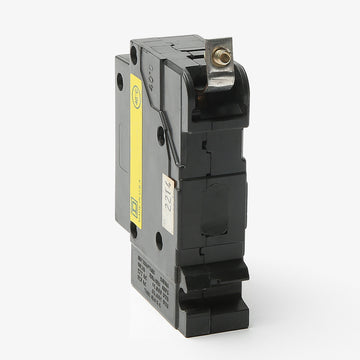

Square D EHB14040 Molded Case Circuit Breaker
- 40A
- 1 Pole

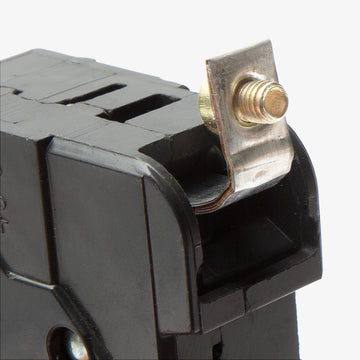

- Bolt-On
Square D
EHB14040
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D EHB14040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14040 |
| Series | EHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Cover Screw Seal (ACS), DIN Rail Adapter (GYR), Padlock Attachment (AHP), Terminal Shields (GYT) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Sold out
Quantity
Square D EHB14040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB14040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Cover Screw Seal (ACS), DIN Rail Adapter (GYR), Padlock Attachment (AHP), Terminal Shields (GYT) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, the Square D EHB14040 is a 40A, 1-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip elements to deliver consistent long-time and instantaneous protection. Designed with a bolt-on mounting style, this breaker fits seamlessly into legacy Square D NEHB panelboards. If a modern replacement is needed, it is superseded by the EDB14040. Delivering a 14 kAIC interrupting rating at 277VAC, it features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14040 |
| Series | EHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Cover Screw Seal (ACS), DIN Rail Adapter (GYR), Padlock Attachment (AHP), Terminal Shields (GYT) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards accept the EHB14040 circuit breaker?
The EHB14040 is a bolt-on breaker designed specifically for legacy Square D NEHB panelboards. It will not fit in newer NF or NQ series panelboards.
Can I substitute an EDB series breaker for the EHB14040 in my existing panel?
No. Although the EDB series replaced the EHB series in Square D's lineup, EDB breakers are built for NF panelboards. They have a different mounting configuration and cannot be installed in older NEHB enclosures.

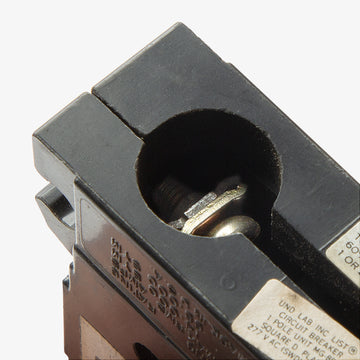

What are the acceptable wire sizes for the EHB14040 lugs?
The terminal lugs accommodate 14 to 2 AWG copper (Cu) conductors or 12 to 2 AWG aluminum (Al) conductors. Ensure connections are torqued to the manufacturer specifications listed on the breaker label.
How does the interrupting rating (AIC) scale with voltage on the EHB14040?
The breaker provides a 65 kAIC rating when applied at 120 VAC, but the interrupting capacity drops to 14 kAIC when used at its maximum rated voltage of 277 VAC. Verify your system's available fault current before installation.
How can I identify if the EHB14040 has tripped in a crowded panelboard?
The breaker is equipped with a Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit event, a highly visible red indicator appears in the window to help quickly locate the faulted circuit.
Is the EHB14040 suitable for 277V commercial lighting loads?
Yes. As a 1-pole breaker rated for 277 VAC, it is frequently utilized in commercial and industrial facilities to protect 277V lighting circuits fed from a 480Y/277V system.
